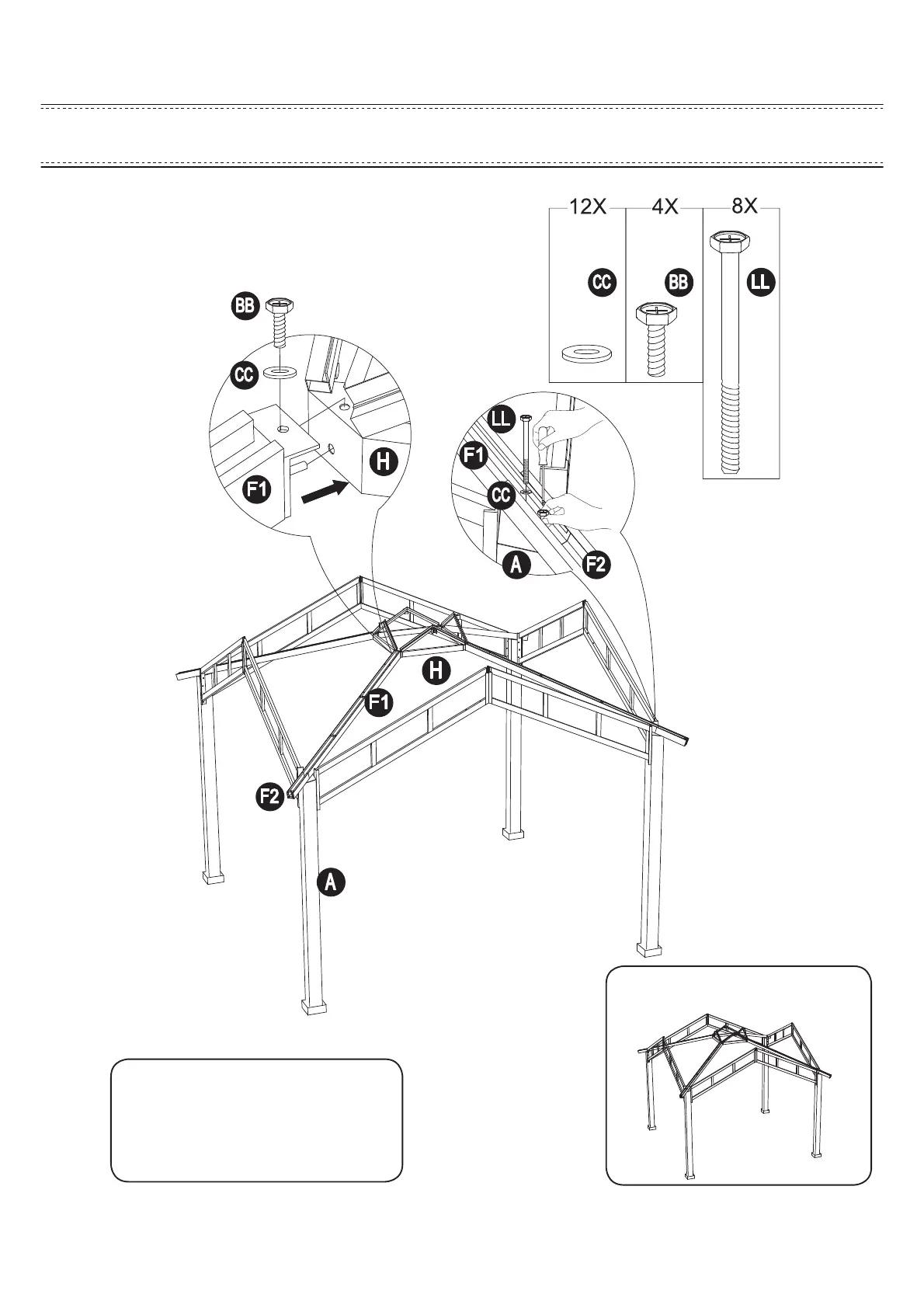

Assembled View:
Secure assembled skew beams (F1/F2) to
post (A) using bolt (LL) and flat washer
(CC). Connect assembled large top frames
(H) to the assembled skew beams (F1/F2)
using bolt (BB) and flat washer (CC),
tighten with wrench (Z1).
