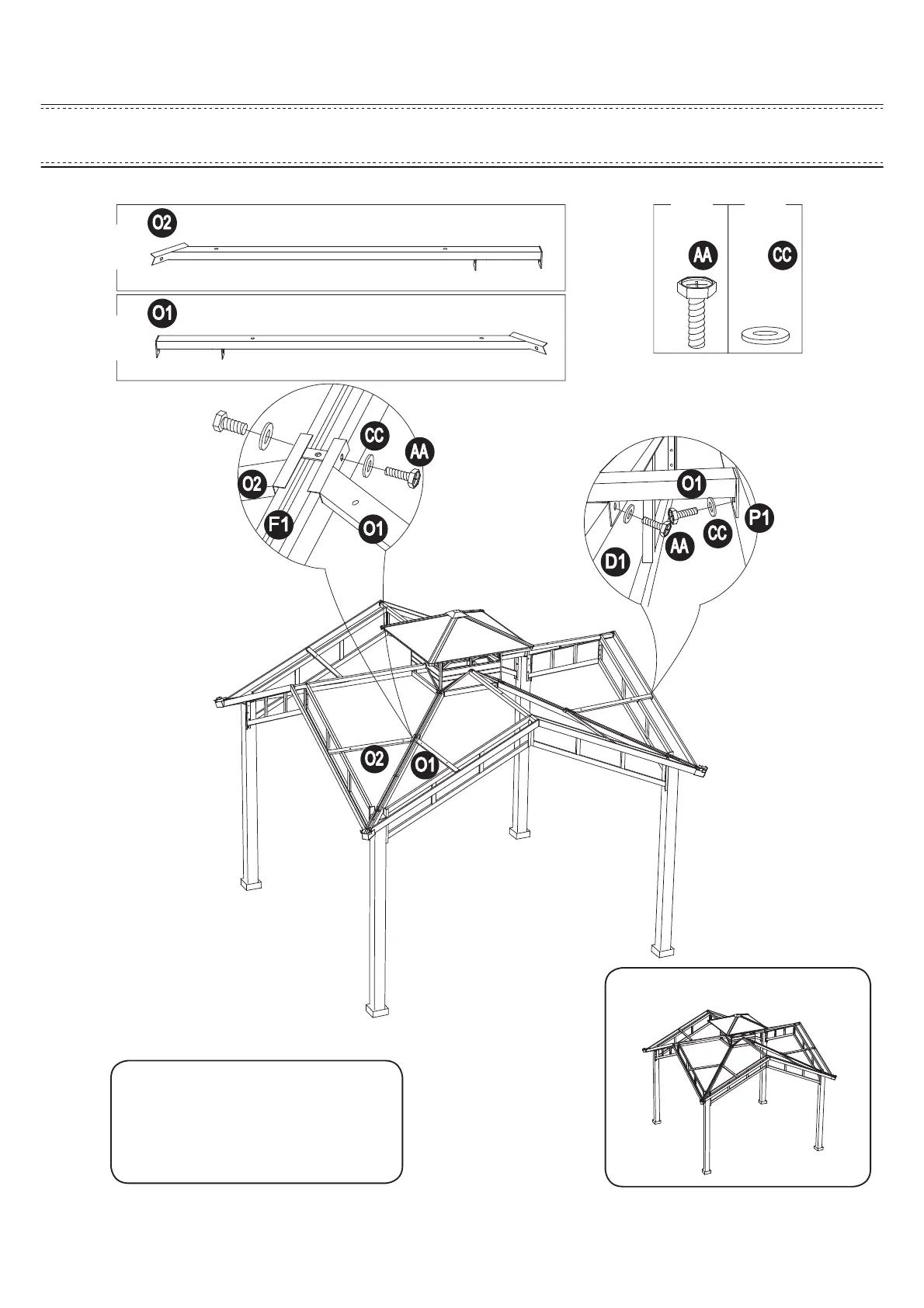

Assembled View:
4X
24X
24X
4X
Secure big roof top beams (O1/O2) to the
top skew beam (F1), assembled beam (D1/
D2) and the lateral trabecula of the greater
roof (P1/P2) using bolt (AA) and flat
washer (CC), tighten with wrench (Z1).
67(3
24/31
