198
FUEL SYSTEM
INTAKE MANIFOLD

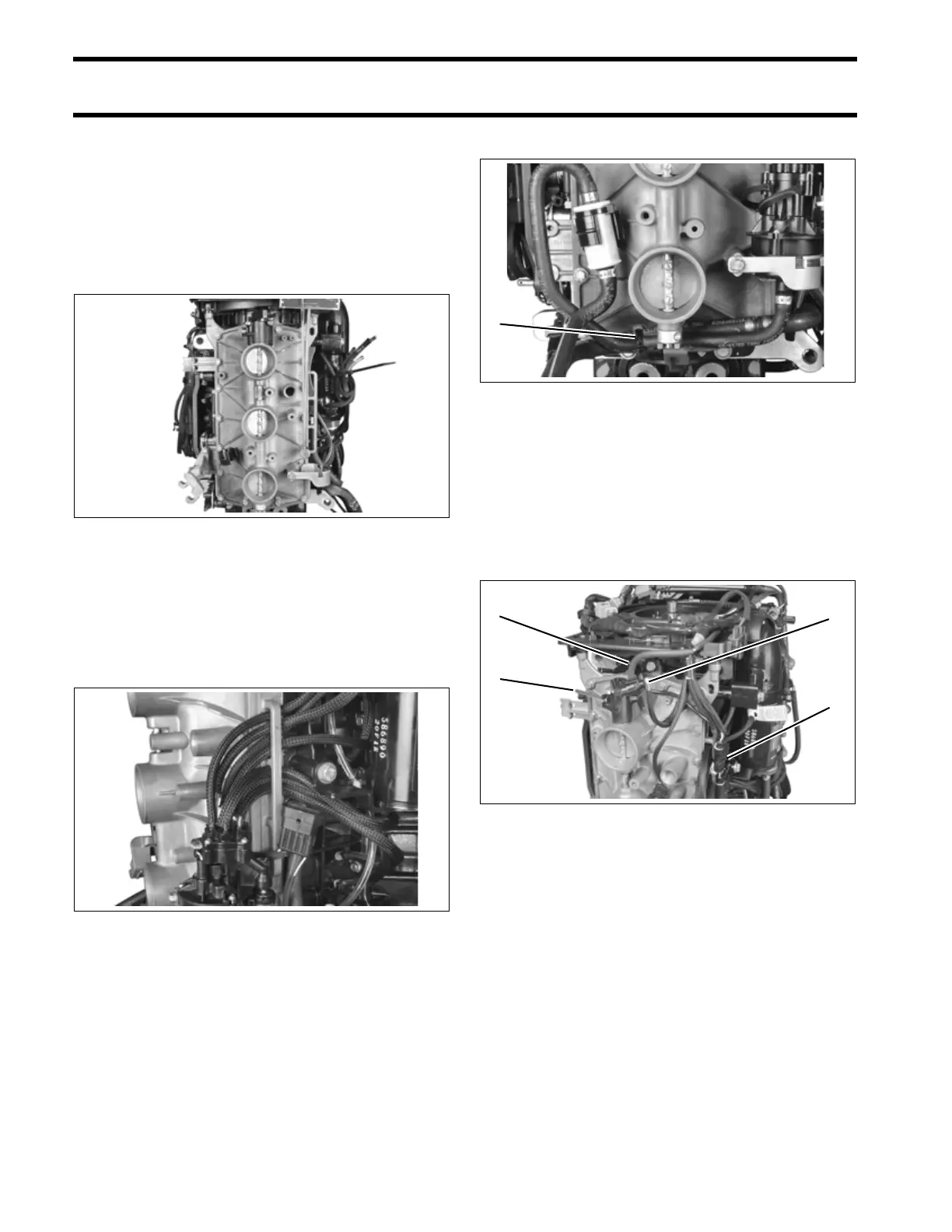

Position gasket on throttle body. Install throttle
body, with oil pump bracket on reed plate and
install screws.
Tighten the center screws first and expand out-
ward. Final torque is 96 to 120 in. lbs. (11 to 13.5
N·m). Tighten small oil pump bracket screw 24 to
36 in. lbs. (3 to 4 N·m).
Install oil pump in bracket and secure with 60.5
mm Oetiker clamp. Route oil distribution hoses
through reed plate bracket and install in oil pump
manifold. Refer to Oil Supply and Distribution
Diagrams – V4 on p. 208 or Oil Supply and Dis-
tribution Diagrams – V6 on p. 206.
Install oil filter and oil and fuel supply hoses.
Install crankshaft position sensor.
Install vapor separator vent hose and oil recircula-
tion hose. Secure with tie straps.
Connect throttle linkage and throttle position sen-
sor connector. Secure connector to reed plate
bracket with tie strap.
Refer to TPS CALIBRATION on p. 159.
005362
005344
1. Tie strap 005343
1. Vapor separator vent hose
2. Throttle linkage
3. TPS electrical connector
4. Tie strap
005361
1
3
4
1
2
