POWERHEAD
DISASSEMBLY
Remove shoulder screw from shift arm and retain-
ing screw from shift rod lever. Slide entire shift
linkage assembly from crankcase.
Remove the throttle body and reed plate assem-
blies. Refer to INTAKE MANIFOLD on p. 196.
Remove pressure valve assembly. Refer to
PRESSURE RELIEF VALVE SERVICING on
p. 233.
Crankcase
Remove crankcase flange screws.
Loosen in stages and remove the main bearing
screws.
Using a 1/8 in. diameter pin punch, push crank-
case taper pin toward intake manifold side.
IMPORTANT: Do not use a tapered punch or
any other tool that could jam in or damage the
taper bore when removing the pin.
Separate crankcase and cylinder block. It may be
necessary to tap on crankshaft with a rawhide or
rubber mallet to loosen.

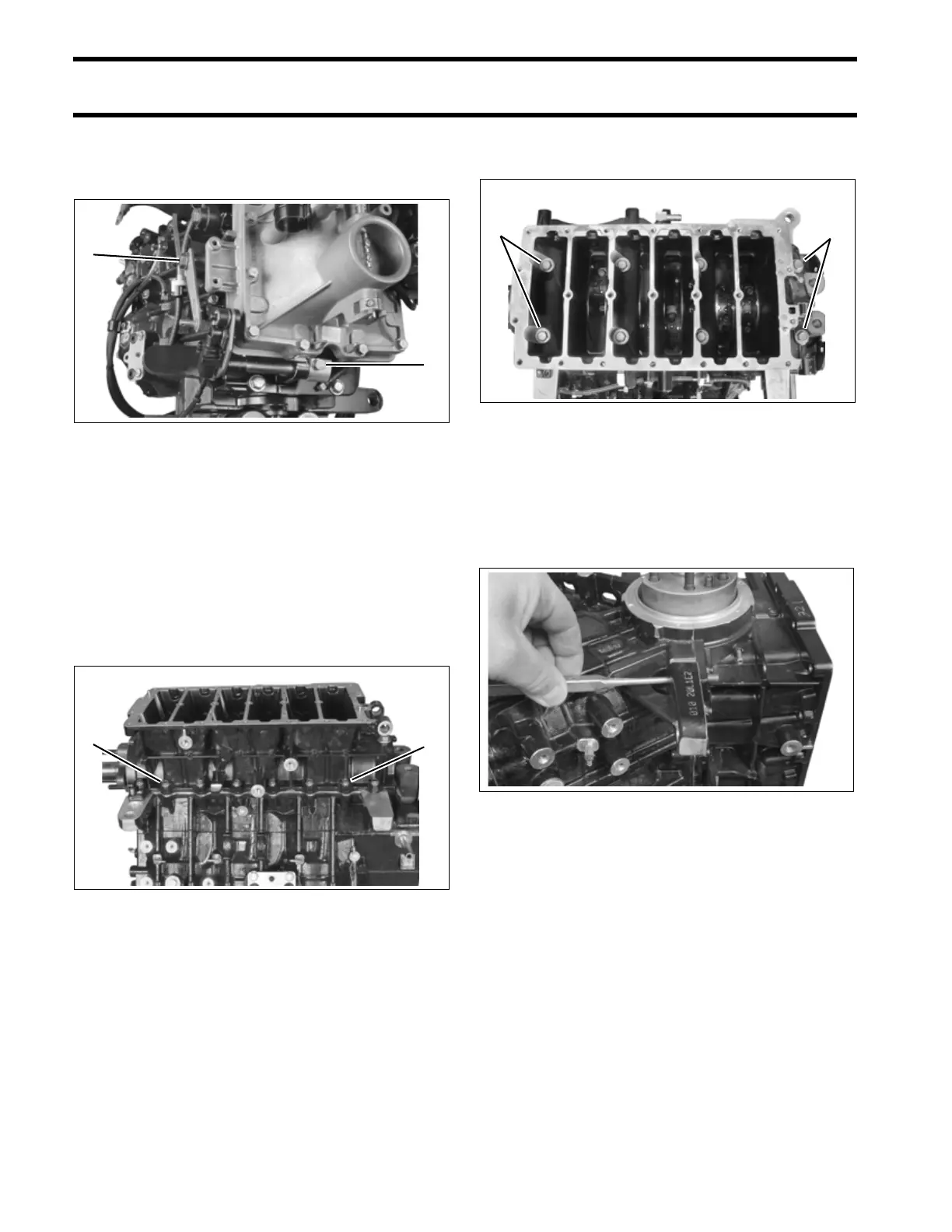

1. Shift arm screw
2. Shift lever screw
005294
1. Flange screws (12 on V4; 16 on V6) 005306
2
1
11
1. Main bearing screws (6 on V4; 8 on V6) 005313
005305
11
