320
GEARCASE
DISASSEMBLY

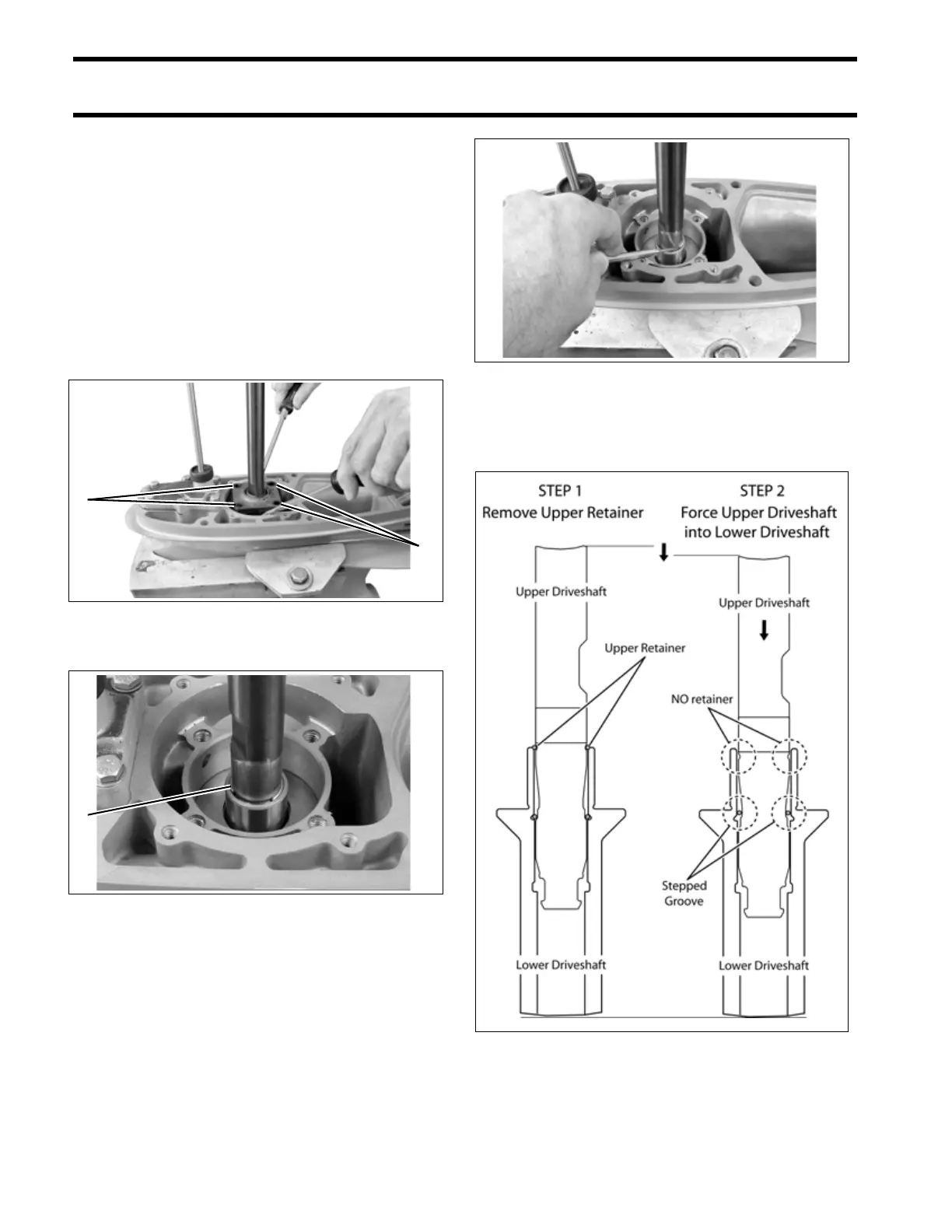

Driveshaft Service
“S2” TYPE GEARCASE
Removal
IMPORTANT: To separate the upper driveshaft
from the lower driveshaft, the upper retainer must
be removed and upper driveshaft must slide down
into lower driveshaft.
Remove the four driveshaft bearing housing
screws with washers and bearing housing.
Remove upper retainer
Force upper driveshaft into lower driveshaft. This
moves lower retainer on stepped groove of lower
driveshaft. Refer to diagram below.
Lift and remove upper driveshaft from lower drive-
shaft.
1. Driveshaft bearing housing screws 005422
1. Retainer 005423
1
1
1
005424
Upper Driveshaft Removal 005411
