259
MIDSECTION
STERN BRACKET, 75 – 90 HP POWER TILT
11

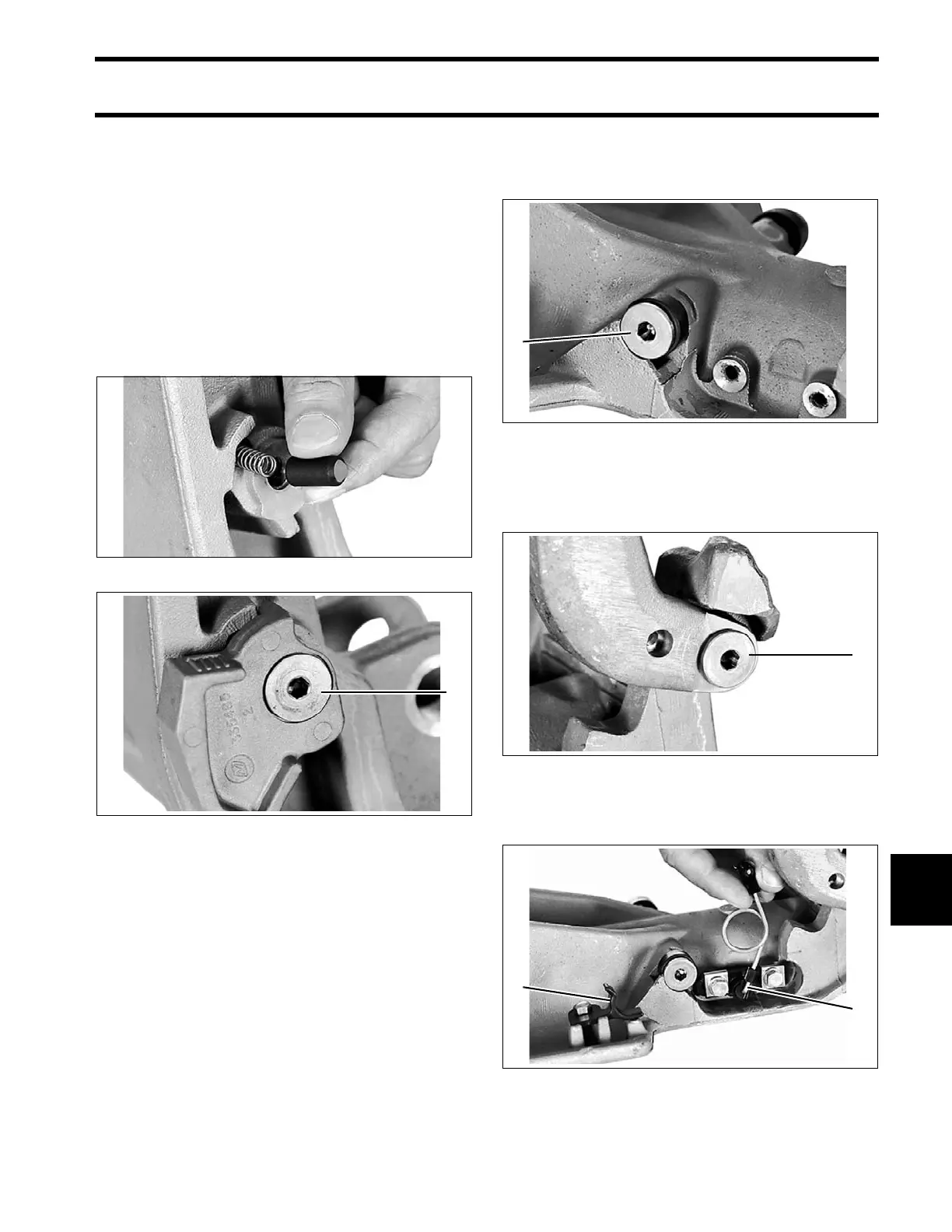

Stern Bracket Assembly
IMPORTANT: Before proceeding, make sure all
components have been thoroughly cleaned.
Replace any seals that have been removed.
Inspect all thrust washers and bushings for evi-
dence of deterioration.
Install the detent roller and spring and the tilt sup-
port with bushing in the swivel bracket. Tighten
bushing to a torque of 28 to 30 ft. lbs. (38 to 41
N·m).
Install the two trim rod rollers on the swivel
bracket. Tighten to a torque of 216 to 240 in. lbs.
(25 to 27 N·m).
Install the trail lock and bushings in the swivel
bracket. Tighten to a torque of 216 to 240 in. lbs.
(25 to 27 N·m).
Install the trail lock spring in the swivel bracket
and connect the spring to the trail lock.
30752
1. Tilt support bushing 30753
1
1. Trim rod roller 30754
1. Trail lock bushing 30755
1. Trail lock spring
2. Trail arm retainer
30756
1
1
1
2
