BRP EVINRUDE E-TEC E40DRLAA Series User Manual

369
MANUAL STARTER
RECOIL STARTER ASSEMBLY
14

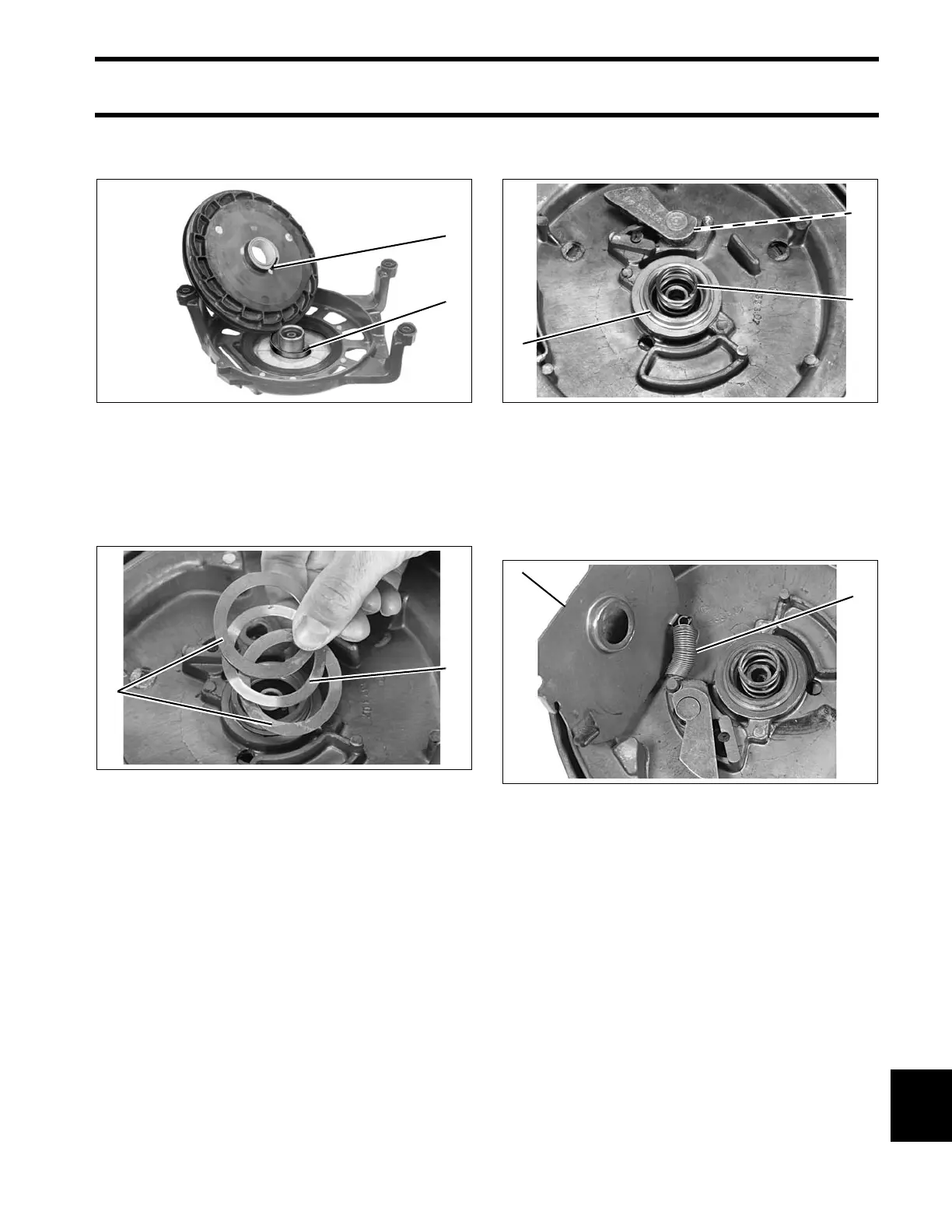

inner loop of the spring in the slot of the pulley,
and install the pulley in the starter housing.
Place the friction plate spring washer between the
two friction plates on the pulley hub. Secure the
friction plate and friction plate spring washer with
the pulley lock ring.
Make sure the starter pawl bushing is installed in
the pulley. Apply Triple-Guard grease or Lubriplate
777 to boss of the starter pawl. Place spring
washer on the boss of the starter pawl. Place the
starter pawl in the pulley.
Place the starter housing spring in the starter
housing.
Install the starter pawl plate return spring on the
starter pawl plate. Press the other end of spring
on the boss of the pulley. Position the starter pawl
plate on the pulley.
Clean threads of the starter pawl plate retaining
screw and nut to remove adhesive.
1. Inside loop
2. Slot
COA1365
1. Friction plate spring washer
2. Friction plates
34854
2
1
1
2
1. Lock ring
2. Spring washer (under starter pawl)
3. Spring
COA1361
1. Spring
2. Plate
46767
2
3
1
1
2
