64.28 in. (1632.7mm) – 20 in. (508mm)
69.28 in. (1759.7mm) – 25 in. (635mm)
35.43 in.
(899.9mm)
26.83 in.
(681.4mm)
36.79 in.
(934.4mm)
21.5 in.
(546.1mm)
66°
40.17 in.
(1020.4mm)
24.22in.
(615.2mm)

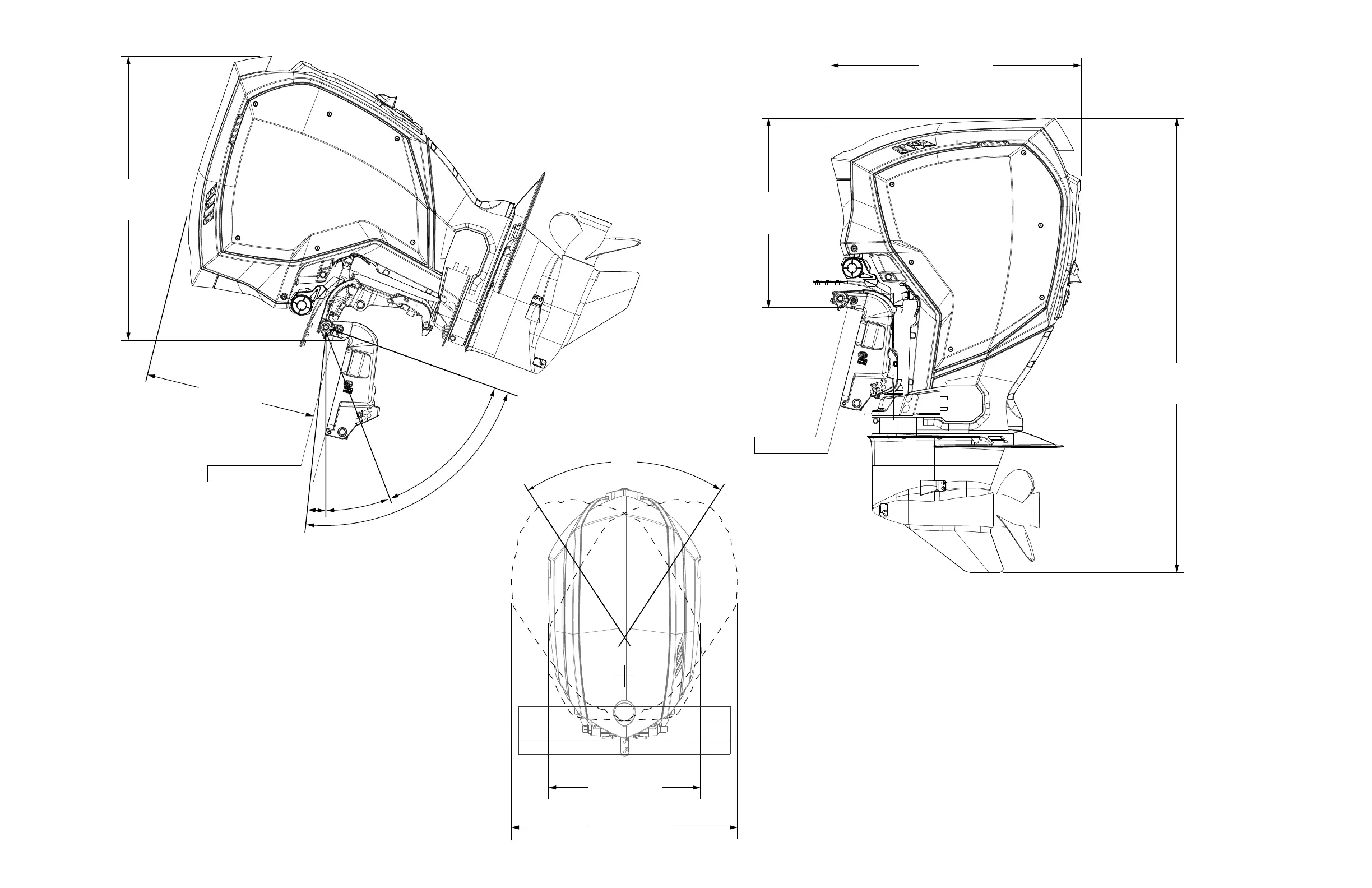

PROFILE DRAWING
Evinrude
®
E-TEC
®
G2
TRAC+ 66° V6, 2.7 L
TRAC + MIDSECTION
Power Trim & Tilt
Total Range: 75°
Total Trim Range: – 6° to 21°
Total Tilt Range: 69°
All measurements based on:
Transom Angle: 14°
Transom Thickness: 2-3/4 in. (68.58 mm) Maximum
GRAPHICAL REPRESENTATION ONLY
All dimensions ± 1/4 in. (6.35 mm)
6°
15°
54°
75°
