EEnnggiinnee MMoonniittoorriinngg
IIMMPPOORRTTAANNTT:: Your outboard must
be equipped with an engine monitor-
ing system such as
Evinrude ICON
Touch
,
ICON
, i-Command™, or other
NMEA 2000
compliant CAN-bus
instruments.
An analog SystemCheck® gauge, or
equivalent may be used. Analog
gauges REQUIRE the installation of a
digital to analog converter.
The engine monitoring system pro-
vides engine operating information
and alerts you of abnormal conditions
that could damage your outboard. The
monitoring system consists of a dash-
mounted display or gauge, a warning
horn, sensors on the engine and oil
tank, and related wiring.
DDiissppllaayyss aanndd GGaauuggeess
Gauges and displays are available in
several styles, such as a
Evinrude
ICON Touch
,
Nautilus 3.5 CS Digital
Display
with digital LCD display or a
basic
SystemCheck
gauge.
0
0
0 0
MPH
% Trim
RPM
% Fuel
FNR
.
.
.
.
.
.
+
-
1
2

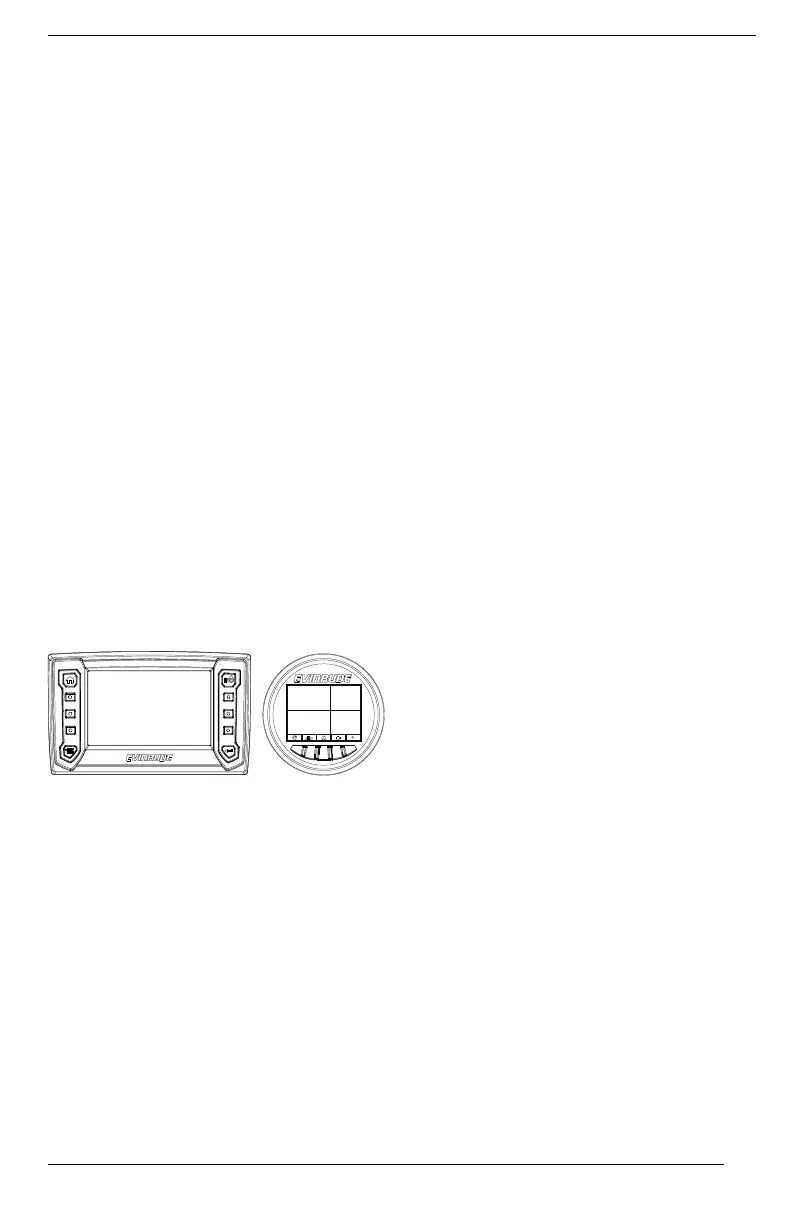

DDIISSPPLLAAYYSS AANNDD GGAAUUGGEESS ((TTYYPPIICCAALL))
1. Evinrude ICON Touch
2. Nautilus 3.5 CS Digital Display
Refer to the display or gauge user’s
guide for operation, warnings, and
monitoring instructions.
SSyysstteemm SSeellff--TTeesstt
During engine start-up, pause with the
key switch in the ON position. Digital
displays and gauges will self test as
follows:
EEvviinnrruuddee IICCOONN TToouucchh
The digital touch screen displays a
“booting” screen, followed by the
Evin-
rude
logo and then the default home
page.
SSyysstteemmCChheecckk
The
SystemCheck
monitor sounds a
beep. The
SystemCheck
gauge indi-
cator lights turn on simultaneously,
then off in sequence.
EEnnggiinnee MMoonniittoorr WWaarrnniinnggss
Engine monitor system warnings acti-
vate the horn and the appropriate
warning indicator for a minimum of 30
seconds, or until the alarm is acknowl-
edged. If the abnormal operating con-
dition continues, the warning indicator
remains ON until the key is turned
OFF or the failure is corrected.
The warning will reoccur at the next
startup if the problem is not corrected.
SSppeeeedd AAddjjuussttiinngg FFaaiillssaaffee
EElleeccttrroonniiccss ((SS..AA..FF..EE..))
If the
EMM
senses a problem could
cause permanent engine damage, it
will limit engine speed to 1200 RPM.
This additional protection feature is re-
ferred to as S.A.F.E.™ (Speed Adjust-
ing Failsafe Electronics).
If the engine was running faster than
1200 RPM when the
S. A. F. E.
mode
activated, it will shake noticeably.
