REMOTE CONTROLS — EVINRUDE/JOHNSON (BRP) CONTROLS
IMPORTANT: When selecting the remote control system for your boat, specify Evinrude components. Evinrude controls
deliver the cable stroke your outboard needs for positive shift and throttle control, and they incorporate such safety and
convenience features as:
• Start-in-gear prevention
• Plug-in compatibility with Evinrude Modular Wiring System (MWS)

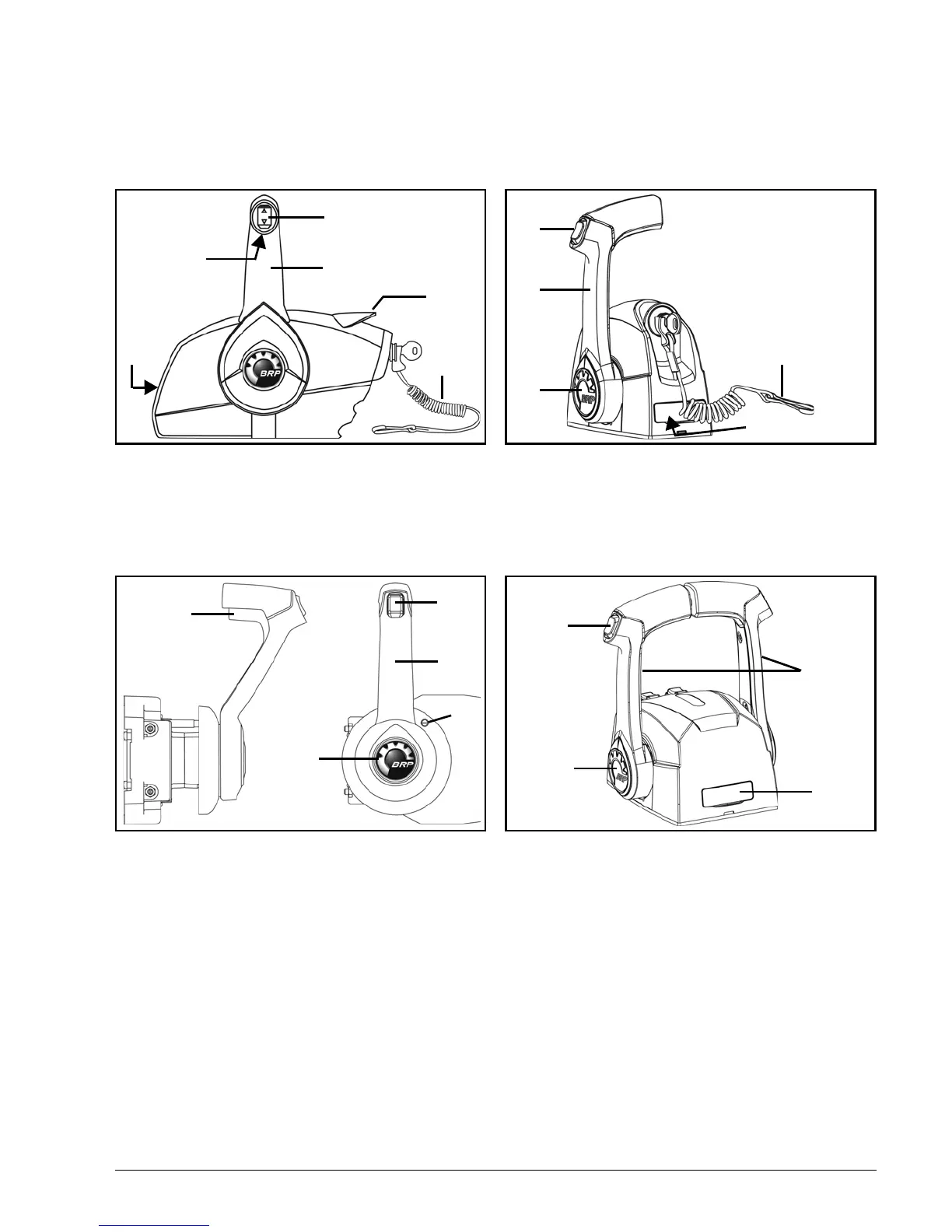

Side Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle lever (warm-up)
5. Throttle friction adjusting screw
6. Emergency stop clip and lanyard
Concealed Side Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle button (warm-up)
5. Throttle friction adjusting screw
Single Lever Binnacle Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
5. Emergency stop clip and lanyard
Dual Lever Binnacle Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
5
1
4
6
3
2
5
1
2
3
4
3
2
4
1
5
1
2
3
4
