X OPERATION

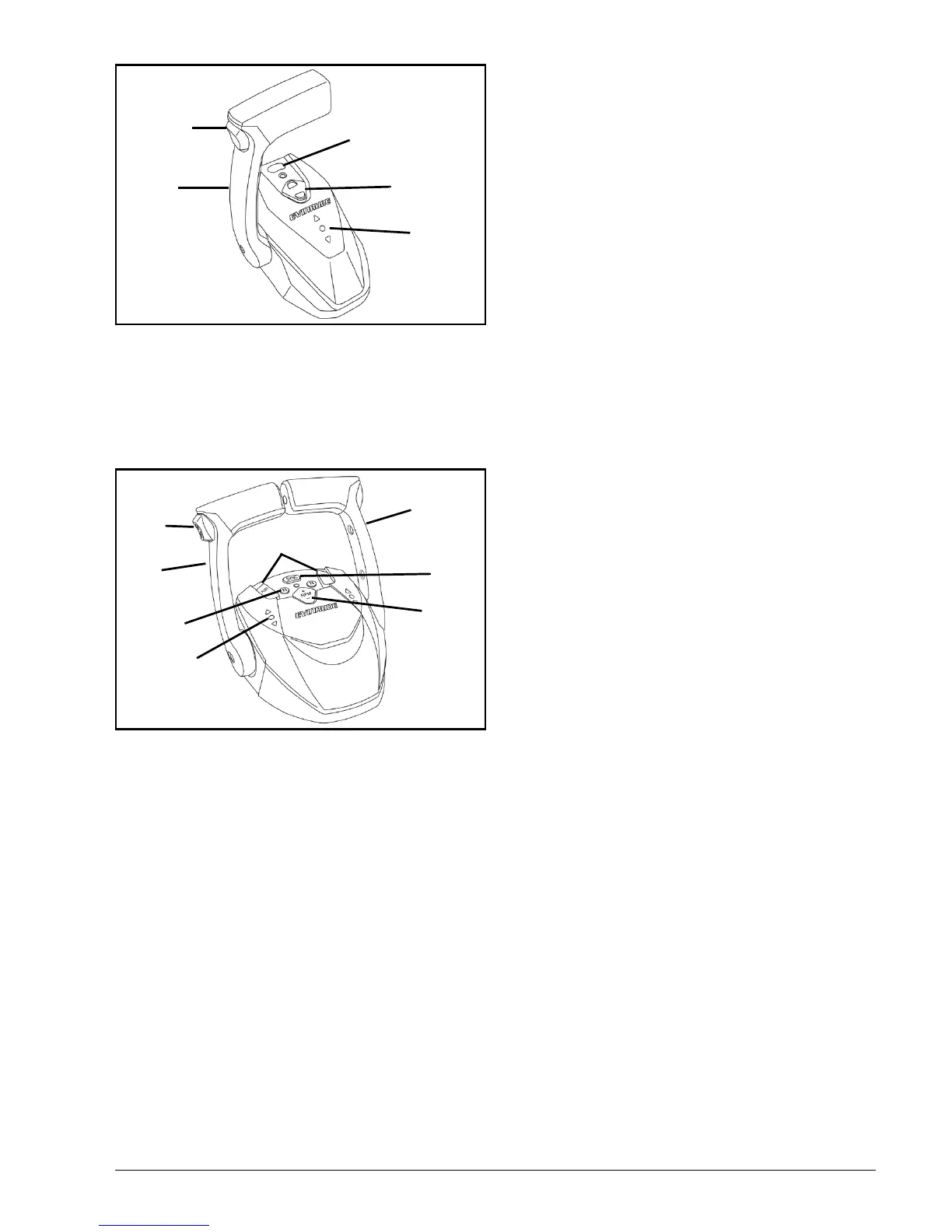

Single Lever ICON Control
1. Handle – shift and throttle
2. Trim/tilt switch
3. Fast idle (neutral) button
4. RPM Tune button
5. Gear position indicators
Dual Lever ICON Control
1. Handle – shift and throttle
2. Master Trim/tilt switch
3. Individual engine trim switches
4. Fast idle (neutral) button
5. PowerSync button
6. RPM Tune button
7. Gear position indicators
If the following directions are not suitable for
your boat’s control, see your Dealer before
proceeding.
Shifting — ICON Controls
With engine running and control handle in
NEUTRAL:
Move the control handle fore or aft until it en-
gages the forward or reverse gear detent.
Speed Control — ICON Controls
After gear engagement, move the control
handle slowly in the same direction to in-
crease speed.
Press the RPM + or – button to fine tune en-
gine speed up or down in 1% increments.
Engine Synchronization — ICON
Controls
Press the SYNC button to automatically syn-
chronize the RPM of multiple engines. The
SYNC button also transfers control of all en-
gines to the port lever on the control.
