Using Your Evinrude E-TEC Outboard
REMOTE CONTROLS — EVINRUDE/JOHNSON (BRP) Controls
IMPORTANT: When selecting the remote control system for your boat, specify Evinrude com-
ponents. Evinrude controls deliver the cable stroke your outboard needs for positive shift and
throttle control, and they incorporate such safety and convenience features as:
• Start-in-gear prevention
• Plug-in compatibility with Evinrude Modular Wiring System (MWS)

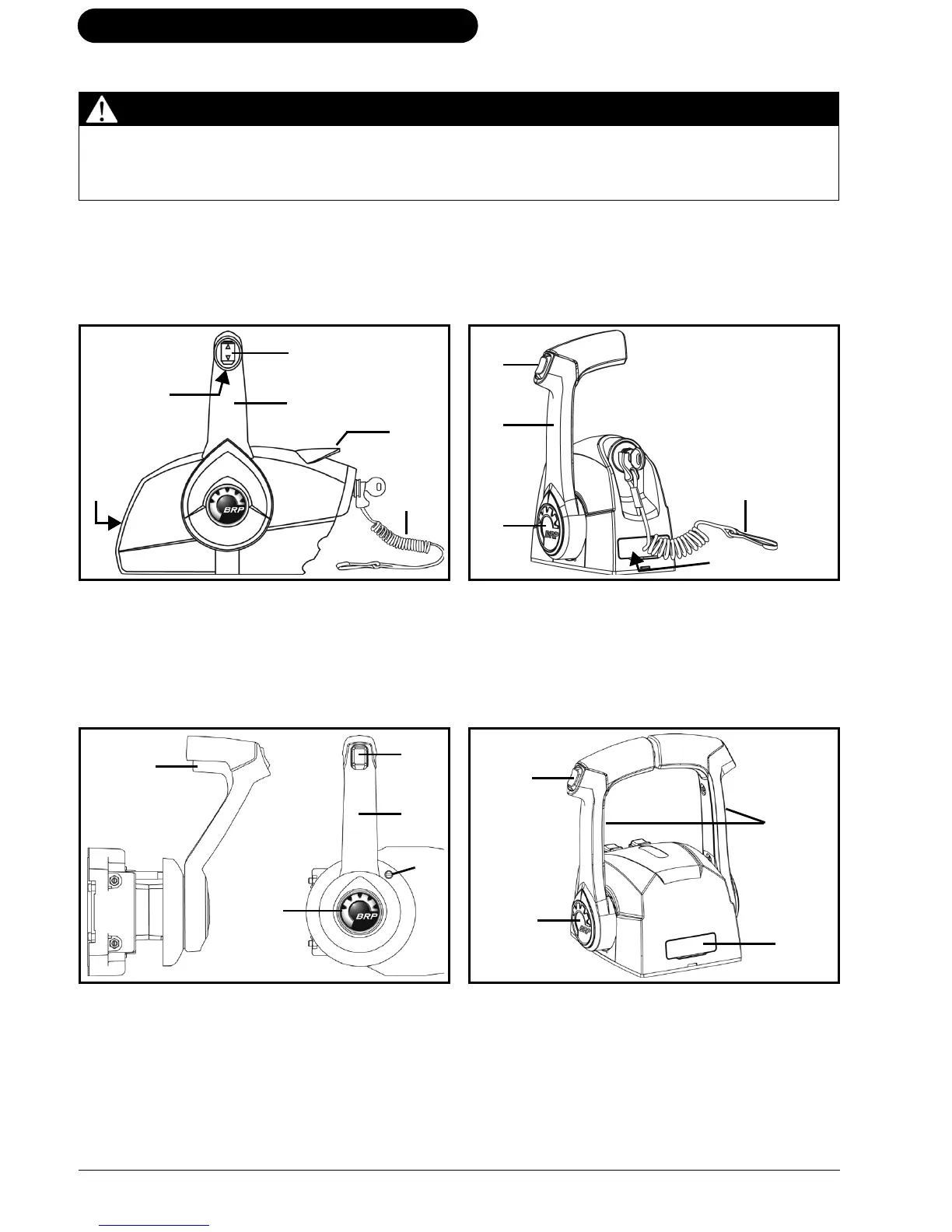

Side Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle lever (warm-up)
5. Throttle friction adjusting screw
6. Emergency stop clip and lanyard
Concealed Side Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle button (warm-up)
5. Throttle friction adjusting screw
Single Lever Binnacle Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
5. Emergency stop clip and lanyard
Dual Lever Binnacle Mount Control
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
WARNING
If you choose a non-Evinrude remote control, it must have a start-in-gear
prevention feature. This feature can prevent injuries resulting from unex-
pected boat movement when the engine starts.
5
1
4
6
3
2
5
1
2
3
4
3
2
4
1
5
1
2
3
4
