MAINTENANCE MANUAL LINE

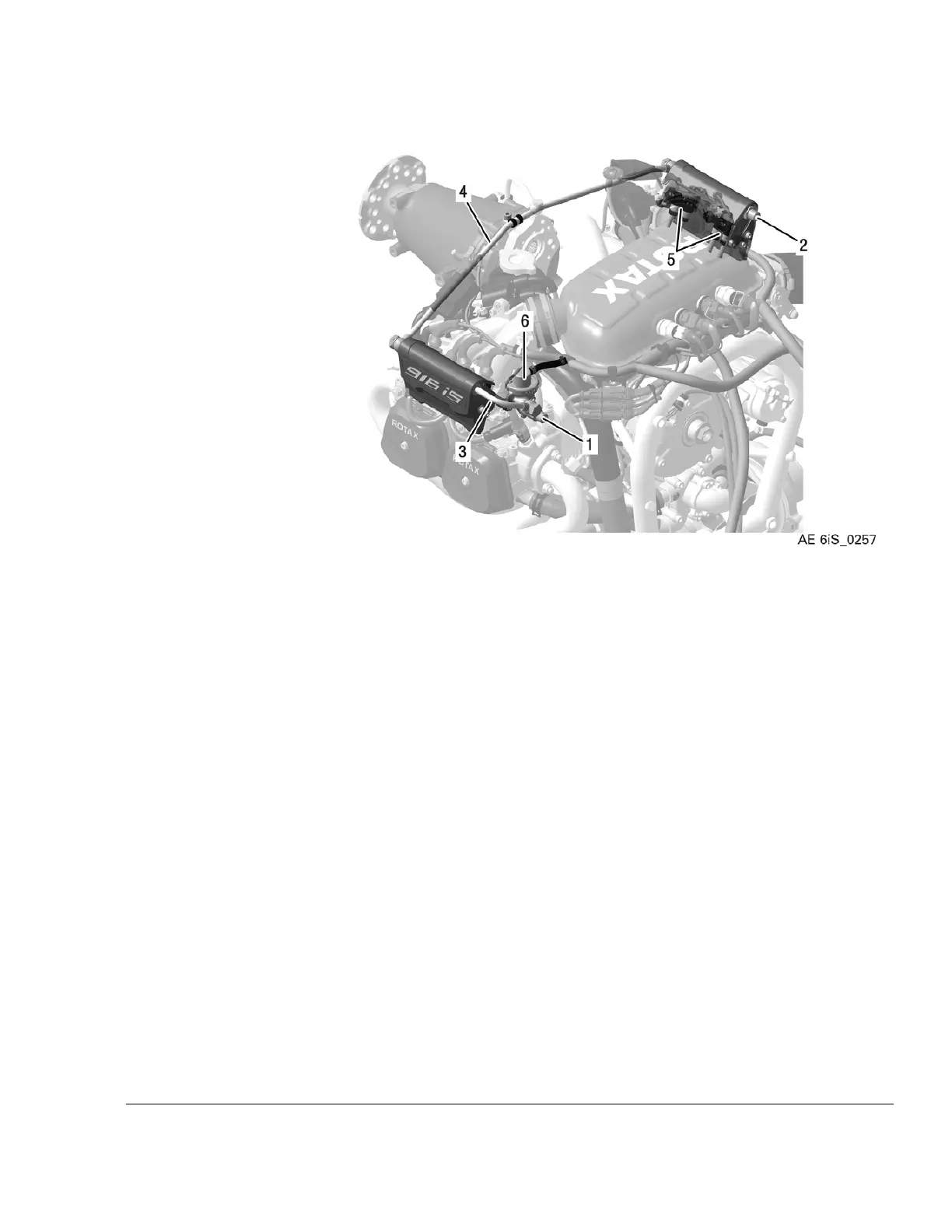

Figure 7.1: Connections and fuel lines
1 Fuel rail 2/4 outlet line 2 Fuel rail 1/3 feed line
3 Fuel rail 4
Fuel line assy.
5
Fuel injector
6
Fuel pressure regulator assy.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
12–20–00
Page 7
December 01 2023
