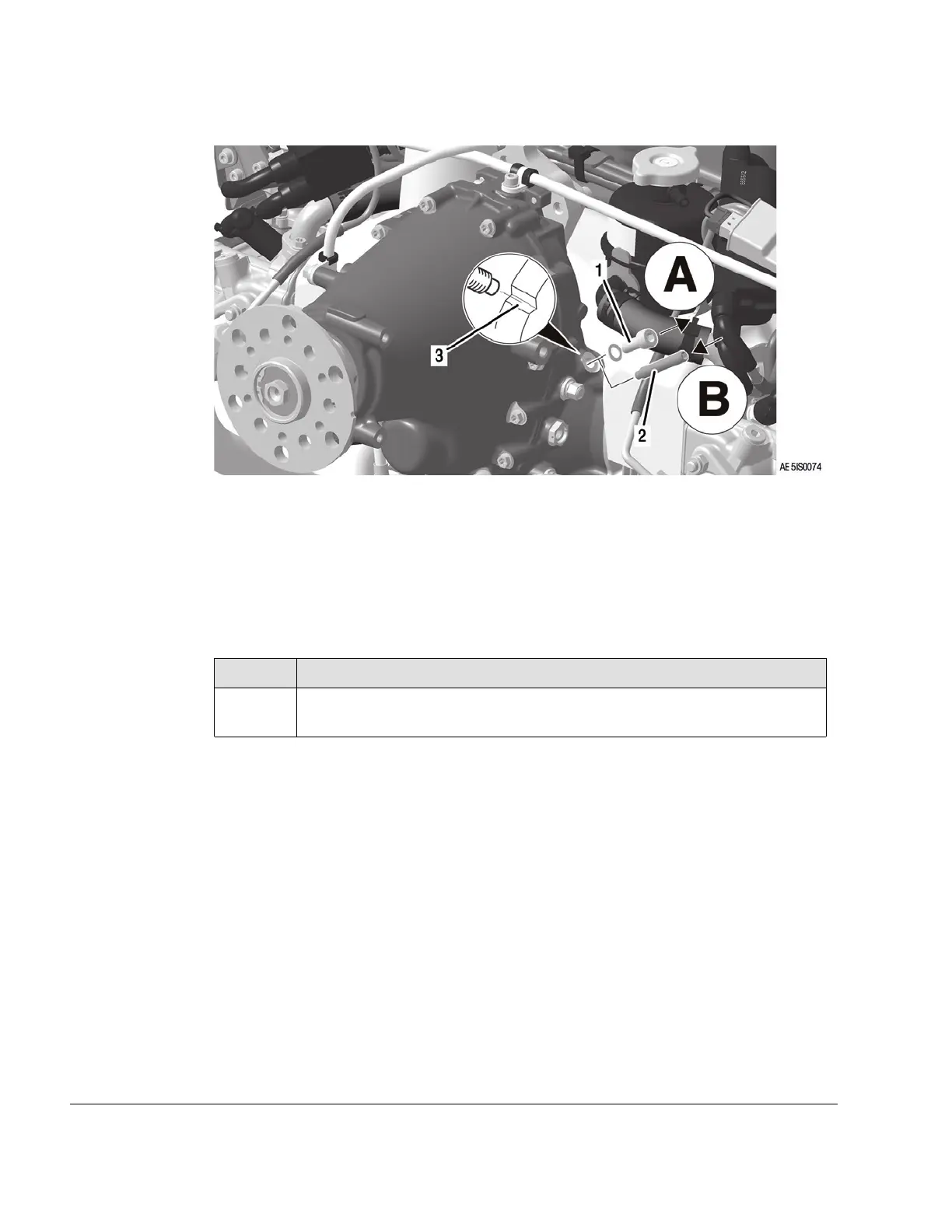

Figure 7.6: Locking/Loosen of the crankshaft. TYPICAL
1
Allen screw M8x20 (crankcase) with
sealing ring 8x13
2
Locking pin
3 Crankshaft
Loosening of the
crankshaft
After completion of work/check:
Step
Procedure
1 Remove the locking pin (2) and refit Allen screw M8x20 (1) along with a
new sealing ring 8x13 with a torque of 15 Nm (133 in.lb).
