BRP ROTAX 916 i A Series Maintenance Manual

BRP-Rotax
MAINTENANCE MANUAL LINE
NOTICE
When removing the propeller gearbox, take care not to damage the bearing point
and the oil seal running surface (on the roller bearing side) of the propeller shaft.

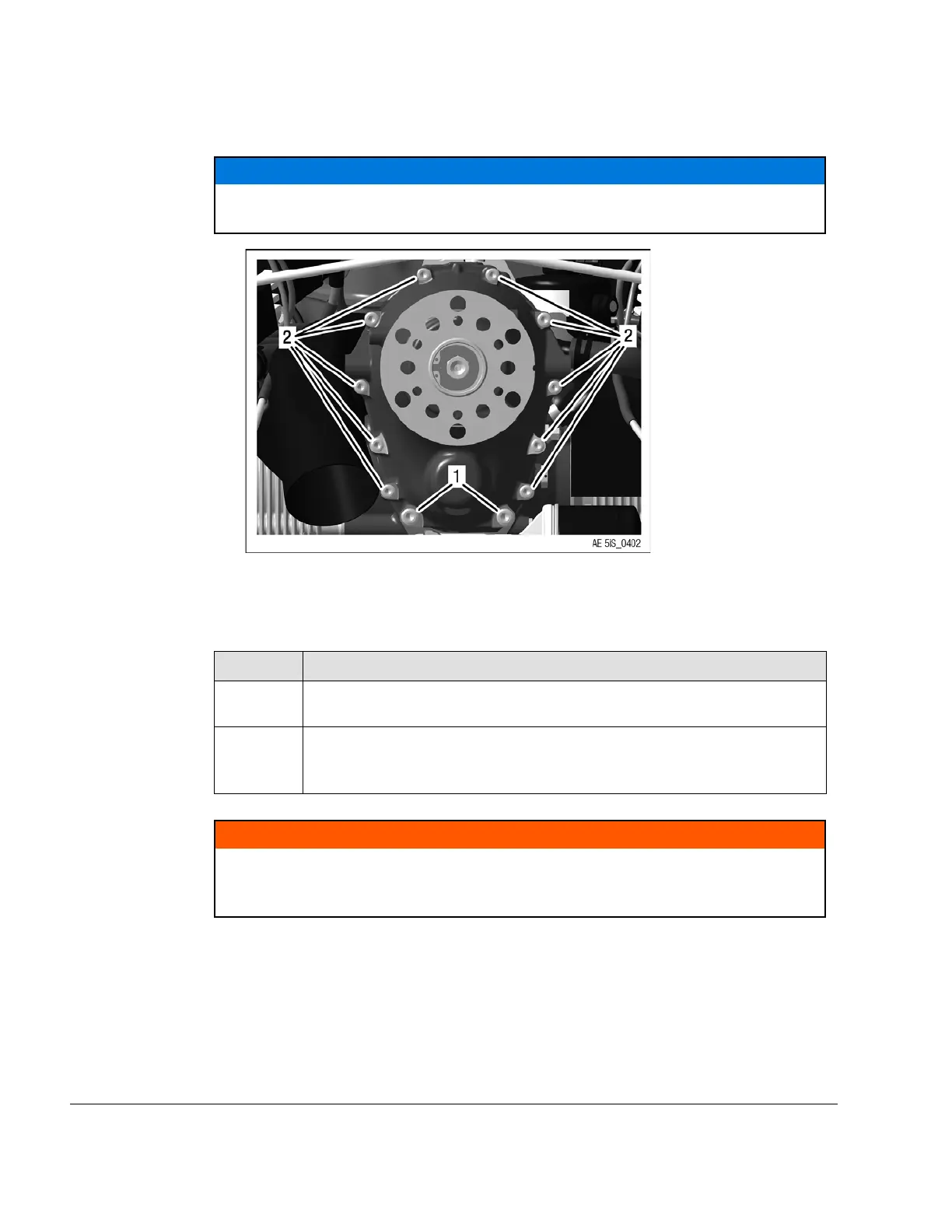

Figure 5.2: TYPICAL
1
Hex./Torx-flange screw M8x45
2
Hex./Torx-flange screw M6x40
Step
Procedure
4
Install puller part no. 877660 onto the two threaded bolts M8 of the gear
cover.
5
The entire propeller gearbox can now be pulled off by moving the handle
of the special tool part no. 877660 without damaging the ball bearing or
propeller shaft.
m WARNING
Non-compliance can result in serious injuries or death!
Overload clutch, torsion shaft and propeller shaft are installed in splines only, they can
and will separate from removed gearbox.
05–50–00
Page 4
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
