BRP-Rotax
MAINTENANCE MANUAL LINE
Step
Procedure
1
Lock the crankshaft into place according to Chapter 12-20-00 section
Locking/Loosen of the crankshaft.

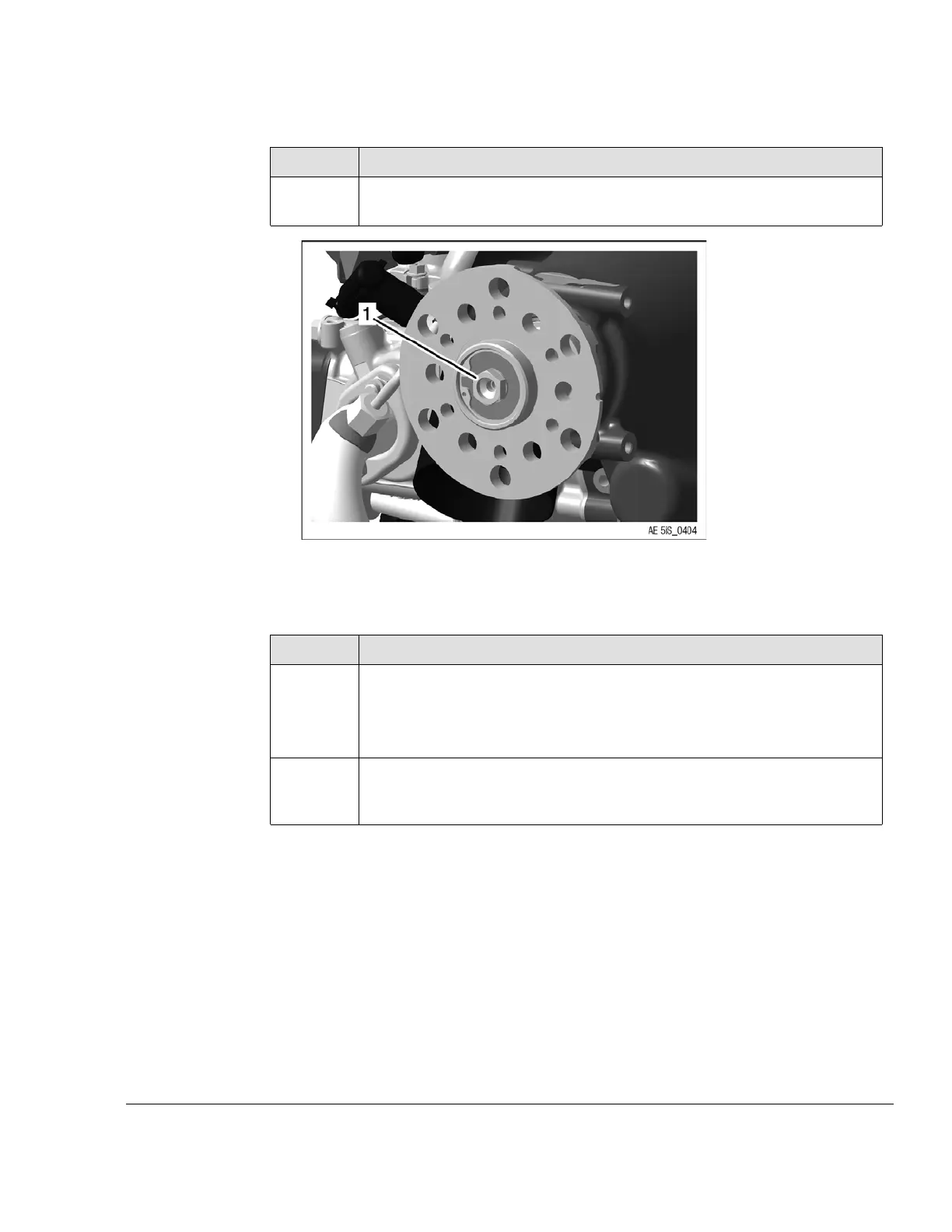

Figure 5.1: TYPICAL
1 Hex. screw
Step
Procedure
2 Loosen M12x20 hex. screw with sealing ring.
NOTE
Do not remove the hex. screw completely.
3
Loosen two Hex./Torx-flange screws M8x45 and ten Hex./Torx-flange
screws M6x40 from the gear cover diagonally from each other. The gear
cover is aligned with two dowel pins.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
05–50–00
Page 3
December 01 2023
