BRUEL & KJAER 2203 User Manual

Sound and Vibration Sets
Accelerometer Set Type 4366S
standard accessories
Type 2203
Type 3501 and Type 3509
Nose Cone 1 I 2"
UA 0386
Octave Filter Set
Type 1613
Precision Sound Level Meter with
Adaptor for tripod
UA 0354 (3502 only)
standard accessories
Type 2203
Integrator
ZR 0020
Third-Octave Filter Set
Type 1616
Octave Filter Set
Type 1613
Extension Cable
AO 0128
(3510only)
(3501 only)
Carrying Case KE 0055
Pistonphone
Type 4220
Third - Octave Filter Set
Type 1616 Artificial Ear
Type
4152
(3509 only)
Audiometer Calibrators Type 3502
Microphone 1"
Type 4144
Pistonphone
Type 4220
and Type 351 0
1" Adaptor
DB 0375
Microphone 1 I 2"
Type 4166
Precision Sound Level Meter with
Carrying Case
KE 0055

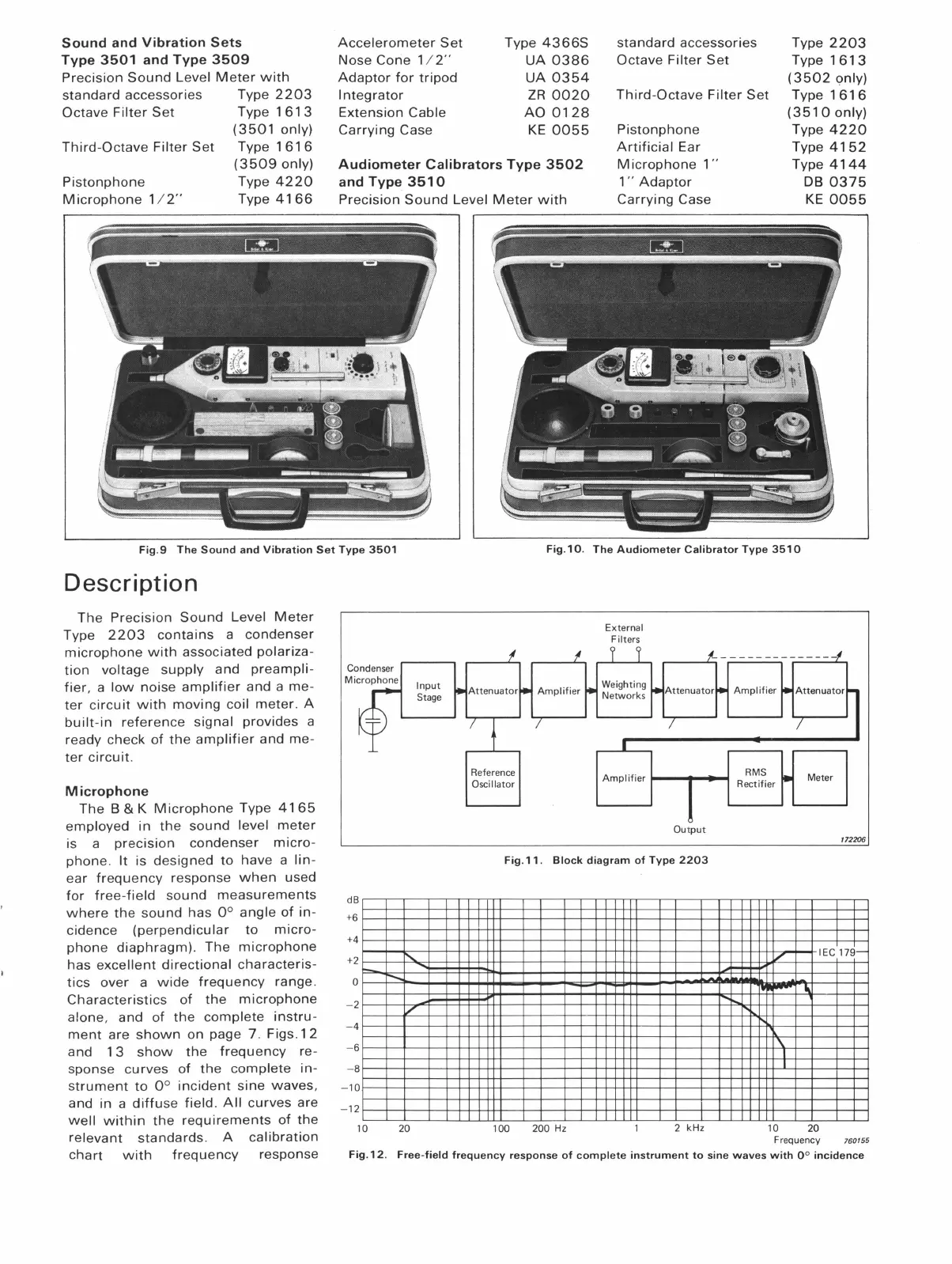

Fig.9 The Sound and Vibration Set Type 3501
Fig. 10. The Audiometer Calibrator Type 3510
Description
The Precision Sound Level Meter
Type 2203 contains a condenser
microphone with associated polariza-
tion voltage supply and preampli-
fier, a low noise amplifier and a me-
ter circuit with moving coil meter. A
built-in reference signal provides a
ready
check of the amplifier and me-
ter circuit .
Microphone
The B & K Microphone Type 41 65
employed in the sound level meter
is a prec1s1on condenser micro-
phone. It is designed to have a lin-
ear frequency response when used
for free-field sound measurements
where the sound has 0° angle of in-
cidence (perpendicular to micro-
phone diaphragm). The microphone
has excellent directional characteris-
tics over a wide frequency range .
Characteristics of the microphone
alone, and of the complete instru-
ment are shown on page 7 . Figs. 12
and 1 3 show the frequency re-
sponse
curves of the complete in-
strument to 0° incident sine waves,
and in a diffuse field. All curves are
well within the requirements of the
relevant standards . A calibration
chart with frequency response
ndenser Co
Mi
crop hone
r----
~
~
dB
+6
+4
+2
0
-2
-4
- 6
- 8
-10
-1 2
-
..........
!"-..
v
10 20
Input
Stage
External
Filters
_1_
_!___
f I
1- - - - - - -- - - - - - - -1
~ Attenuator ~ Amplifier
~ Weighting
Networks
• Attenuator
• Amplifier
~ Attenuator ~
I
f
I
I
I
I
Reference
Amplifier
RMS
Meter
Oscillator
Rectifier 1-
Output
172206
Fig. 1 1. Block diagram of Type 2203
v
IEC 179-
""""'~
~~ ...
-
'
II'-"
"
...... ~
...
\..
I
I
100
200 Hz
2 kHz
10
20
Frequency 760155
Fig. 12. Free-field frequency response of complete instrument to sine waves with 0° incidence
