Brunetti pleximan - Effect Loop Connectivity; Speaker Output and Impedance Matching

FUSE – the main fuse rating
VOLTAGE – voltage of mains input power for which the device has been manufactured.
HT FUSE - high voltage tubes fuse rating. Follow the indicated rating.
CAUTION !!!
DO NOT USE FUSES WITH DIFFERENT RATINGS TO THOSE ORIGINALLY
FITTED AS THIS MAY RESULT IN SERIOUS DAMAGE TO THE DEVICE!

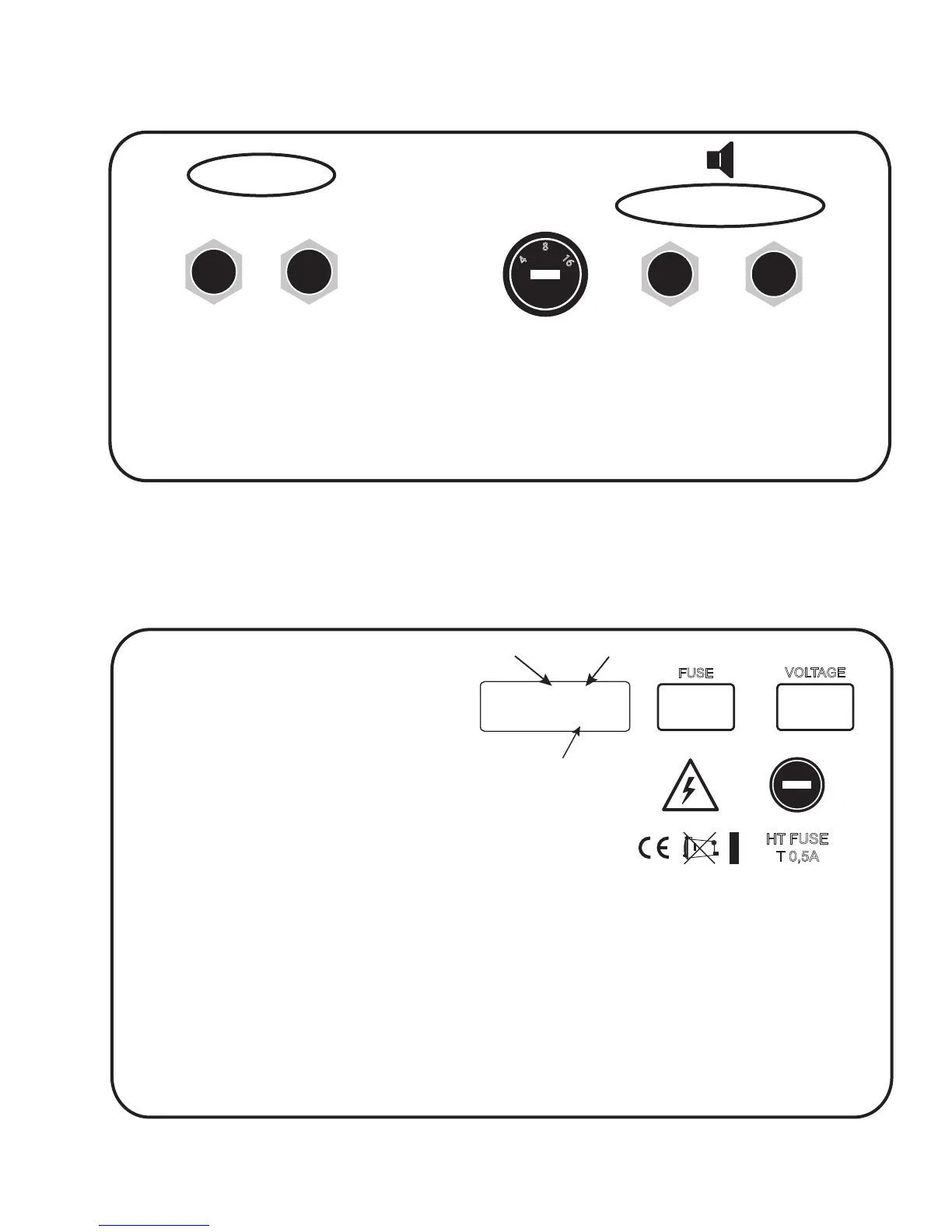

send
return
effect loop
total
impedance
speaker outputs
(linked)
4
8
16
e tube/buered serial eect loop
is compatible with stomp/pedal
and rack eects with -10dB
sensitivity.
FUSE
VOLTAGE
HT FUSE
T 0,5A
ere are two, connected speaker jack outputs.
When using only one speaker cabinet, set the total impedance
equal to the impedance of the cabinet itself.
When using only two speaker cabinets of the same impedance, set the
total impedance to half that of the nomainal cabinet impedance.
For example, to connect two 16Ω cabinets to the Pleximan, the
impedance selector should be set to 8Ω.
e product identication data label shows the
following information:
PD - the week and year of manufacture
*
SERIAL - the product serial number *
*
Make sure this information is clearly visible as
without it, the product will not be eligible for
technical assistance, either during or aer the
warranty period.
PD ## ####
Serial ####
Week Year
Serial number
3
