Brunetti pleximan - Tube Layout and Functionality; Tube Care and Safety Advice

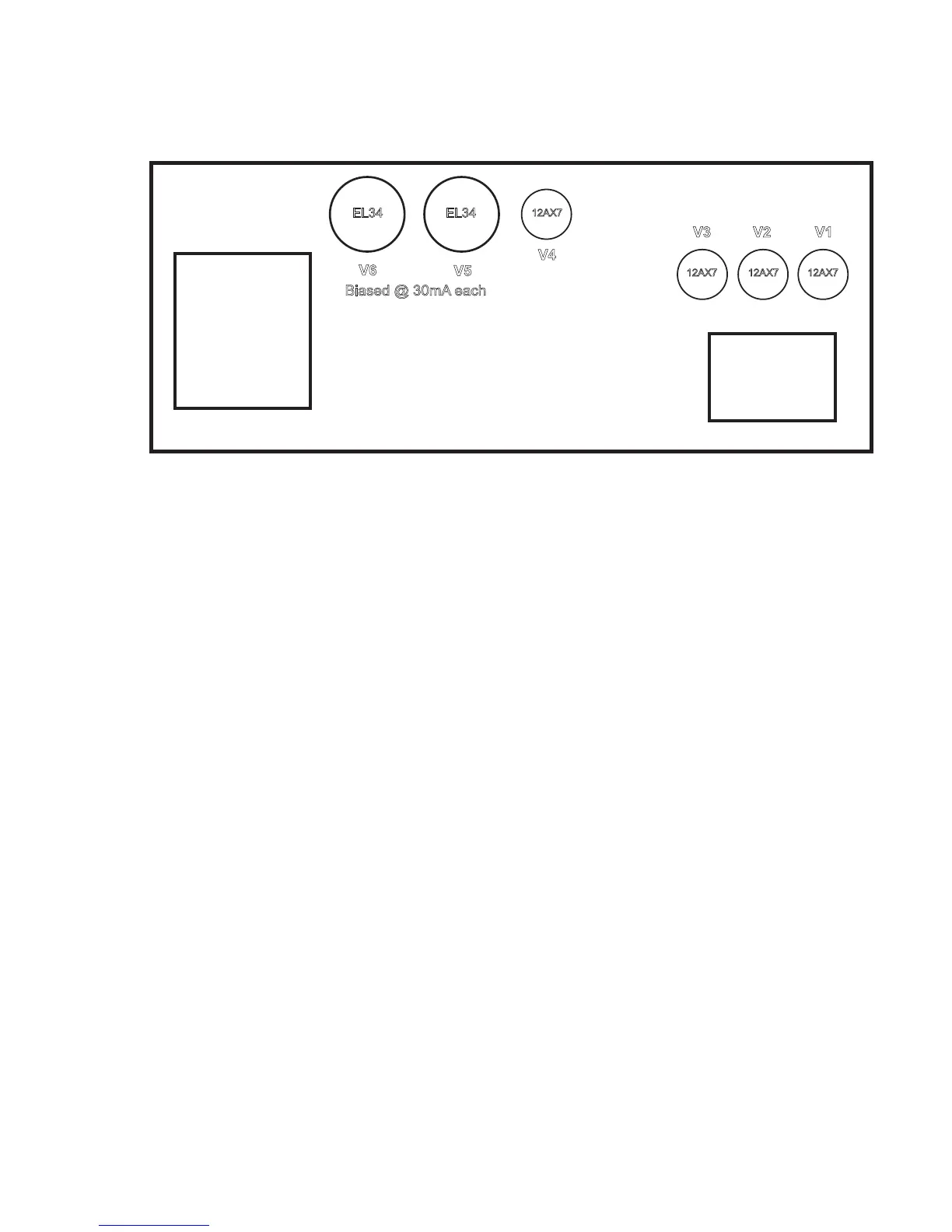

TUBES CHART
EL34 EL34
12AX7
12AX7 12AX7 12AX7
V1V2V3
V4
V5
V6
V1 = CH1/CH2
V2 = CH1/CH2
V3 = EFFECT LOOP
V4 = PHASE SPLITTER
V5/V6 = POWER TUBES
- Each tube is selected and matched to the amp during the electrical and sound testing
procedure.
- Only replace defective tubes with the exact same model (better if supplied by Brunet-
ti).
- e EL34 power tubes require bias adjustment aer replacement.
Failure to use the correct type of valve may result malfunction of the amp.
CAUTION!
Inside the amplier there are potentially lethal voltages. If your unit requires repair or
service please contact Brunetti or a Brunetti approved service centre.
Qualied technicians guarantee that the work is carried out correctly.
If in doubt please email: support@brunetti.it
USEFUL INFORMATION
4
Biased @ 30mA each
