FOOTSWITCH e SWITCHING
footsw
remote switching
dense
remote jack
ch
hotrod
solo

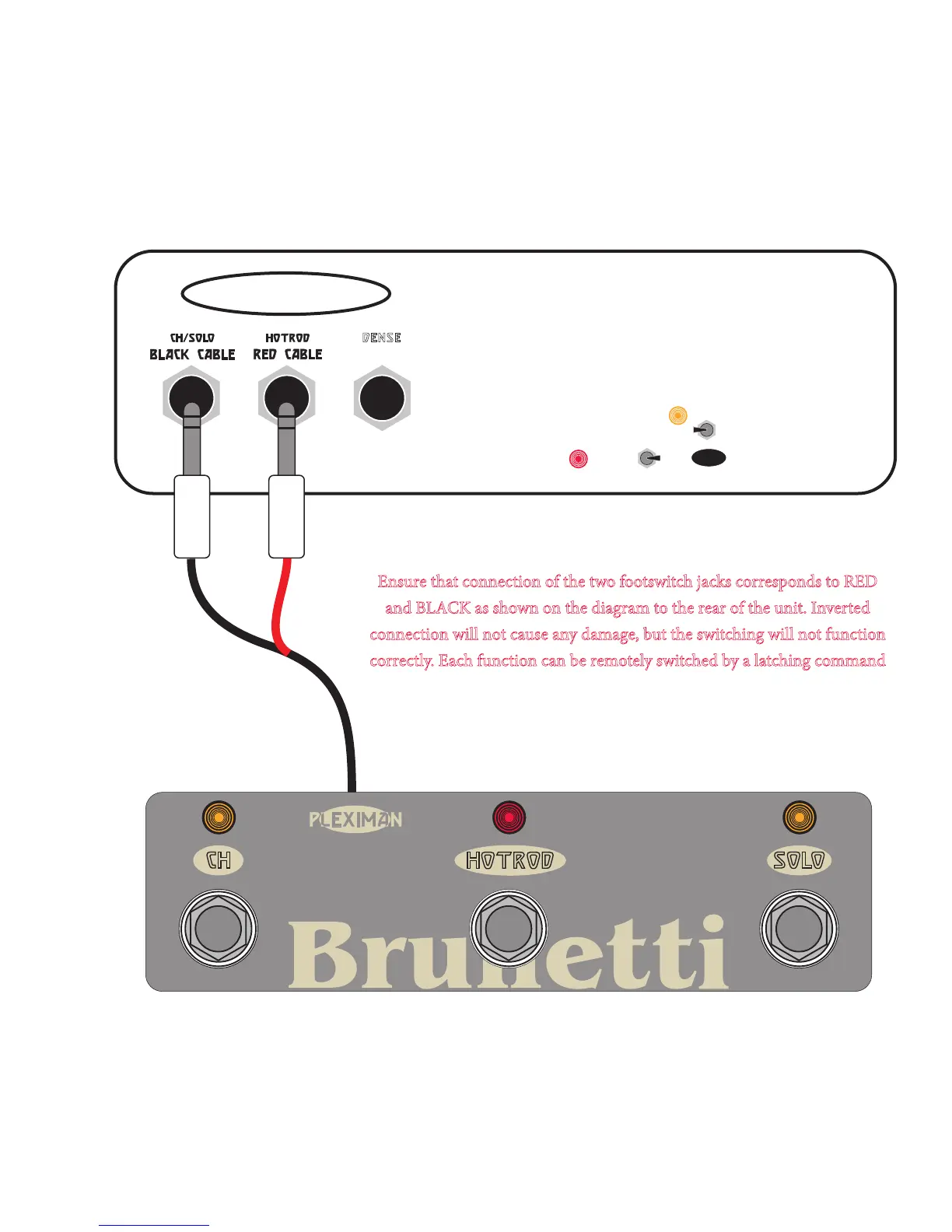

Ensure that connection of the two footswitch jacks corresponds to RED
and BLACK as shown on the diagram to the rear of the unit. Inverted
connection will not cause any damage, but the switching will not function
correctly. Each function can be remotely switched by a latching command
5
e main functions ‘CH’, ‘HOTROD’ and ‘SOLO’ are footswitch
controlled and must be connected to the jacks ‘FOOTSW’. e
footswitch pedal has two jacks. e black cable jack is for ‘CH’ and
‘SOLO’. e red cable jack is for ‘HOTROD’. In order to have the
footswitch correctly working the two jacks must be connected both.
“DENSE” function can be switched remotely by an on/o switch.
e manual switches on the front panel must be selected as follow:
CH switch in CH2
ch
Hotrod
HOTROD switch in OFF position
