REMOTE SWITCHING
e functions ‘CH’, ‘HOTROD’, ‘SOLO’ and ‘DENSE’ can also be
switched by remote jack by connecting latching command ON/OFF

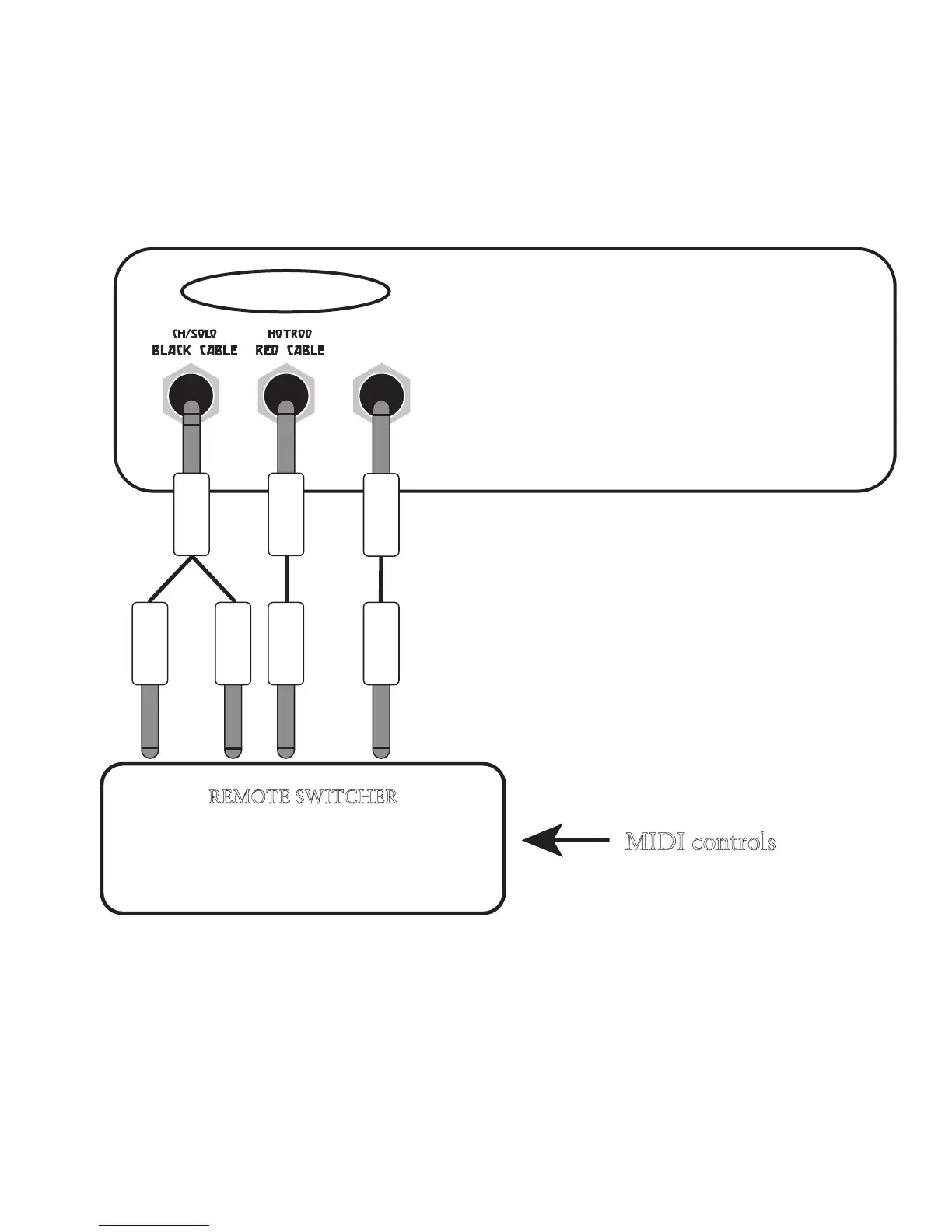

Take care to use a stereo jack with two mono jacks for CH and
SOLO as shown on the diagram.
footsw
remote switching
dense
remote jack
STEREO
MONO
MONO
MONO MONO MONO
MONO
REMOTE SWITCHER
e functions will be switched on when the jack’s tip
will be grounded
