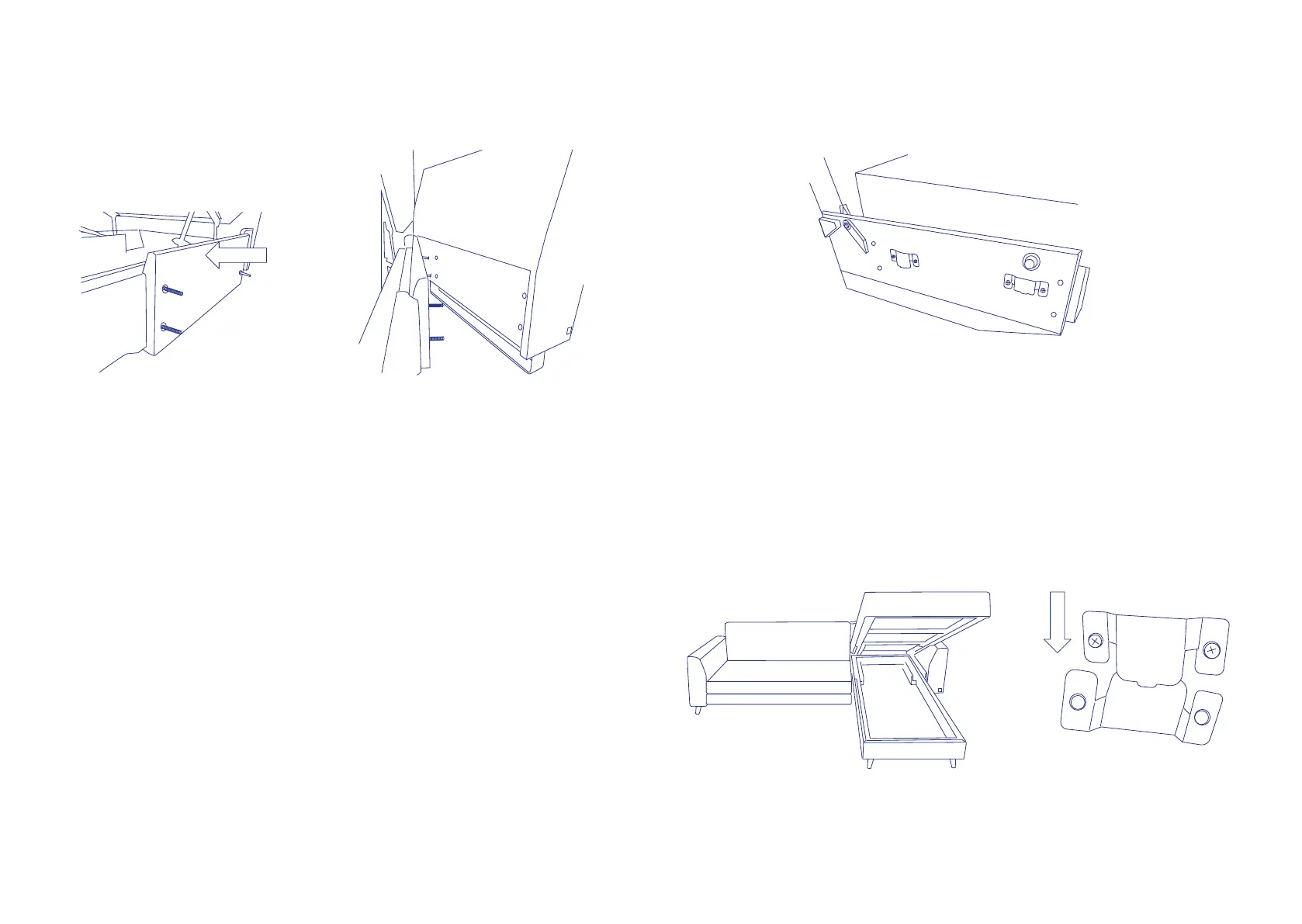

To attach the armrest, open the chaise
longue. Push the screws B from the inside
to the outside through the holes, then insert
the adapter A or B* with the inclined side
facing inwards.
*If you have purchased the chaise longue with the sofa bed, please use Adapter A. If you are
adding a chaise longue to an existing sofa bed, please use Adapter B.
If you want to attach the armrests and chaise longue on the other side from the one pre-
assembled, please first unscrew the metal brackets mentioned in point 5.
If you have purchased the chaise with the sofa bed, the metal brackets for inserting the chaise
longue into the sofa are preassembled.
If you want to attach the chaise longue on the other side of the sofa, simply move the metal
brackets to the other side.
Now put the armrest on the screws in twos
and tighten them from the inside with the
ratchet.
4A. 4B.
Move the open chaise longue towards the
unfolded sofa bed.
Now, connect the chaise longue and the
sofa by hooking them together using the
metal rails. The metal rails of the sofa are in-
serted from the top into those of the chaise.
5A. 5B.
5
ASSEMBLY OF THE ARMREST ASSEMBLY OF THE CHAISE LONGUE
TO THE SOFA BED
