PAGE 8 BRUNSWICK INSTALLATION MANUAL
EDINBURGH
SLATE ASSEMBLY AND LEVELING
(CONTINUED)
FIGURE FOUR
Step #6: With a precision tool, level each end slate section by
driving wooden slate wedges (provided) between the top of the base
frame and bottom of the slate as shown. Keep the wedges as close
to the countersink holes as possible.
Step #7: With both end slates perfectly level, continue fastening
the end slates at the joints. Recheck for levelness and, if necessary,
back the screws out and adjust the shim position. Then, retighten
the slate attaching screws.
Step #8: When satised that both end slates are level, shim the
center slate section as required to obtain a ush t at both joints,
then screw the center slate down.
Step #9: Slate joints can now be lled with Rock Hard putty or
wax. Lightly sand or scrape across the joints after grouting.

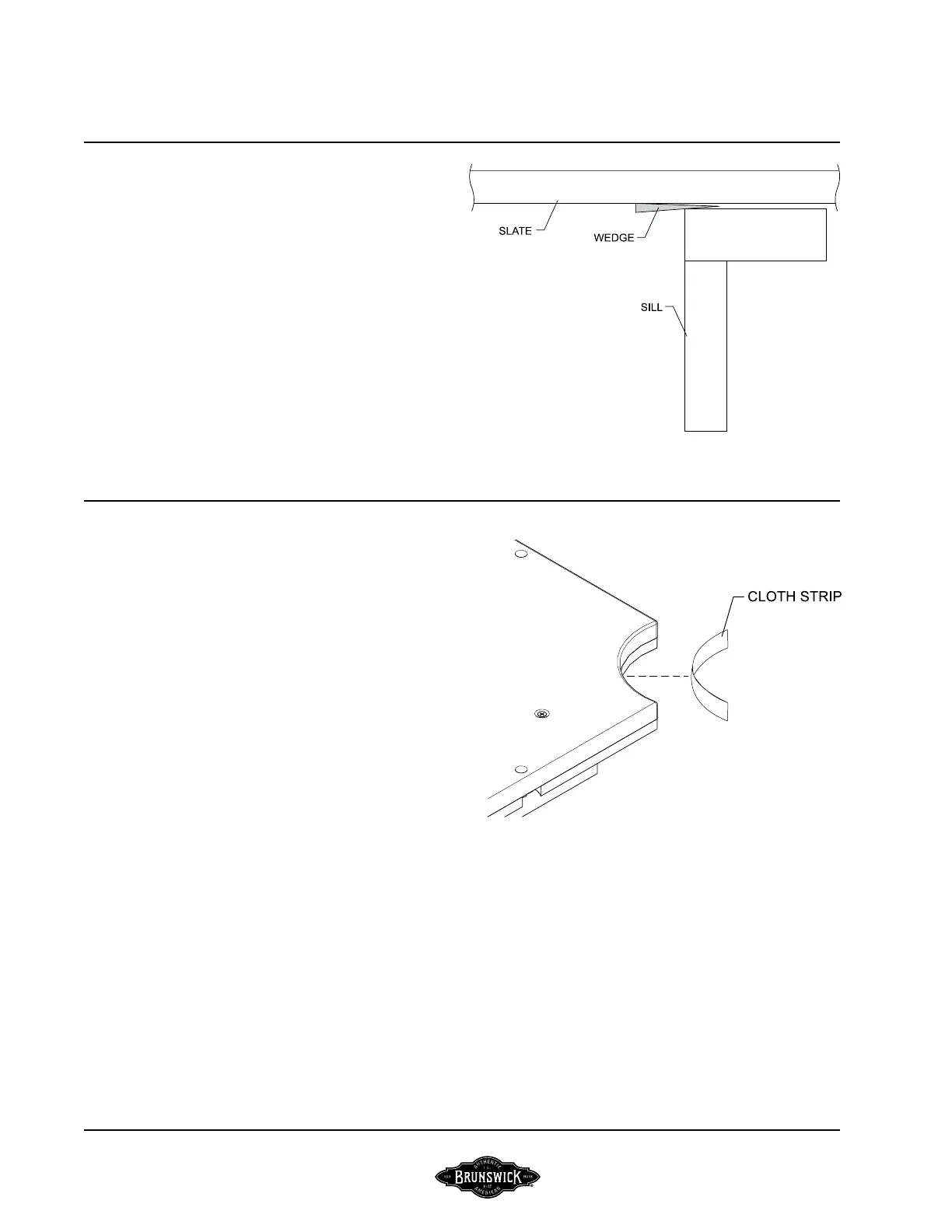

FIGURE FOUR
FIGURE FIVE
Step #10: From the end of a bed cloth, cut strips of cloth ap-
proximately 1-1/2” wide by 8” long and glue the strips to the pocket
cutouts. This is important as this will provide cushioning from ball
impact and the bed cloth will last much longer.
FIGURE FIVE
