BASEFRAME AND LEG ASSEMBLY

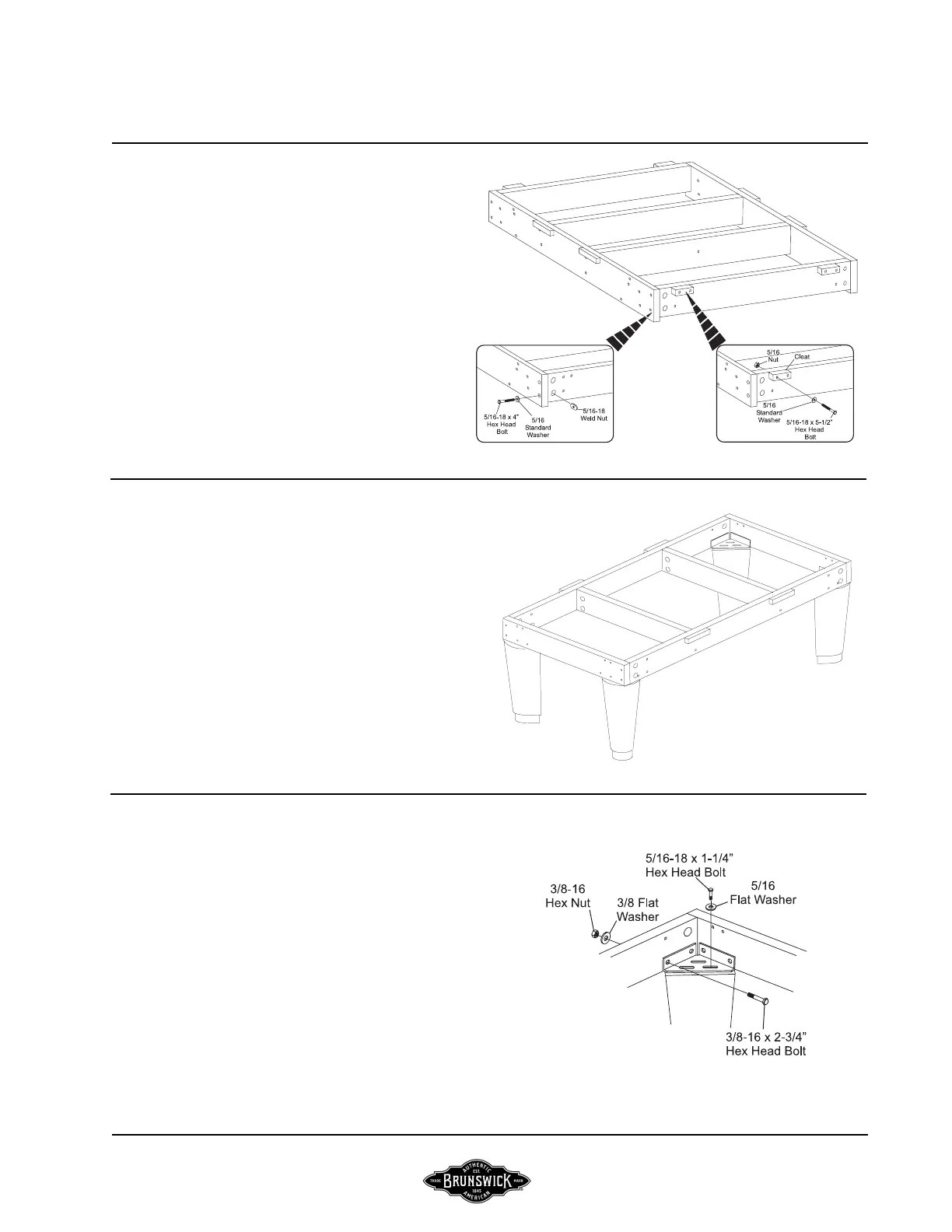

FIGURE ONE
Step #1: Loosely assemble the two side sills to the four
cross support sills as shown in Figure One with 5/16-18
x 4” hex head bolts, 5/16 flat washers and 5/16-18 weld
nuts.
Step #2: Attach two slate attach cleats to each end of the
baseframe as shown in Figure One with 5/16-18 x 5-1/2”
hex head bolts, 5/16 flat washers and 5/16-18 hex nuts.
Position flush with the top of the sill and securely tighten
FIGURE ONE
FIGURE TWO
Step #3: Set the legs out with the levelers up. Run out
about 1/4” to assure that they are free to rotate.
Step #4: Set the legs out, upright at the four corners and
set the assembled baseframe on top.
FIGURE TWO
FIGURE THREE
Step #5: Set a leg attach bracket in each corner of the
baseframe on top of the leg.
Step #6: Loosely attach the brackets to the leg using 5/
16-18 x 1-1/4” hex head bolts and 5/16 flat washers.
Step #7: Loosely attach the baseframe to the brackets
using 3/8-16 x 2-3/4” hex head bolts, 3/8 flat washers and
3/8-16 hex nuts.
FIGURE THREE
