Bandit
Copyright 5/09 PAGE 65
MODELS 2000XP / 2100SP
CUTTER WHEEL SECTION (PRE 6/08)
There are twenty (20) teeth to a complete set on a
model 2100SP built prior to 6/08. Two (2) straight
teeth, nine (9) left 45° teeth, and nine (9) right 45°
teeth.
Do Not operate machine with extremely worn or
broken teeth.
DO NOT OPERATE MACHINE WITHOUT A FULL SET OF TEETH. OPERATING MACHINE WITHOUT A
FULL SET OF TEETH CAN CAUSE EXCESSIVE VIBRATION AND PREMATURE BEARING FAILURE.
A locking pin is provided to hold the cutter wheel
in position during tooth removal and reinstallation.
Locking pin will only lock on outer teeth. NEVER
USE HAND ON CUTTER WHEEL TO HOLD IN
PLACE WHILE CHANGING TEETH. BE SURE TO
REMOVE LOCKING PIN BEFORE OPERATING
THE MACHINE.

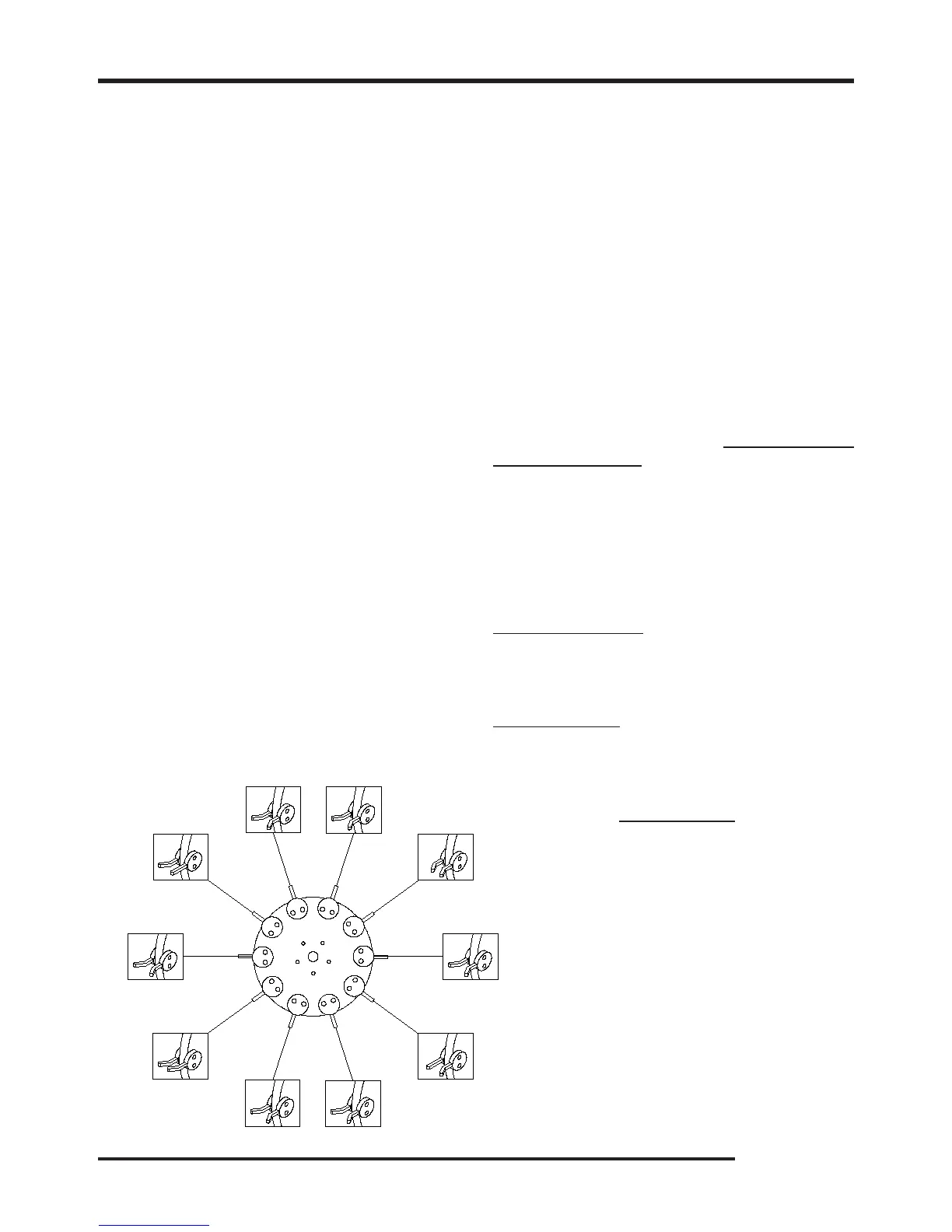

TOOTH ARRANGEMENT
Inspect pockets, teeth and bolts for damage and
replace as required.
When replacing pockets, always replace new pockets
across from each other (180°) in order to prevent
vibration.
Replacement teeth must be carbide tipped and of like
design as provided with the machine.
Use anti-seize on threads to help prevent bolts from
“freezing up” in cutter wheel pockets.
When replacing complete set of teeth, be sure to
duplicate original factory tooth arrangement. Typically
a 1/2” allen key socket is required to change or torque
the teeth. Torque bolts to 150 ft.-lbs. (203 Nm).
MODEL 2100SP
Straight Tooth (Pin Style): 900-9903-75
Left Tooth 45° (Pin Style): 900-9903-76
Right Tooth 45° (Pin Style): 900-9903-77
Counter Bored Pocket: 900-9903-78
Threaded Pocket: 900-9903-79
Bolt: 900-9903-96
Tooth Kit: 900-9903-87
CUTTER WHEEL SECTION
Use only original equipment manufacturer’s teeth. The use of any other aftermarket teeth may cause damage
or premature failure to the drive train.
Straight teeth are mounted in TWO OPPOSING
OUTSIDE POCKETS (180°).
A straight tooth must have a 45° tooth accompanying
it in the same pocket set. The opposite pocket set
should have this same combination of straight and
45° tooth, except with positions reversed. Mounting
these teeth opposite each other on the cutter wheel
reduces damaging vibration.
Two Outside Pockets require 45° teeth overlapping
the center line of the cutter wheel to make plunge
cuts possible. Mount two left 45° teeth opposite two
right 45° teeth.
All Inside Pockets require 45° teeth mounted away
from the cutter wheel.
