Assembly
Read entire operator’s manual before you
attempt to assemble or operate your new
pressure washer.
Your pressure washer requires some assembly and is
ready for use after it has been properly serviced with
the recommended oil and fuel.
If you have any problems with the assembly of your
pressure washer, please call the pressure washer
helpline at (800) 743-4115. If calling for assistance,
please have the model, revision, and serial number
from the data tag available.
Unpack Pressure Washer
1. Remove the parts bag, accessories, and inserts
included with pressure washer.
2. Open carton completely by cutting each corner
from top to bottom.
3. Ensure you have all included items prior to
assembly.
Items in the carton include:
• Main Unit
• Handle
• High Pressure Hose
• Spray Gun
• Adjustable Nozzle Extension
• Oil Bottle
• Parts Bag (which includes the following):
• Safety Goggles
• Operator’s Manual
• Owner’s Registration Card
• Accessory Storage Bag
• Handle Fastening Hardware Kit (which
includes):
• Carriage Bolts (2)
• Plastic Knobs (2)
To prepare your pressure washer for operation,
you will need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handle to main unit.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and
pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
Attach Handle
Place handle onto base. Make sure holes in handle
align with holes on base. Insert carriage bolts through
holes from outside of unit and attach a plastic knob
from inside of unit (Figure 2). Tighten by hand.

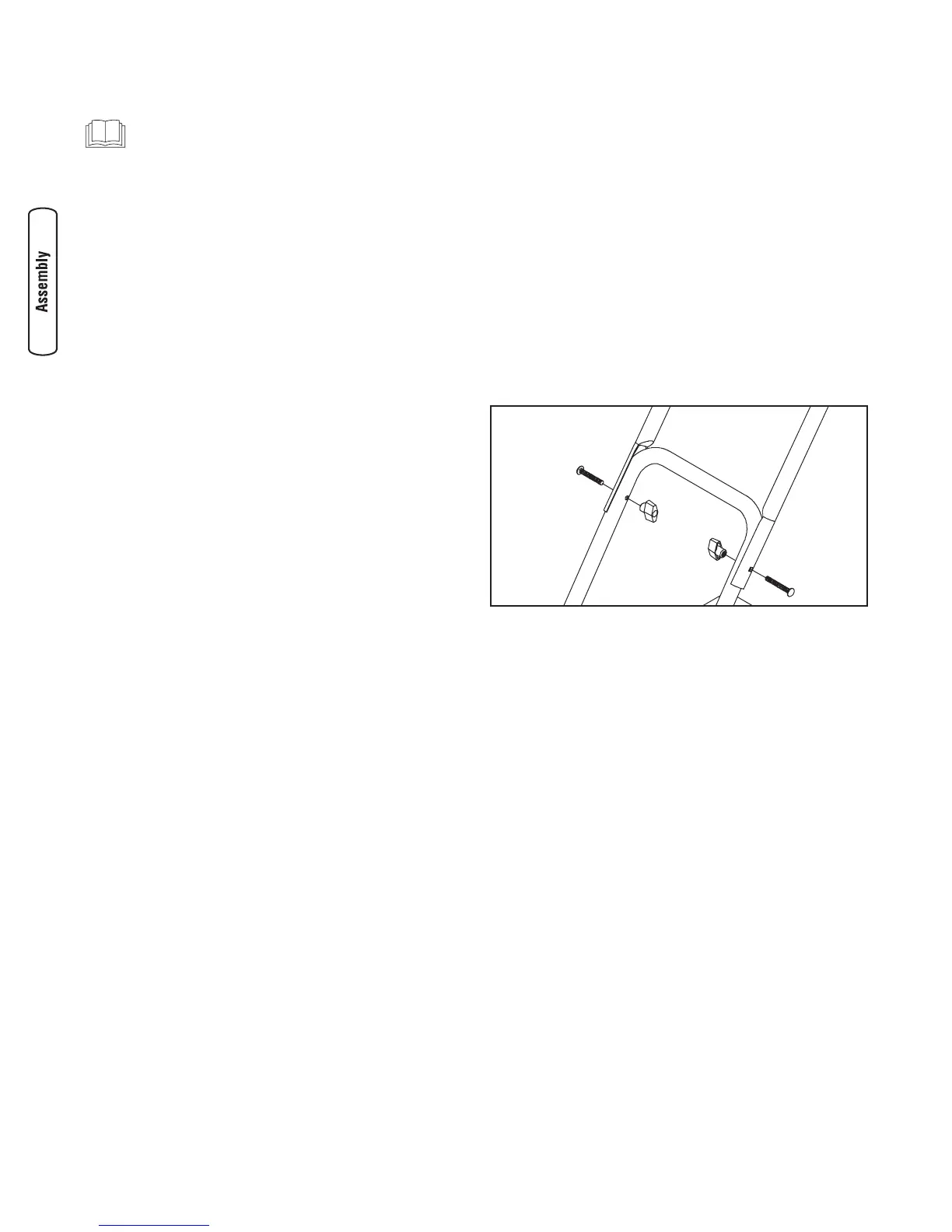

Figure 2: Attach handle to base
