9

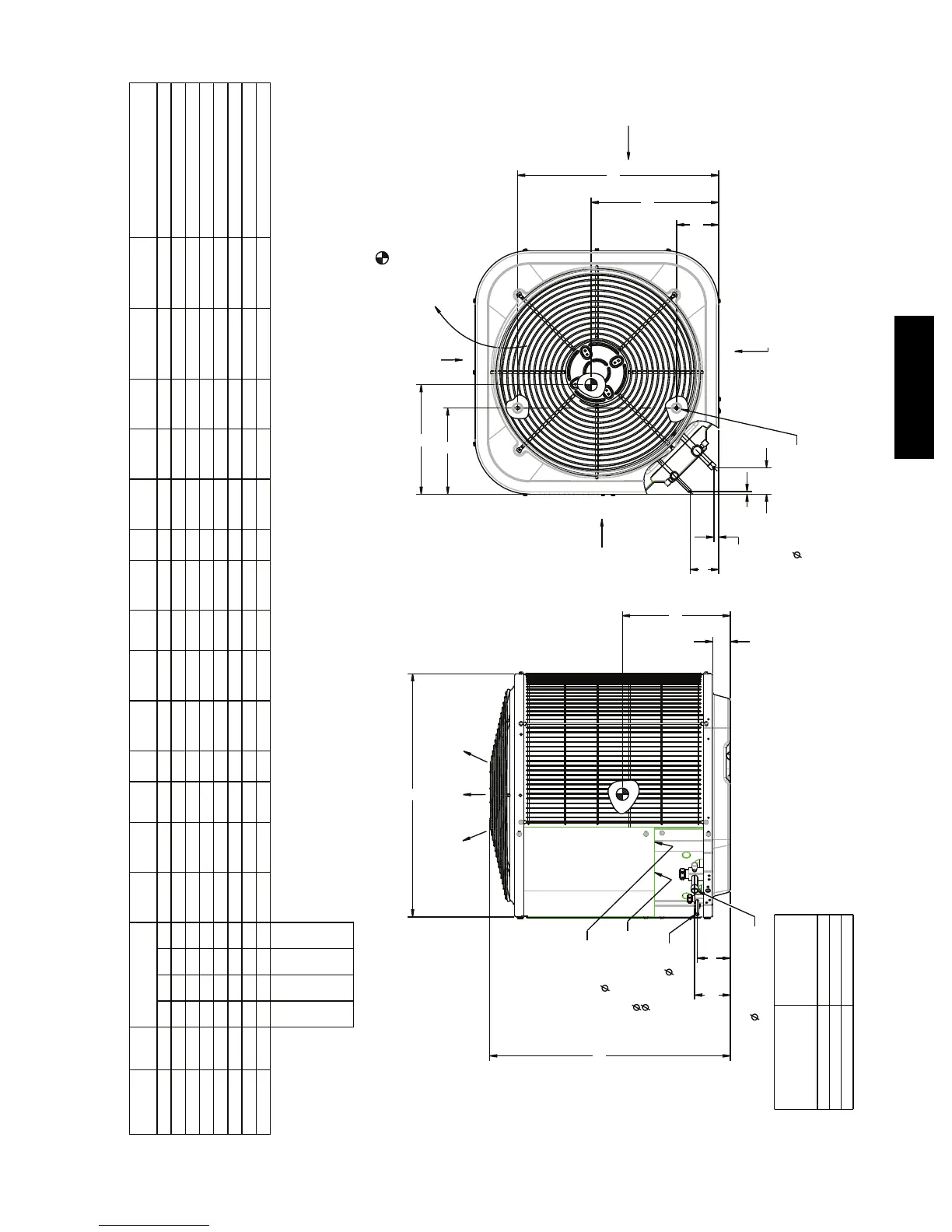

DIMENSIONS -- ENGLISH
B
3"
K
5/16"
L
C
3 1/2"
1 7/8"
N
P
M
E
F
G
A
208-230-1-60
230-1-60
208/230-3-60
460-3-60
UNIT SERIES
ELECTRICAL
CHARACTERISTICS
ABCDEFGKLMNP
OPERATING
WEIGHT (lbs)
SHIPPING
WEIGHT (lbs)
SHIPPING
DIMENSIONS (L x W x H)
116BNA024 A X O O O 31 3/16" 28 5/16" 3 3/4" 3/4" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 16" 16" 13" 147 183 32 3/8" X 35 1/2" X 32 9/16"
116BNA030 A X O O O 31 3/16" 32 5/16" 3 3/4" 3/4" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 15 1/2" 16" 14 1/4" 153 188 32 3/8" X 35 1/2" X 35 15/16"
116BNA036 A X O O O 35" 28 5/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 16" 16" 13" 165 204 36 1/8" X 39 5/16" X 32 9/16"
116BNA042 A X O O O 35" 39 1/8" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 16 1/2" 17 1/2" 17 1/2" 213 254 36 1/8" X 39 5/16" X 42 3/4"
116BNA048 A X O O O 35" 32 5/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17" 17 1/2" 14 1/4" 231 274 36 1/8" X 39 5/16" X 35 15/16"
116BNA060 A X O O O 35" 45 15/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 16 1/2" 17" 16 1/4" 272 310 36 1/8" X 39 5/16" X 49 9/16"
116BNA018 B X O O O 25 3/4" 28 11/16" 3 3/4" 3/4" 4 7/16" 21 1/4" 7 13/16" 2 13/16" 1/2" 13 5/8" 13 1/2" 12 3/4" 125 154 26 7/8" X 30 1/16" X 32 9/16"
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
18 26" X 26"
24,30 31 1/2" X 31 1/2"
36 THRU 60 35" X 35"
AIR
DISCHARGE
AIR DISCHARGE
SQ.
AIR IN
VAPOR LINE CONN.
D
3/8"
LIQUID LINE CONN.
AIR IN
AIR IN
AIR IN
3/8" TIEDOWN KNOCKOUTS
(2) PLACES
FIELD CONTROL
SUPPLY CONN.
7/8" HOLE
FIELD POWER SUPPLY CONN.
7/8" HOLE WITH
1 1/8" KNOCKOUT
X = YES
O = NO
NOTES:
1. ALLOW 30" CLEARANCE TO SERVICE SIDE OF UNIT,
48" ABOVE UNIT, 6" ON ONE SIDE, 12" ON REMAINING SIDE,
AND 24" BETWEEN UNITS FOR PROPER AIRFLOW.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING
MODE IS 55° F, MAX. 125° F.
3. SERIES DESIGNATION IS THE 10TH POSITION OF THE
UNIT MODEL NUMBER.
4. CENTER OF GRAVITY .
5. ALL DIMENSIONS ARE IN "INCHES" UNLESS NOTED.
116B
