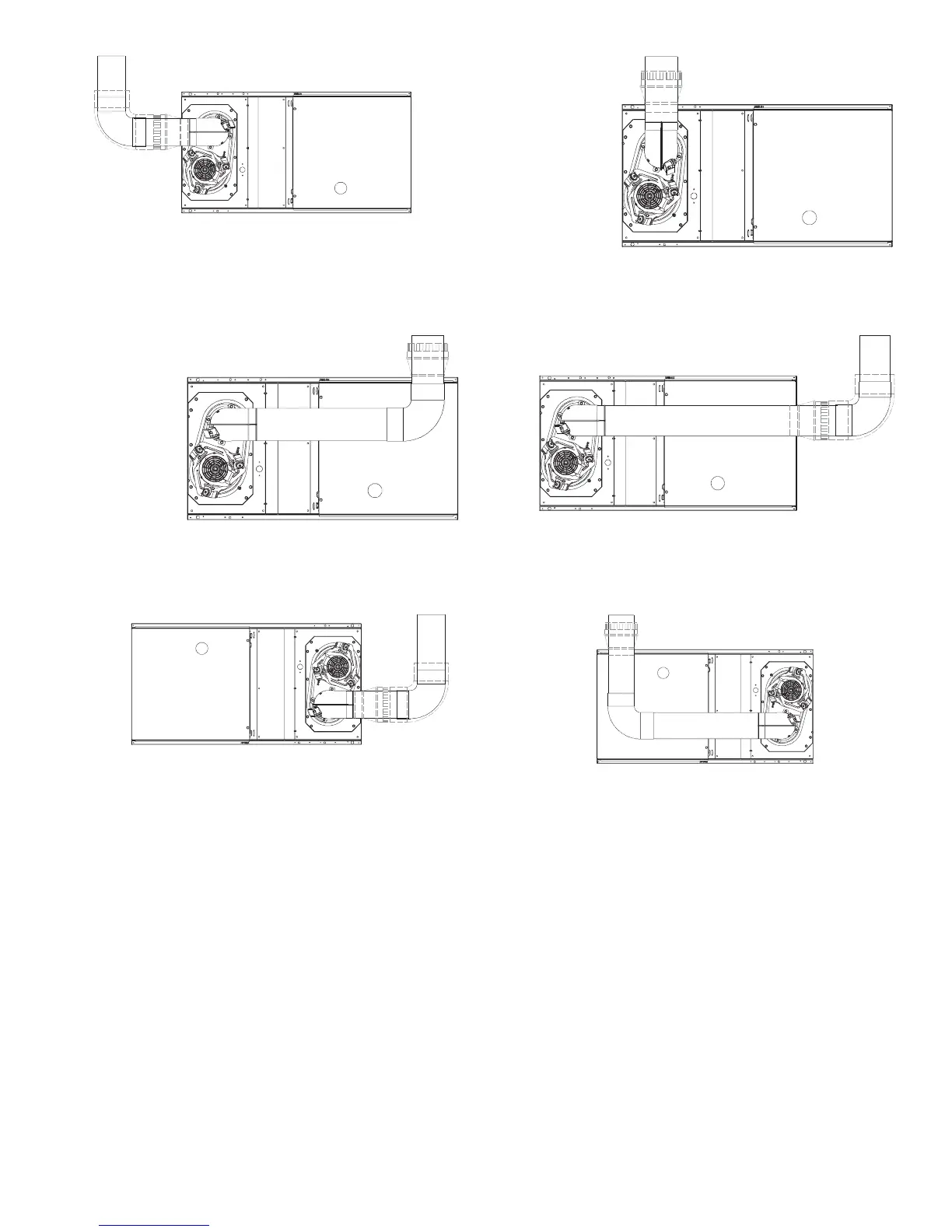

Fig. 40—Horizontal Left Application-Vent Elbow Left

Fig. 41—Horizontal Left Application-

Vent Elbow Right then Up

A03214

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03215

Fig. 42—Horizontal Left Application-Vent Elbow Up

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03216

Fig. 43—Horizontal Left Application-Vent Elbow Right

SEE NOTES: 1,2,4,7,8,9 on the page

following these figures

A03218

Fig. 44—Horizontal Right Application-

Vent Elbow Right

SEE NOTES: 1,2,4,5,7,8,9 on the page

following these figures

A03219

Fig. 45—Horizontal Right Application-

Vent Elbow Left then Up
