PERFORMANCE DATA (cont)
0
500
1000
1500
2000
2500
0.05" 0.15" 0.25"
Static Pressure (in. wg)
Flow in cubic feet per minute (cfm)
3-6 Ton
7 1/2 - 12 1/2 Ton
0
5
10
15
20
25
30
0.1" 0.2" 0.3" 0.4" 0.5"
Static Pressure (in. wg)
Flow in cubic feet per minute (cfm)
3-6 Ton
7 1/2 - 12 1/2 Ton

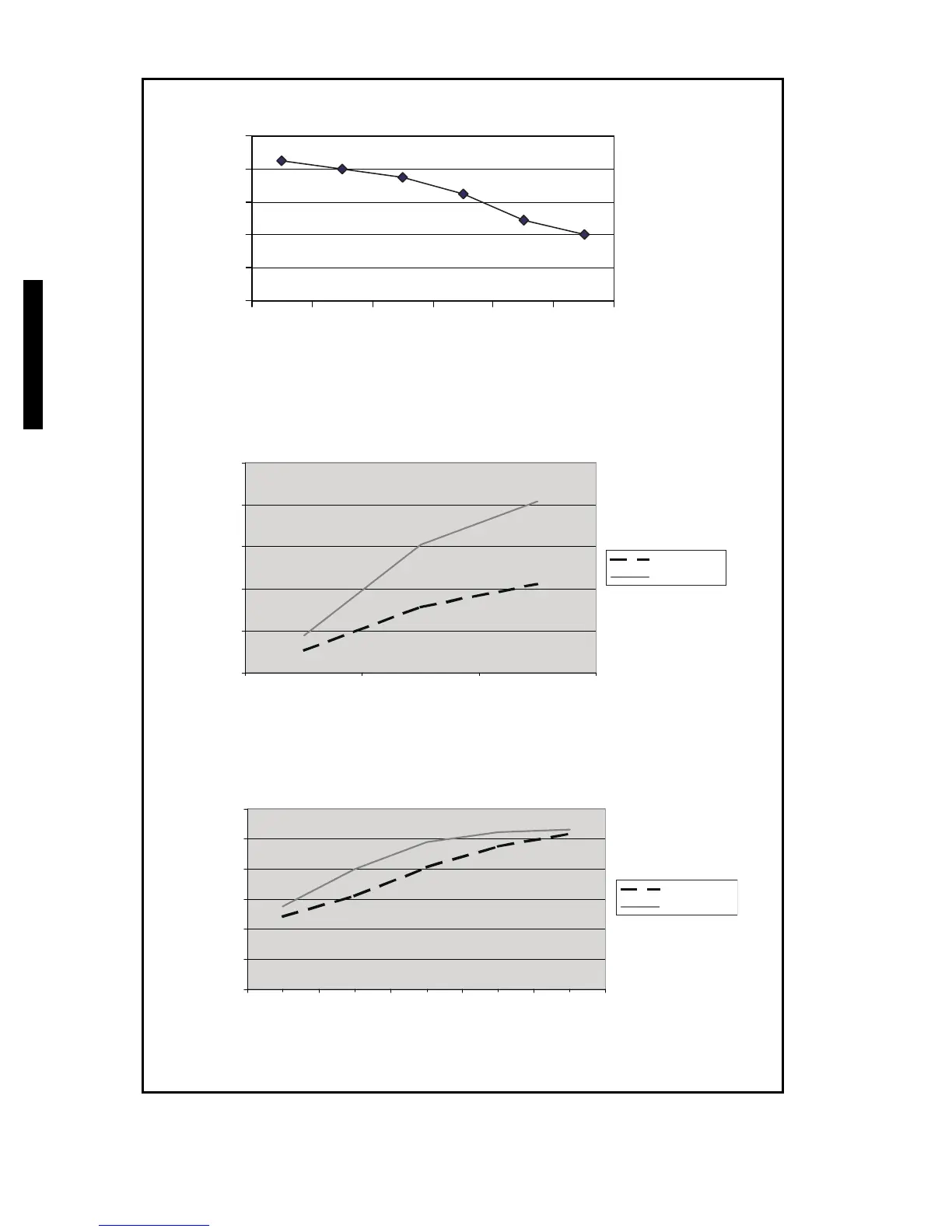

Horizontal EconoMi$er IV and EconoMi$er2
Performance Data (581B036-150)
0
500
1000
1500
2000
2500
0 0.1 0.2 0.3 0.4 0.5
STATIC PRESSURE (in. wg)
FLOW (cfm)
HORIZONTAL POWER EXHAUST PERFORMANCE
BAROMETRIC RELIEF CAPACITY
OUTDOOR AIR DAMPER LEAKAGE
a48-6225
a48-6224
a48-6309
581B036-150
