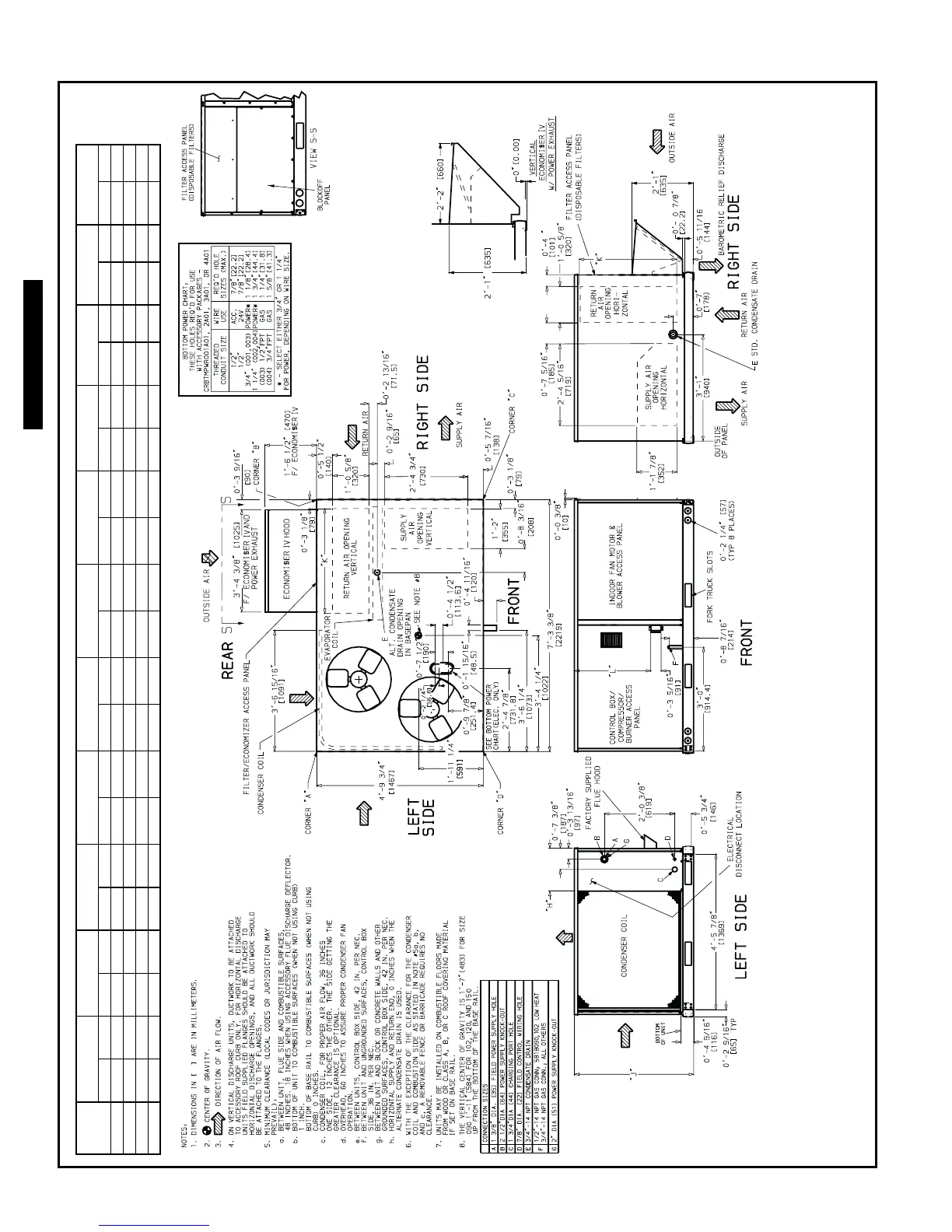

BASE UNIT DIMENSIONS — 581B090-150
UNIT
581B
STD UNIT
WEIGHT
ECONOMI$ER IV
WEIGHT
VERT. ECON IV
W/P.E. WEIGHT
(A)
CORNER WEIGHT
(B)
CORNER WEIGHT
(C)
CORNER WEIGHT
(D)
CORNER WEIGHT
“H” “J” “K” “L”
Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg ft-in. mm ft-in. mm ft-in. mm ft-in. mm
090 870 395 75 34.1 145 65.9 189 86 161 73 239 109 280 127 2-0
7
/
8
632 3-5
5
/
16
1050 2-9
11
/
16
856 2- 2
7
/
16
672
102 1015 460 75 34.1 145 65.9 223 101 188 85 279 126 327 148 1-2
7
/
8
378 4-1
5
/
16
1253 3-0
3
/
8
924 2-10
7
/
16
875
120 1035 469 75 34.1 145 65.9 225 102 192 87 285 129 333 151 1-2
7
/
8
378 4-1
5
/
16
1253 3-0
3
/
8
924 2-10
7
/
16
875
150 1050 476 75 34.1 145 65.9 228 103 195 88 289 131 338 153 1-2
7
/
8
378 4-1
5
/
16
1253 3-0
3
/
8
924 2-10
7
/
16
875
a48-8200
581B036-150
