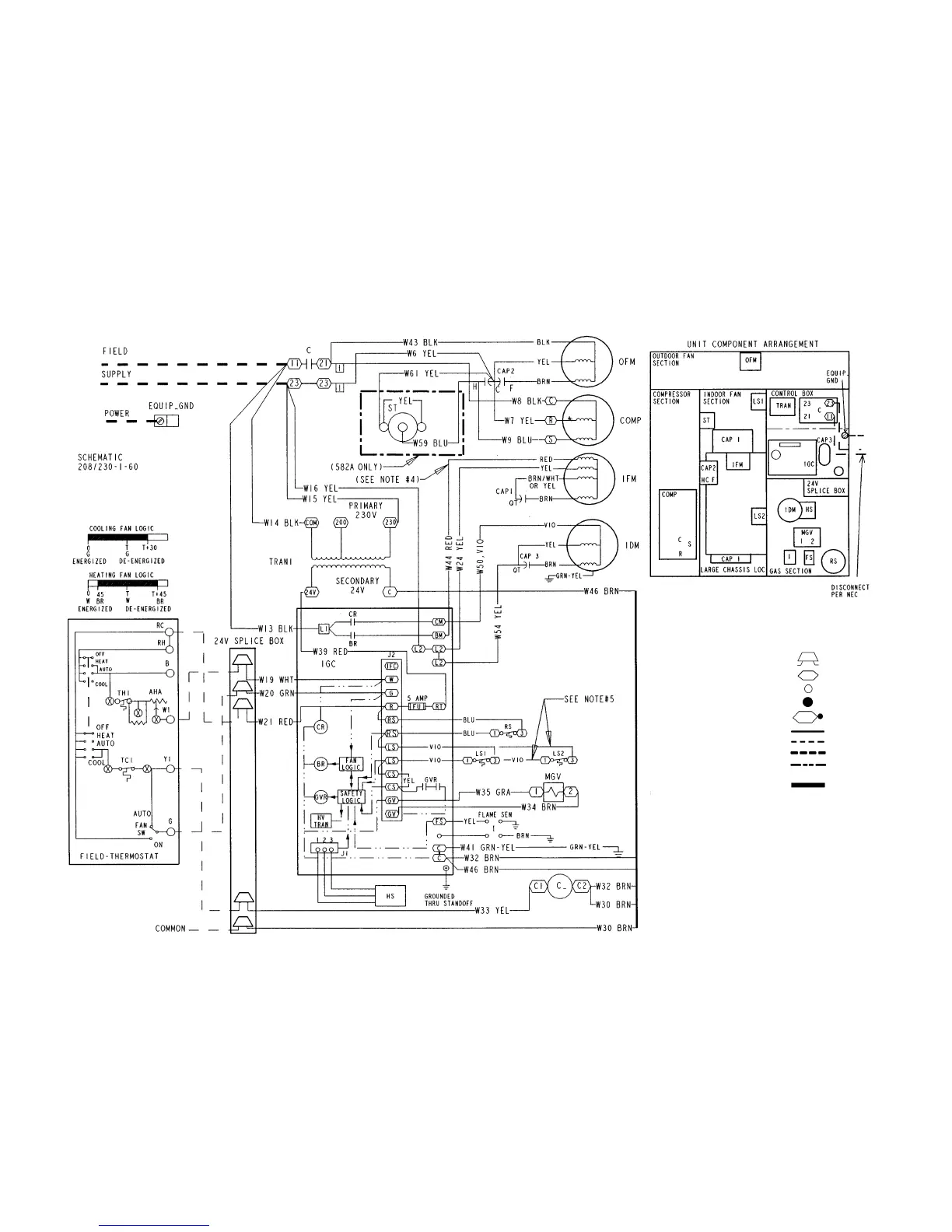

Fig. 15 — 208/230-1-60 Wiring Diagram, Units 582A and 583A
LEGEND
BR — Blower Relay
C—Contactor
CAP — Capacitor
COMP — Compressor Motor
CR — Combustion Relay
EQUIP — Equipment
FS — Fusible Link
FU — Fuse
GND — Ground
GVR — Gas Valve Relay
HS — Hall Effect Sensor
HV
TRAN
— High Voltage Transformer
I—Ignitor
IDM — Induced-Draft Motor
IFM — Indoor-Fan Motor
IGC — Integrated Gas Unit
Controller
LS — Limit Switch
MGV — Main Gas Valve
NEC — National Electrical Code
OFM — Outdoor-Fan Motor
QT — Quadruple Terminal
RS — Rollout Switch
ST — Thermistor Start
TRAN — Transformer
Field Splice
Terminal (Marked)
Terminal (Unmarked)
Splice
Splice (Marked)
Factory Wiring
Field Control Wiring
Field Power Wiring
Accessory or Optional
Wiring
To Indicate Common
Potential Only, Not
to Represent Wiring
NOTES:
1. If any of the original wires furnished are replaced, they must be replaced with
type 90 degree C wire or its equivalent.
2. See price pages for thermostat and subbases.
3. Use 75 degree copper conductors for field installation.
4. For high speed IFM, disconnect RED wire from IGC:BM and connect BLK wire
from IFM. For medium speed, disconnect RED wire from IGC:BM and connect
BLU wire from IFM.
5. Models 582A018-042 and 583A024-036 have LS1 and LS2 wired in series.
Models 582A048,060 and 583A042-060 have LS1 only.
—19—
