Bryant 594D User Manual

—2—
ACCESS
PANEL
1
1
/4
"

1. Allow 30 in.
clearance to service end of unit, 48 in. above unit, 6 in. on one side, 12 in. on remaining side,
and 24 in. between units for proper airflow. Minimum outdoor operating ambient in cooling mode is 55°F (unless low-ambient control is used) max 125°F.2. Series designation is the 14th position of the unit model number.3. Center of gravity .4.
NOTES:
AIR DISCHARGE
AIR DISCHARGE
AIR IN
AIR IN
AIR IN
2
1
/2
"
AIR DISCHARGE
1
3
/4
"
4
3
/16
"
3
/8-IN.
DIA LIQUID
LINE CONN
H
DIA VAPOR
LINE CONN
8
3
/16
"
7
/8-IN.
DIA HOLE
FIELD POWER SUPPLY CONN
7
/8-IN.
DIA
HOLE WITH 1
1
/8-IN.
DIA KNOCKOUT (ALL SIZES)
AND 1
3
/8-IN.
DIA KNOCKOUT
(042 THRU 060 SIZES ONLY)
3
/8-IN.
DIA TIEDOWN KNOCKOUTS
(2) PLACES IN BASEPAN
10
1
/2
"
FIELD CONTROL SUPPLY CONN  
1
9
/16
"
L
C
F
N
G
A
B
M
K
E
D
C
L
A97001

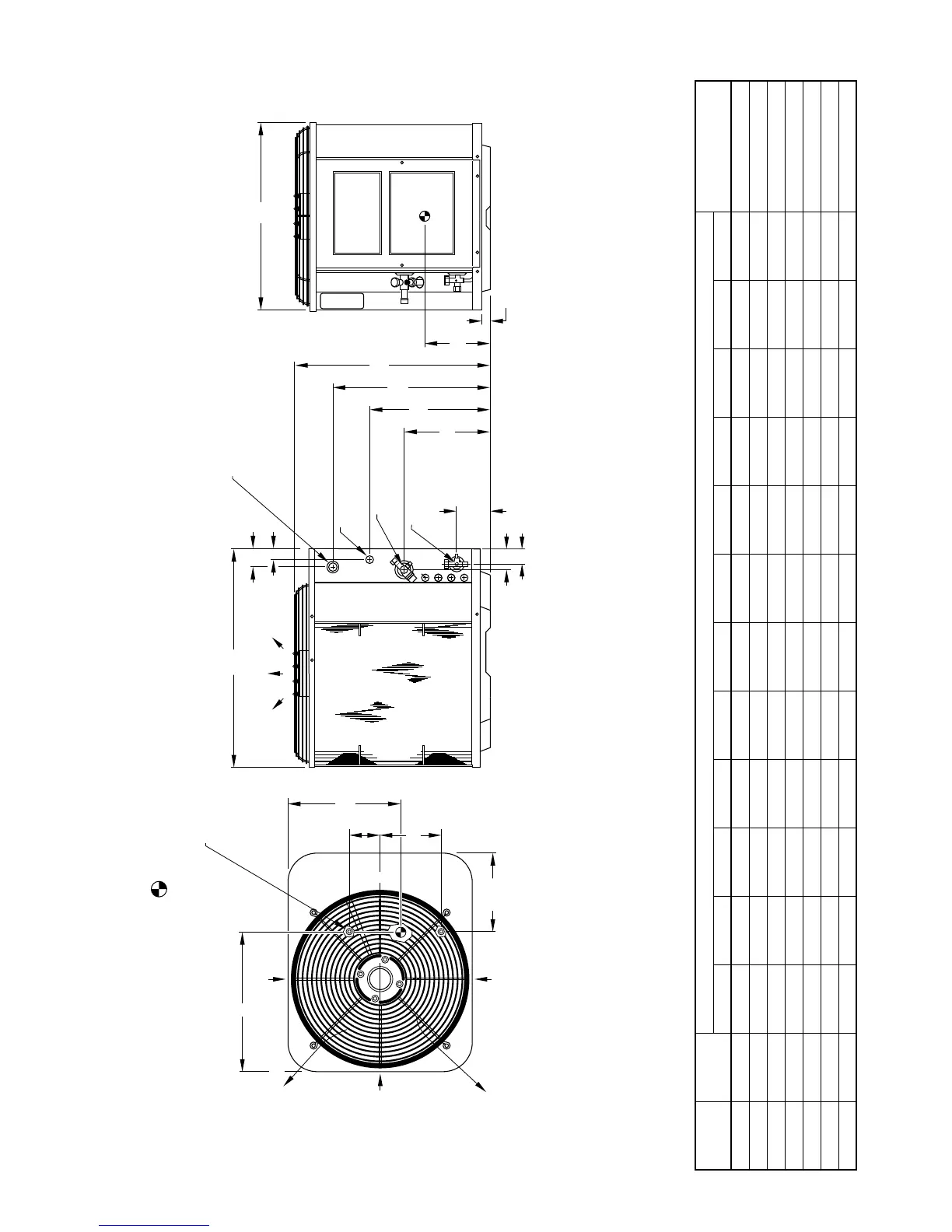

DIMENSIONS (IN.)
UNIT
SIZE SERIES
UNIT DIMENSIONS
MINIMUM MOUNTING
PAD DIMENSIONSABCDEFGHKLMN
018 E 23-13/16 22-1/2 26-3/16 4-1/8 7-1/8 13-13/16 18-3/8 5/8 12 14-5/8 10 2-3/8 20 x 27 024 E 27-13/16 22-1/2 26-3/16 4-1/8 7-1/8 15-15/16 22-3/8 5/8 12 14-5/8 11 2-3/8 20 x 27 030 E 27-13/16 22-1/2 26-3/16 4-1/8 7-1/8 15-15/16 22-3/8 3/4 12 14-5/8 11 2-3/8 20 X 27 036 E 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 3/4 16-1/4 20-3/8 11 2-15/16 26 X 32 042 E 33-13/16 30 33 5-1/16 9-11/16 21-15/16 28-3/8 7/8 16-1/4 20-3/8 13-1/2 2-15/16 26 X 32 048 E, F 33-13/16 30 33 5-1/16 9-11/16 21-15/16 28-3/8 7/8 16-3/4 20-3/8 13-1/2 2-15/16 26 x 32 060 E 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 7/8 16-3/4 20-3/8 15 2-15/16 26 x 32
