14 Specifications subject to change without notice. II619AHB-02

ELECTRICAL DATA

Table 6 — Electrical Data

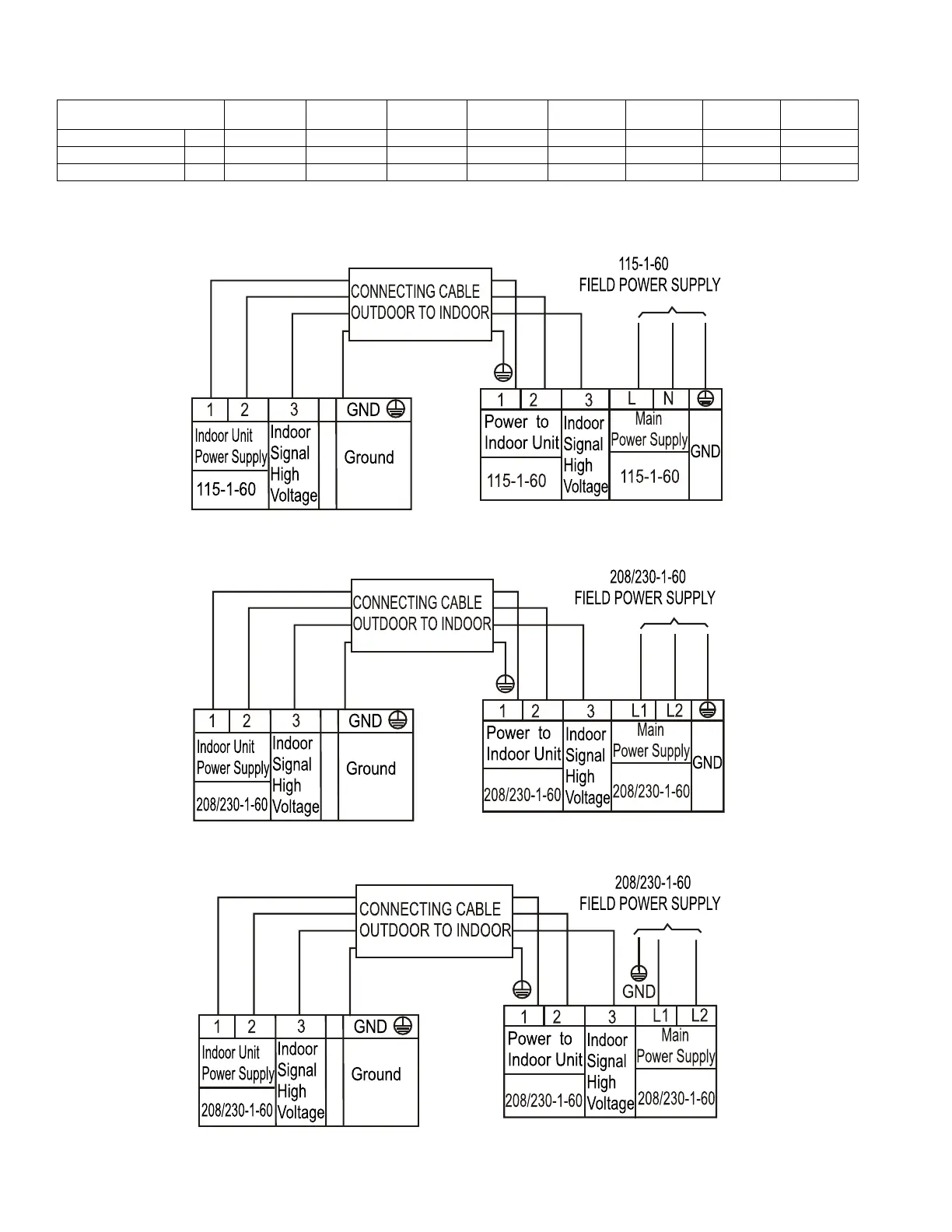

CONNECTION DIAGRAMS

Fig. 23 — Connection Diagram 12K (115V)

Fig. 24 — Connection Diagram 6K - 18K (208/230V)

Fig. 25 — Connection Diagram 24K - 36K (208/230V)

HIGH WALL

INDOOR UNITS HP

12K

(115V)

(208/230V)

12K

(208/230V)

18K

(208/230V)

24K

(208/230V)

30K

(208/230V)

36K

(208/230V)

Running Current (A) 0.467 0.182 0.182 0.182 0.11 0.364 0.364 0.364

Power Consumption (W) 20 20 20 20 30 58 58 58

Power Factor (%) 81.54 95 98 95.2 70.2 94 96.5 98.7
