Bryant 619AHB Installation Instructions

4 Specifications subject to change without notice. II619AHB-02
PARTS

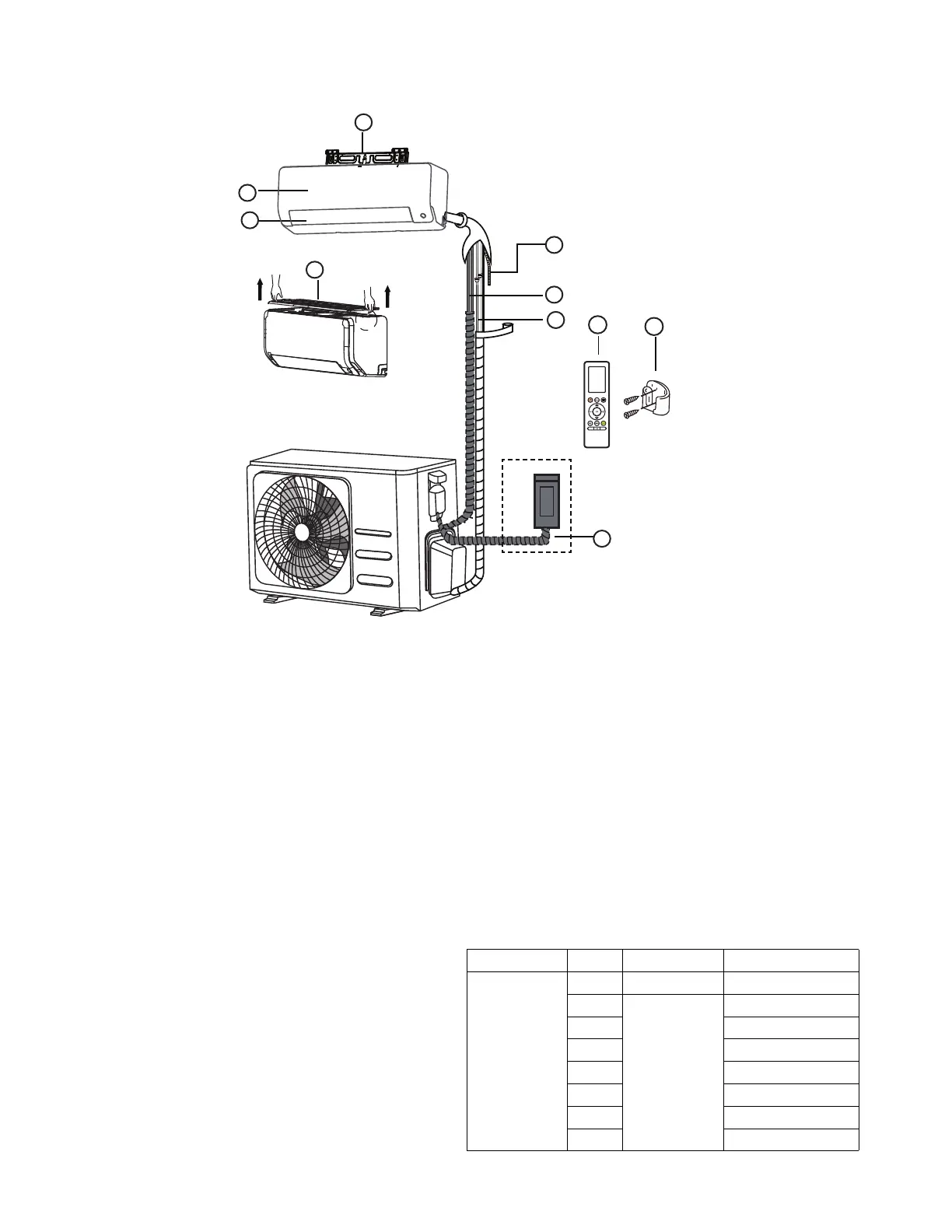

Fig. 2 — Parts
NOTE: Illustrations in this manual are for reference only. The actual shape of the indoor unit and parts may differ slightly.
1. Wall Mounting Plate
2. Front Panel
3. Louver
4. Air Filter
5. Drainage Pipe
6. Signal Cable
7. Refrigerant Piping
8. Remote Controller
9. Remote Controller Holder (some units)
10. Outdoor Unit Power Cable (some units)
NOTES:
- If the outdoor unit is higher than the indoor unit, prevent
rain from flowing into the indoor unit along the
connection pipe by making a inverted trap in the
connection pipe before it enters the wall to the indoor
unit. This ensures that rain drips from the connection
pipe before it enters the wall.
- Piping and the interconnecting wiring are field supplied.
- The illustration above (Fig. 2) is only a sketch. Different
models may be differ slightly.
The units listed in Table 3 are addressed in these installation
instructions.
Table 3 — Indoor Units
1
2
3
5
6
7
8
9
10
4
Humidity
Boost
DESCRIPTION BTUH V-PH-HZ ID MODEL NO.
HIGH WALL
HEAT PUMP
12 115-1-60 619AHBQ12XA1
6
208/230-1-60
619AHBQ06XA1
9 619AHBQ09XA3
12 619AHBQ12XA3
18 619AHBQ18XA3
24 619AHBQ24XA3
30 619AHBQ30XA3
36 619AHBQ36XA3
