Bryant 619PEQ018BBMA - DIMENSIONS

5
DIMENSIONS

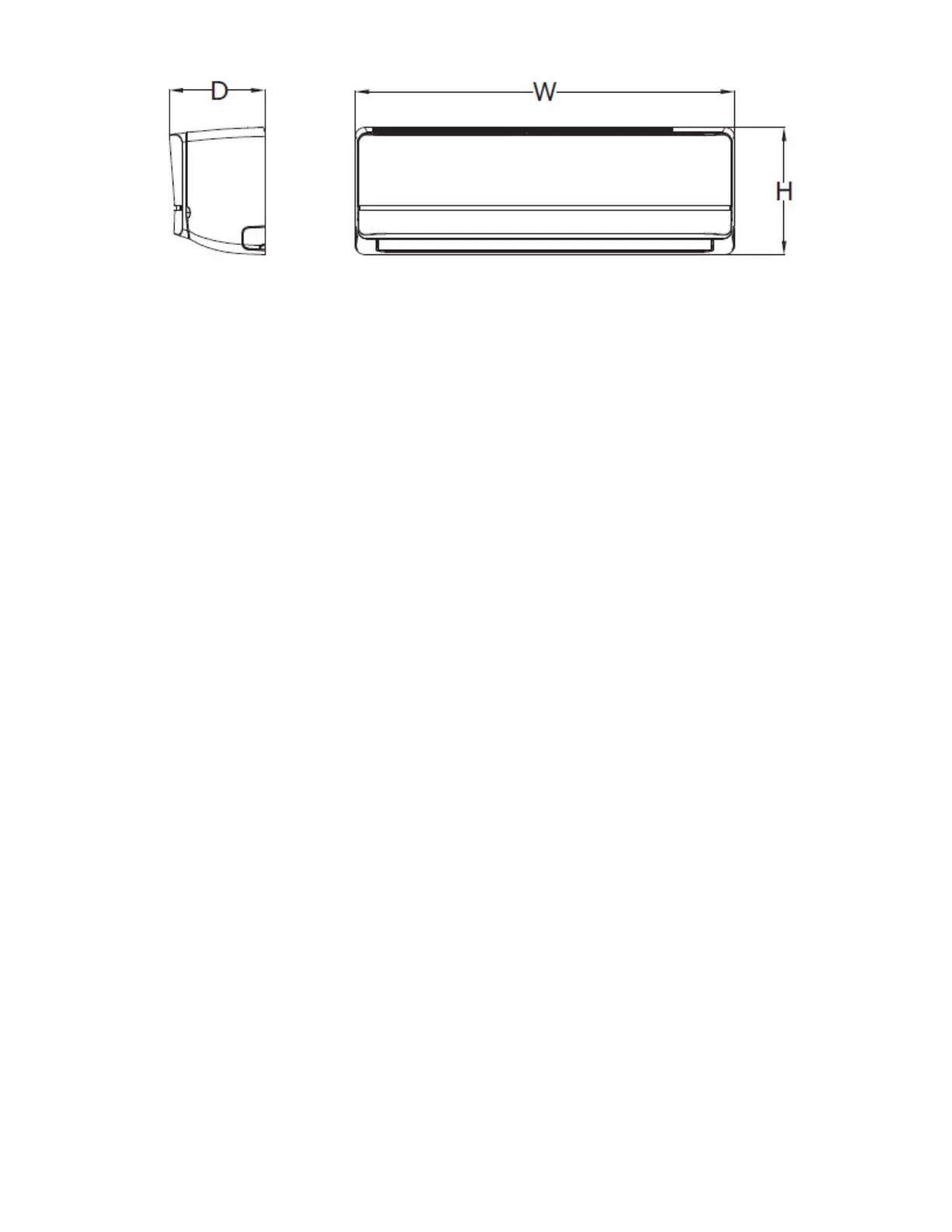

Fig. 2 - Indoor Unit
Table 4—Dimensions
HIGH WALL UNIT SIZE 9K 12K 9K 12K 18K 24K 30K 36K
Voltage (115V) (115V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V) (208/230V)
Height In (mm) 11.07 (281) 11.07 (281) 11.07 (281) 11.07 (281) 12.40 (315) 13.39 (343) 13.39 (343) 13.39 (343)
Width In (mm) 33.17 (842) 33.17 (842) 33.17 (842) 33.17 (842) 38.98 (990) 46.69 (1186) 46.69 (1186) 46.69 (1186)
Depth In (mm) 8.75 (222) 8.75 (222) 8.75 (222) 8.75 (222) 8.58 (218) 10.16 (258) 10.16 (258) 10.16 (258)
Weight-Net Lbs (kg) 19.18 (8.7) 19.18 (8.7) 19.18 (8.7) 19.18 (8.7) 24.46 (12.0) 40.12 (18.2) 40.12 (18.2) 40.12 (18.2)
