ELECTRICAL DATA
Table 5—Electrical Data
UNIT SIZE
OPER. VOLTAGE INDOOR FAN
MAX / MIN*
V-PH-HZ FLA HP W
MAX FUSE CB AMP
9
253 / 187 208-230/1/60
0.146 0.061 46
Refer to outdoor unit installation instructions –
Indoor unit powered by the outdoor unit
12 0.146 0.061 46
18 0.146 0.061 46
n
oor un
powere
y
e ou
oor un
*Permissible limits of the voltage range at which the unit will operate satisfactorily.
LEGEND
FLA - Full Load Amps

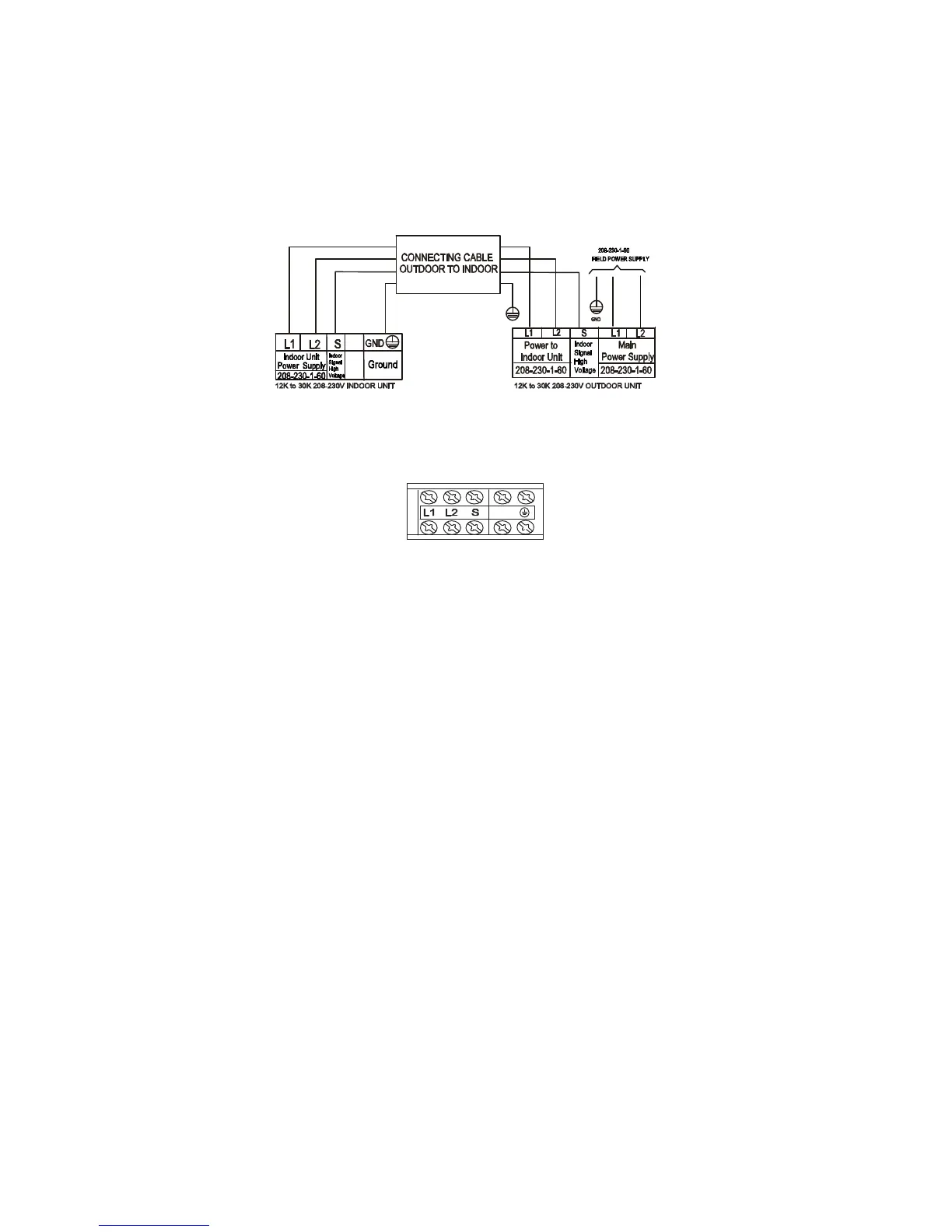

CONNECTION DIAGRAMS
A150634
Fig. 26 - Connection Diagrams
Notes:
1. Do not use the thermostat wire for any connection between indoor and outdoor units.
2. All connections between the indoor and outdoor units must be as shown. The connections are sensitive to polarity and will result in a fault code.
A150635
Fig. 27 - Control and Power Wiring on Indoor Unit
To Next Page
