5
DIMENSIONS − INDOOR
Panel
Gas side
Liquid side
4-install hanger
Body
Drain pipe
0
.
9
8
(2
5
)
Outside Air Intake
2
.
5
6
(
6
5)
25.47(647)
25.47(647)
1.97(50)
Drain hole
( for Service )
21.46(545)
22.44(570)
10.24(260)
2.67(68)
1.65(42)
6.18(157)
4.96(126)
1.73(44)
Wiring connection port
2
.
9
5
(7
5
)
E-parts box
4-Screw hole
(for install panel)
20.59(523)
22.44(570)
Wiring connection port

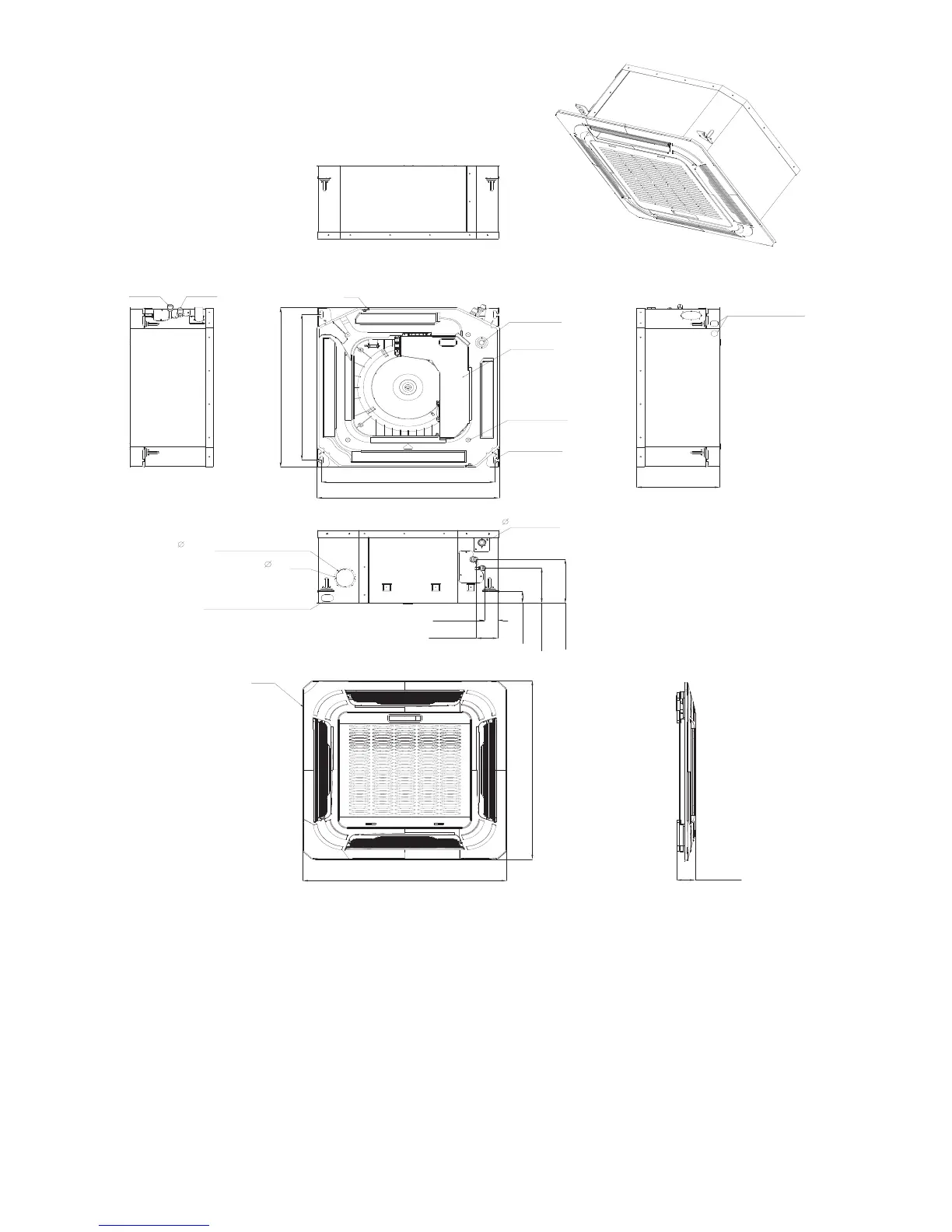

Fig. 2 - Indoor Unit
Table 4—Dimensions Indoor
UNIT SIZE
9 12 18
BODY PANEL BODY PANEL BODY PANEL
DIMENSIONS
Height in(mm) 10.24 (260) 1.97 (50) 10.24 (260) 1.97 (50) 10.24 (260) 1.97 (50)
Width in(mm) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647)
Depth in(mm) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647) 22.44 (570) 25.47 (647)
PACKING
Height in(mm) 11.42 (290) 4.84 (123) 11.42 (290) 4.84 (123) 11.42 (290) 4.84 (123)
Width in(mm) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715)
Depth in(mm) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715) 25.79 (655) 28.15 (715)
Weight-Gross lbs(kg) 41.88 (19) 9.92 (4.5) 41.88 (19) 9.92 (4.5) 46.3 (21) 9.92 (4.5)
Weight-Net lbs(kg) 35.27 (16) 5.51 (2.5) 35.27 (16) 5.51 (2.5) 39.68 (18) 5.51 (2.5)
