3
PARTS LIST
Table 1—Parts List
PART NO. PART NAME
1 Air flow louver (at air outlet)
2 Drain pump (drain water from the indoor unit)
3 Drain pipe (Field Supplied)
4 Air outlet
5 Air filter (inside grille/ceiling panel)
6 Air inlet
7 Grille/Ceiling panel (Required - sold separately)
8 Display panel
9 Remote controller
10 Refrigerant pipe (Field Supplied)

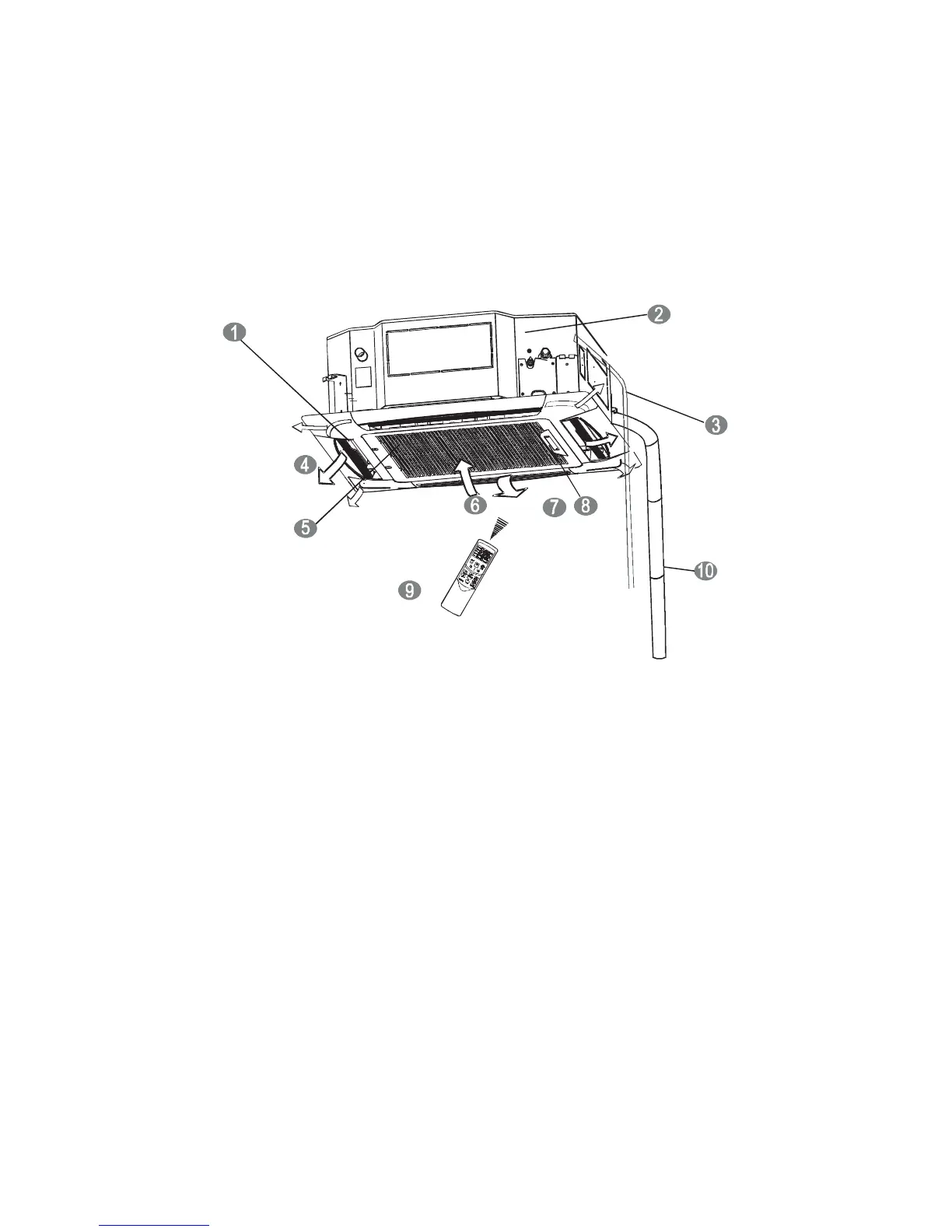

Fig. 1 - Parts List
Note:
- If the outdoor unit is higher than the indoor unit, prevent rain from flowing into the indoor unit, along the connection pipe, by creating a downward arc
in the connection pipe before it enters the wall to the indoor unit. This ensures that rain drips from the connection pipe before entering the wall.
- Piping and the interconnecting wiring are field supplied.
- Fig.1 is only a sketch. Different models may differ slightly.
See Table 2 for the units covered in these installation instructions.
Table 2—Indoor Units
kBTUh V-Ph-Hz ID Model No.
9 208/230-1-60 619REQ009CBMA
12 208/230-1-60 619REQ012CBMA
18 208/230-1-60 619REQ018CBMA
