810SA/811SA: Installation, Start–Up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
24
A03211

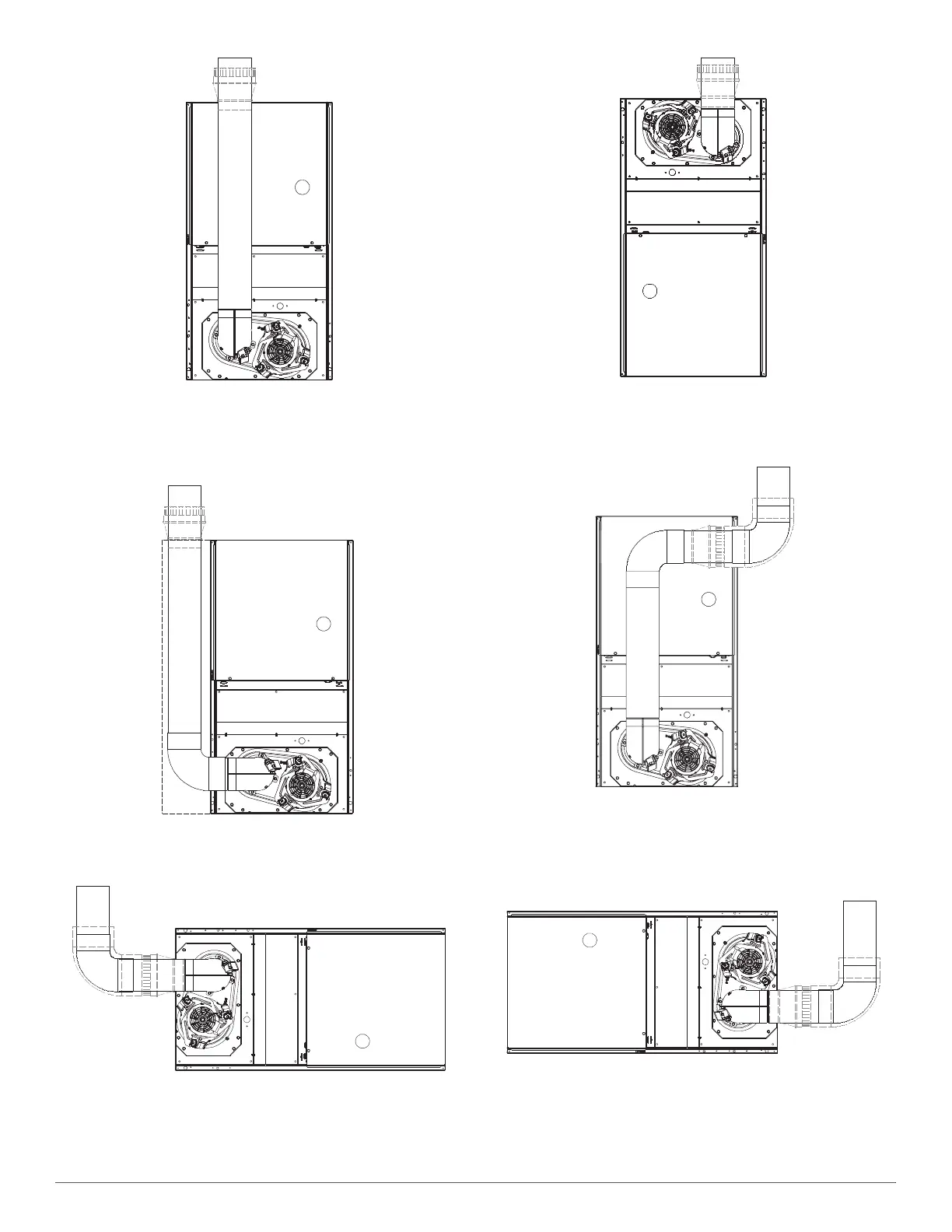

Fig. 33 – Downflow Application-Vent Elbow Up
A03207
Fig. 34 – Downflow Application-Vent Elbow Left then Up
A03213
Fig. 35 – Horizontal Left Application-Vent Elbow Left
A03208
Fig. 36 – Upflow Application-Vent Elbow Up
A03212
Fig. 37 – Downflow Application-Vent Elbow Up then Right
A03218
Fig. 38 – Horizontal Right Application-Vent Elbow Right
SEE NOTES: 1,2,4,5,7,8,9
on the page following
these figures
SEE NOTES: 1,2,4,5,6,7,8,9
on the page following these figures
SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
SEE NOTES: 1,2,4,7,8,9
on the page following
these figures
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures.
SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
