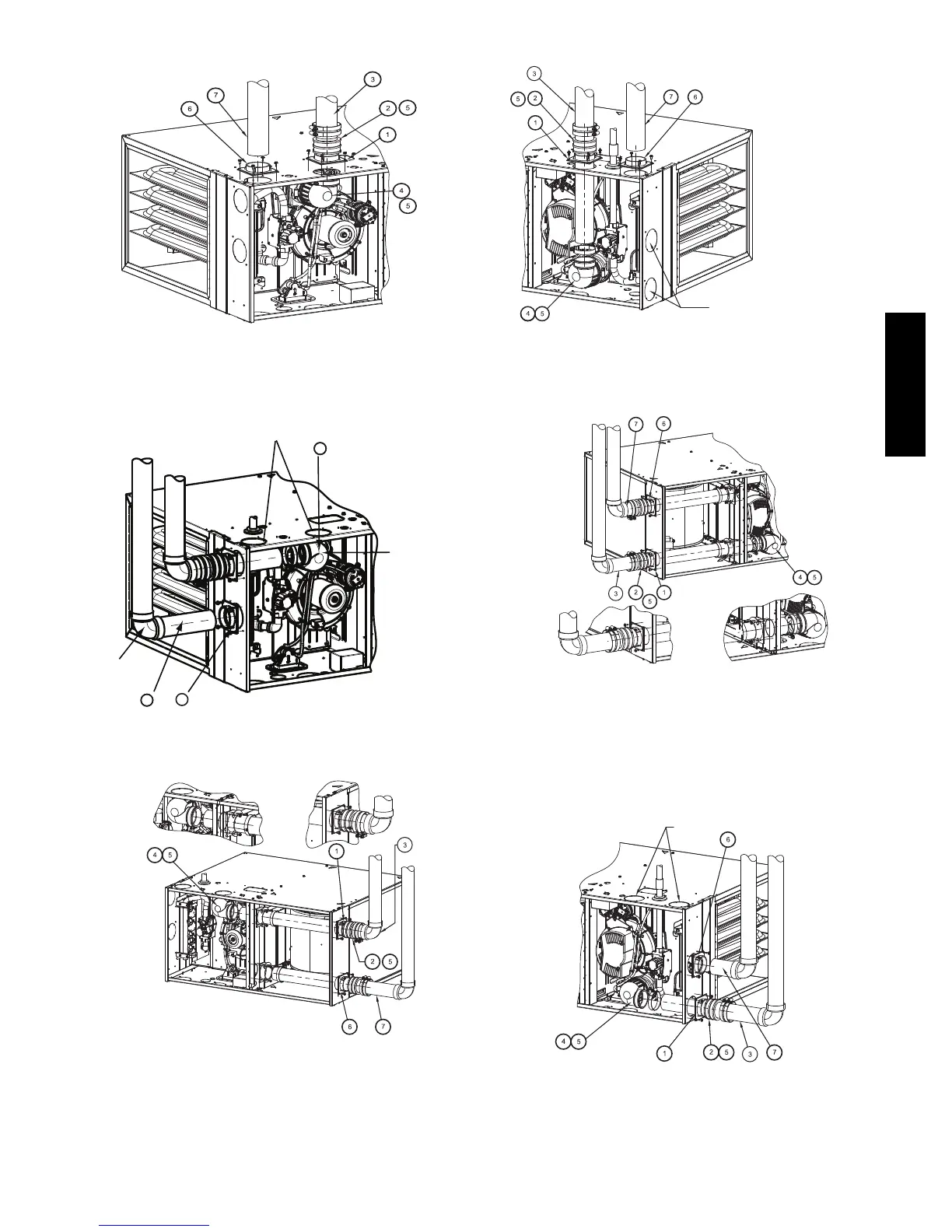

HORIZONTAL LEF T---VERTICAL VENT CONFIGURATION
A11327A
6
4
Alternate combustion air
connection.
Rotate vent
elbow to
required
position.
4
5
Vent Pipe
HORIZONAL LEFT---LEF T VENT CONFIGURATION
A11328A
Requires Accessory Vent Kit
See Product Data for
Current Kit Number
HORIZONTAL LEF T---RIGHT VENT CONFIGURATION
A11329A
Fig. 41 -- Horizontal Left (Appearance may vary)
See “Notes for Venting Options”
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT---VERTICAL VENT CONFIGURATION
A11337
Requires Internal Vent Kit
See Product Data for Current Kit Number
HORIZONTAL RIGHT---LEFT VENT CONFIGURATION
A11336
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT---RIGHT VENT CONFIGURATION
A11335
Fig. 42 -- Horizontal Right (Appearance may vary)
See “Notes for Venting Options”
