186CNV / 284ANV: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
31
A200194

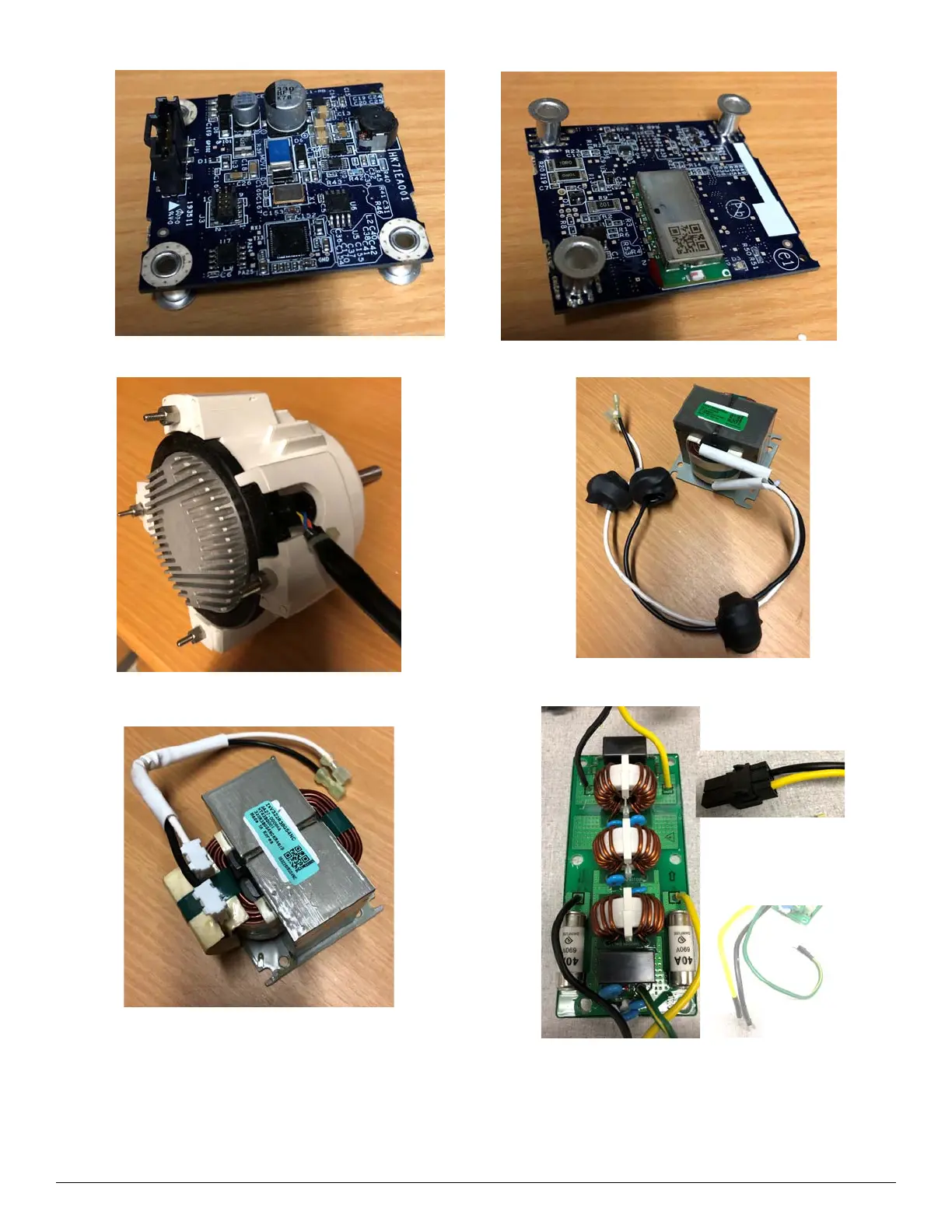

Fig. 25 – Bluetooth Module (used on all models)
A200195
Fig. 26 – Fan Motor (used on all models)
A200196
Fig. 27 – 2/3/4T Rector
(Note: 4Tuses 2 reactors)
A200197
Fig. 28 – 5T Reactor (Note: 5T uses 2 reactors)
A200198
Fig. 29 – Filter Input Board (used on all models)
