186CNV / 284ANV: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
4

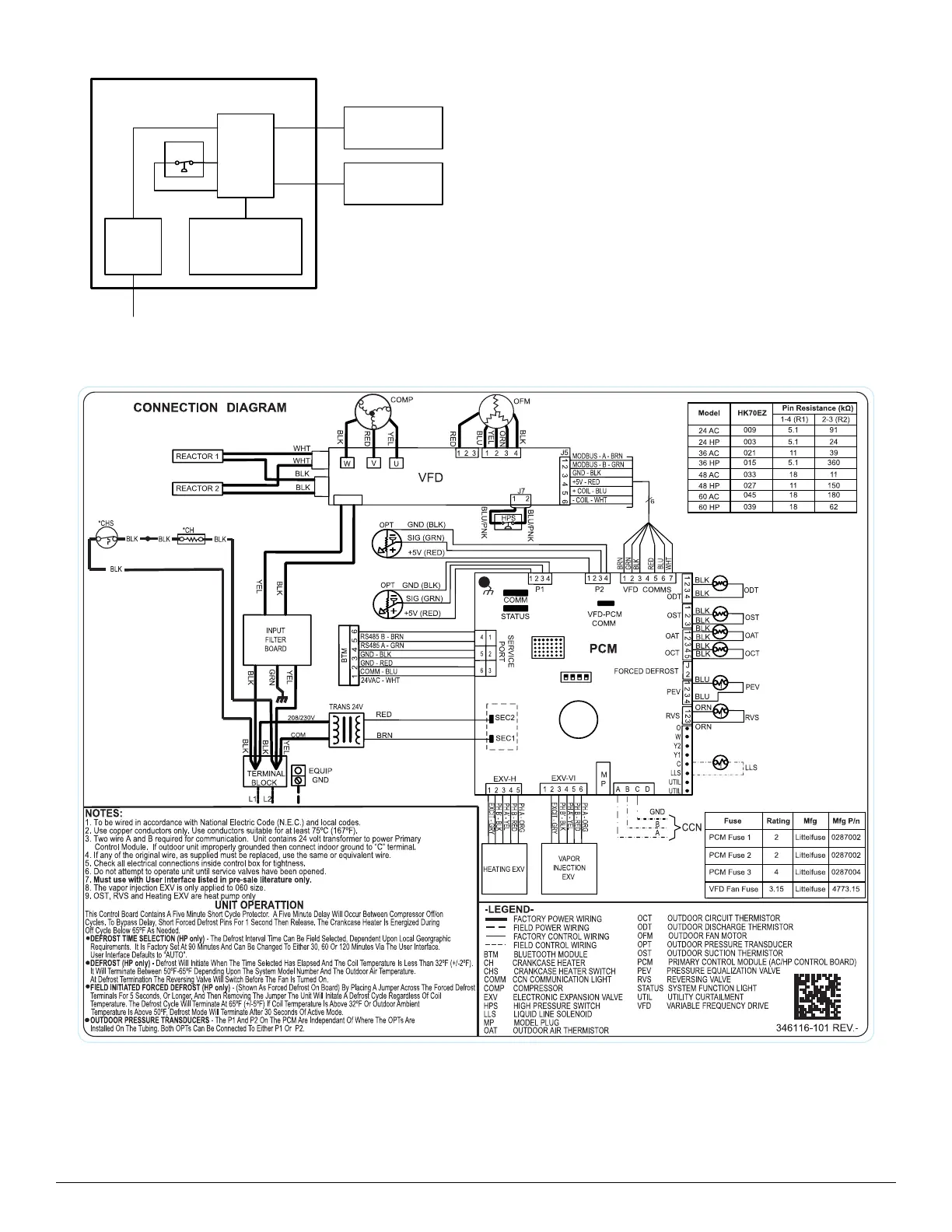

Fig. 2 – Compressor / Fan Sub-System Diagram
Fig. 3 – Wiring Diagram — 186CNV / 284ANV Model sizes 2 - 5 tons, 208/230-1
FILTER
REACTOR(S)
1 on 2, 3 ton
2 on 4, 5 ton
VFD
COMPRESSOR
FAN
VFD SUB-SYSTEM
HPS
Line Power
