186CNV / 284ANV: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
7
A200049
A200044

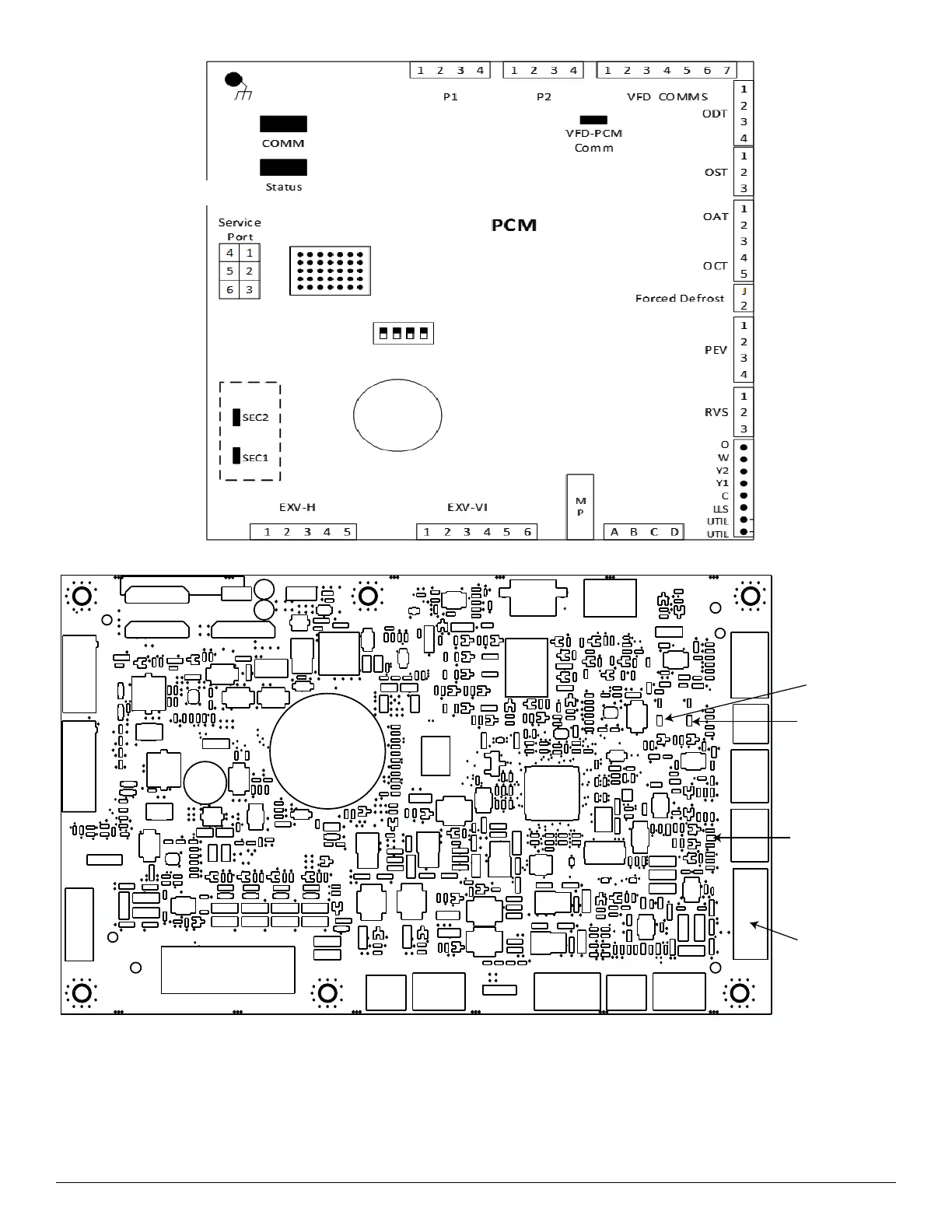

Fig. 7 – PCM Control Board
Bluetooth
Service Port
Status LED
(Yellow)
CCN Communication
LED (Green)
VFD LED (Red / Green)
VFD-PCM
Communication Port
