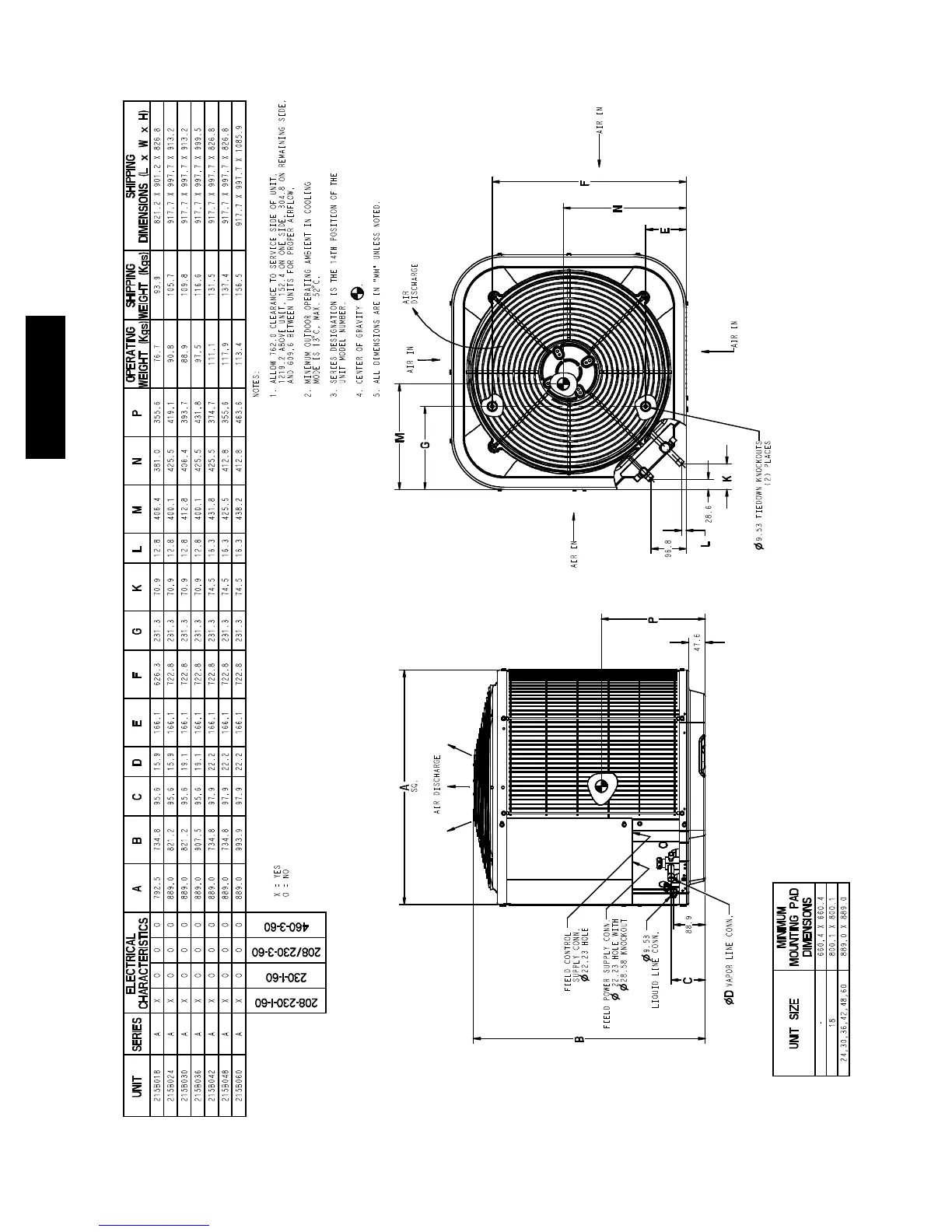

DIMENSIONS -- SI
B
96.8
K
28.6
L
C
88.9
47.6
N
P
M
E
F
G
A
208-230-1-60
230-1-60
208/230-3-60
460-3-60
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
- 660.4 X 660.4
18 800.1 X 800.1
24,30,36,42,48,60 889.0 X 889.0
UNIT SERIES
ELECTRICAL
CHARACTERISTICS
ABCDEFGKLMNP
OPERATING
WEIGHT (Kgs)
SHIPPING
WEIGHT (Kgs)
SHIPPING
DIMENSIONS (L x W x H)
215B018 A X O O O 792.5 734.8 95.6 15.9 166.1 626.3 231.3 70.9 12.8 406.4 381.0 355.6 76.7 93.9 821.2 X 901.2 X 826.8
215B024 A X O O O 889.0 821.2 95.6 15.9 166.1 722.8 231.3 70.9 12.8 400.1 425.5 419.1 90.8 105.7 917.7 X 997.7 X 913.2
215B030 A X O O O 889.0 821.2 95.6 19.1 166.1 722.8 231.3 70.9 12.8 412.8 406.4 393.7 88.9 109.8 917.7 X 997.7 X 913.2
215B036 A X O O O 889.0 907.5 95.6 19.1 166.1 722.8 231.3 70.9 12.8 400.1 425.5 431.8 97.5 116.6 917.7 X 997.7 X 999.5
215B042 A X O O O 889.0 734.8 97.9 22.2 166.1 722.8 231.3 74.5 16.3 431.8 425.5 374.7 111.1 131.5 917.7 X 997.7 X 826.8
215B048 A X O O O 889.0 734.8 97.9 22.2 166.1 722.8 231.3 74.5 16.3 425.5 412.8 355.6 117.9 137.4 917.7 X 997.7 X 826.8
215B060 A X O O O 889.0 993.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 438.2 412.8 463.6 113.4 156.5 917.7 X 997.7 X 1085.9
AIR DISCHARGE
SQ.
AIR
DISCHARGE
AIR IN
VAPOR LINE CONN.
D
AIR IN
AIR IN
AIR IN
9.53 TIEDOWN KNOCKOUTS
(2) PLACES
FIELD CONTROL
SUPPLY CONN.
22.23 HOLE
FIELD POWER SUPPLY CONN.
22.23 HOLE WITH
28.58 KNOCKOUT
X = YES
O=NO
NOTES:
1. ALLOW 762.0 CLEARANCE TO SERVICE SIDE OF UNIT,
1219.2 ABOVE UNIT, 152.4 ON ONE SIDE, 304.8 ON REMAINING SIDE,
AND 609.6 BETWEEN UNITS FOR PROPER AIRFLOW.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING
MODE IS 13
C, MAX. 52
3. SERIES DESIGNATION IS THE 14TH POSITION OF THE
UNIT MODEL NUMBER.
4. CENTER OF GRAVITY .
5. ALL DIMENSIONS ARE IN "MM" UNLESS NOTED.
215B
