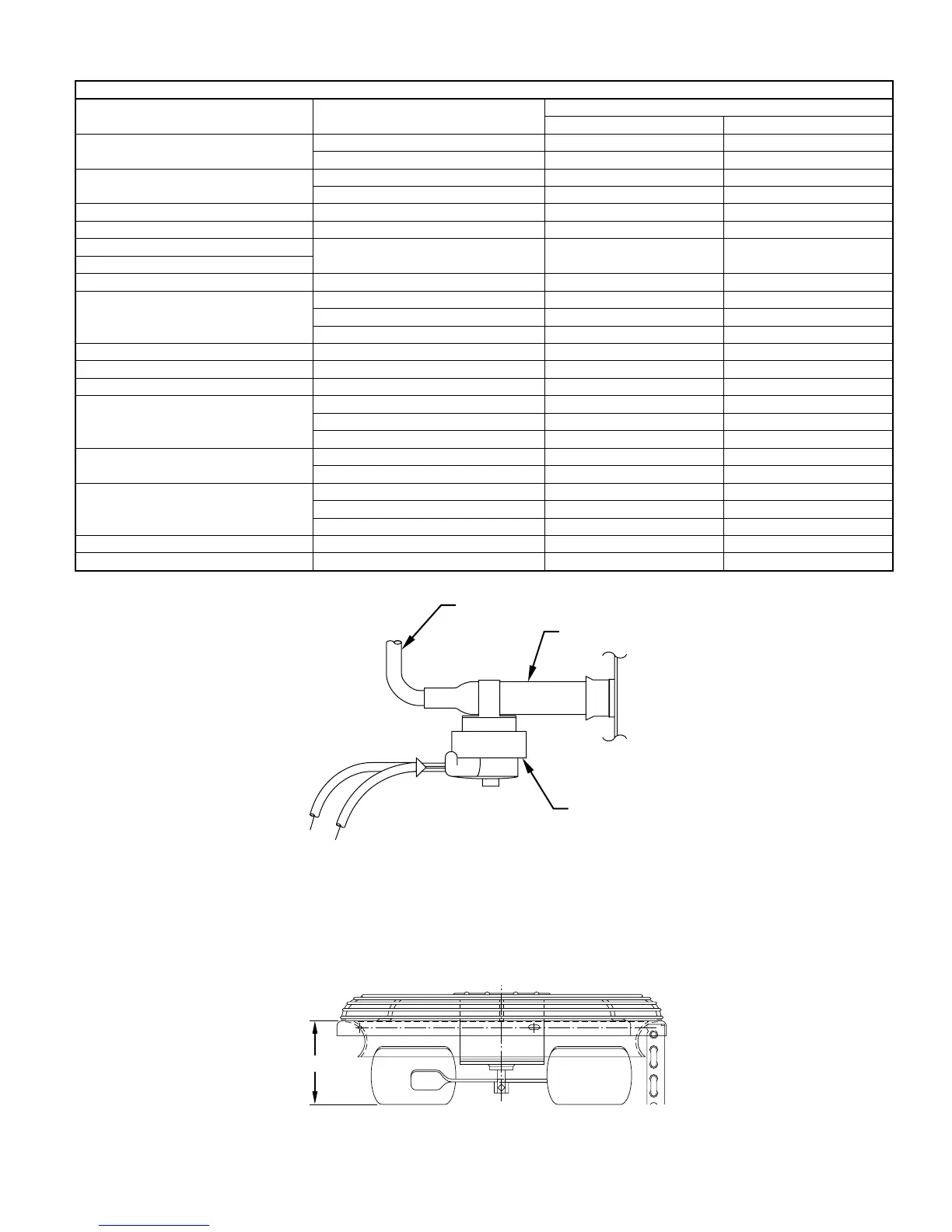

TABLE 12—FAN POSITION
AEROQUIET SYSTEM AND AEROMAX TOP
Fan Motor Part No. Fan Blade Part No.
Dimension A (In.)
Brookside Revcor
HC29GE208
LA01EB023 4–5/32 —
LA01EC019 5–1/8 —
HC31GE230/231
LA01EA026 4–5/8 —
LA01RA015 4–7/8 4–5/8
HC33GE208 LA01EW049 5–1/4 —
HC33GE232 LA01RA015 4–29/32 4–17/32
HC34GE231
LA01RA015 5–5/32 4–25/32
HC34GE460
HC35GE208 LA01EW048 4–15/16 —
HC35GE232
LA01EA025 5–7/8 —
LA01RA024 5–11/32 5–3/32
LA01RA026 5–9/16 4–11/16
HC37GE208 LA01EA025 6–1/8 6–1/8
HC37GE230 LA01EW046 6–5/32 6–1/8
HC38GE221 LA01EA031 7–25/32 —
HC39GE232
LA01EC018 5–11/16 —
LA01RA026 5–1/2 4–3/4
LA01EA036 5–9/16 —
HC39GE234
LA01EA024 5–3/32 4–27/32
LA01EC018 5–1/2 —
HC39GE461
LA01EA036 6–1/16 —
LA01EC018 6–1/4 —
LA01RA026 6–1/16 5–7/32
HC40GE230 LA01EA024 5–9/32 5–11/32
HC40GE461 LA01EA024 5–27/32 5–19/32
Fig. 23—Defrost Thermostat Location
A97517
FEEDER TUBE
DEFROST
THERMOSTAT
STUB TUBE
Fig. 24—Fan Position
A91428
BASKET TOP
A
