7
thermostat and snap apart carefully to separate mounting base from re-
mainder of thermostat.
4. Route thermostat wires through large hole in mounting base. Level mounting
base against wall (for aesthetic value only—thermostat need not be level for
proper operation) and mark wall through four mounting holes. To avoid unin-
tended bending of wall plate plastic, all four screws and anchors must be used.
See Fig. 1.
A07153

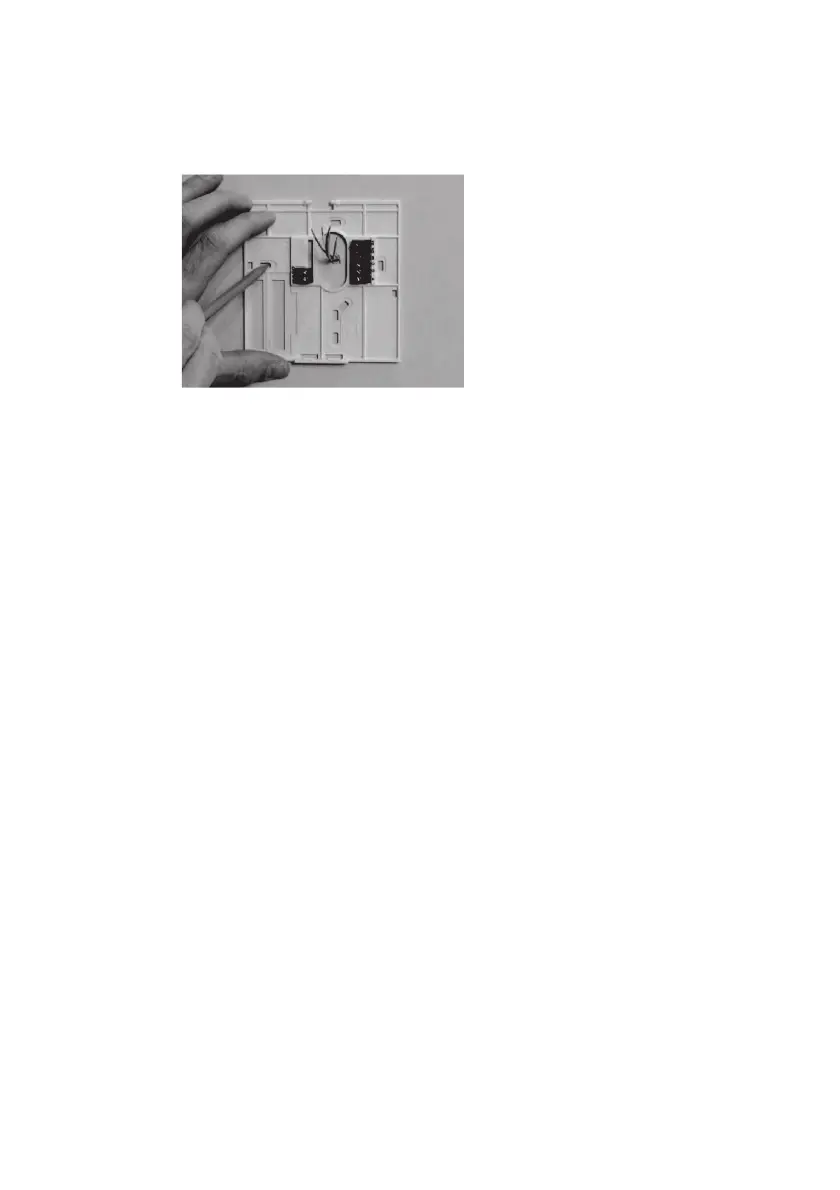

Fig. 1 -- Backplate Mounting
5. Drill four 3/16--in. mounting holes in wall where marked.
6. Secure mounting base to wall with four screws and anchors provided. To
avoid unintended bending of wall plate plastic, all four screws and anchors must
be used. Make sure all wires extend through hole in mounting base.
