Bryant T2-PHP01-A - Wiring Diagrams; Single-Stage System Wiring

25
WIRING DIAGRAMS
*
* C wire not needed for batteries
** Remove jumper when using split power (Indoor and Outdoor units
utilize separate transformers).
Y1
Y/Y2
W
G
Rh
Rc
C
C
G
R
R
W
Y
COM
Y
**
A12246

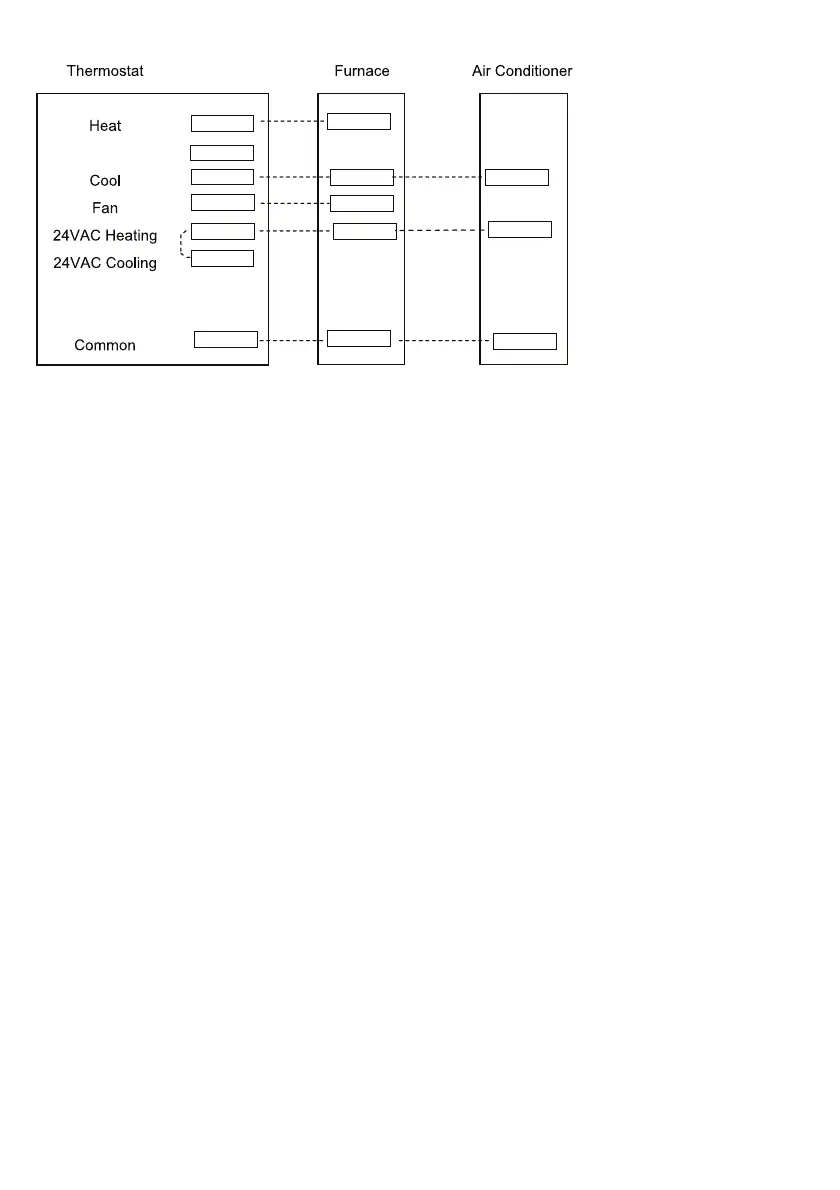

Fig. 5 -- Single Speed A/C Thermostat Typical Installation
