BTCPower 350 KW EVSE Installation manual Draft
Page 11 of 23

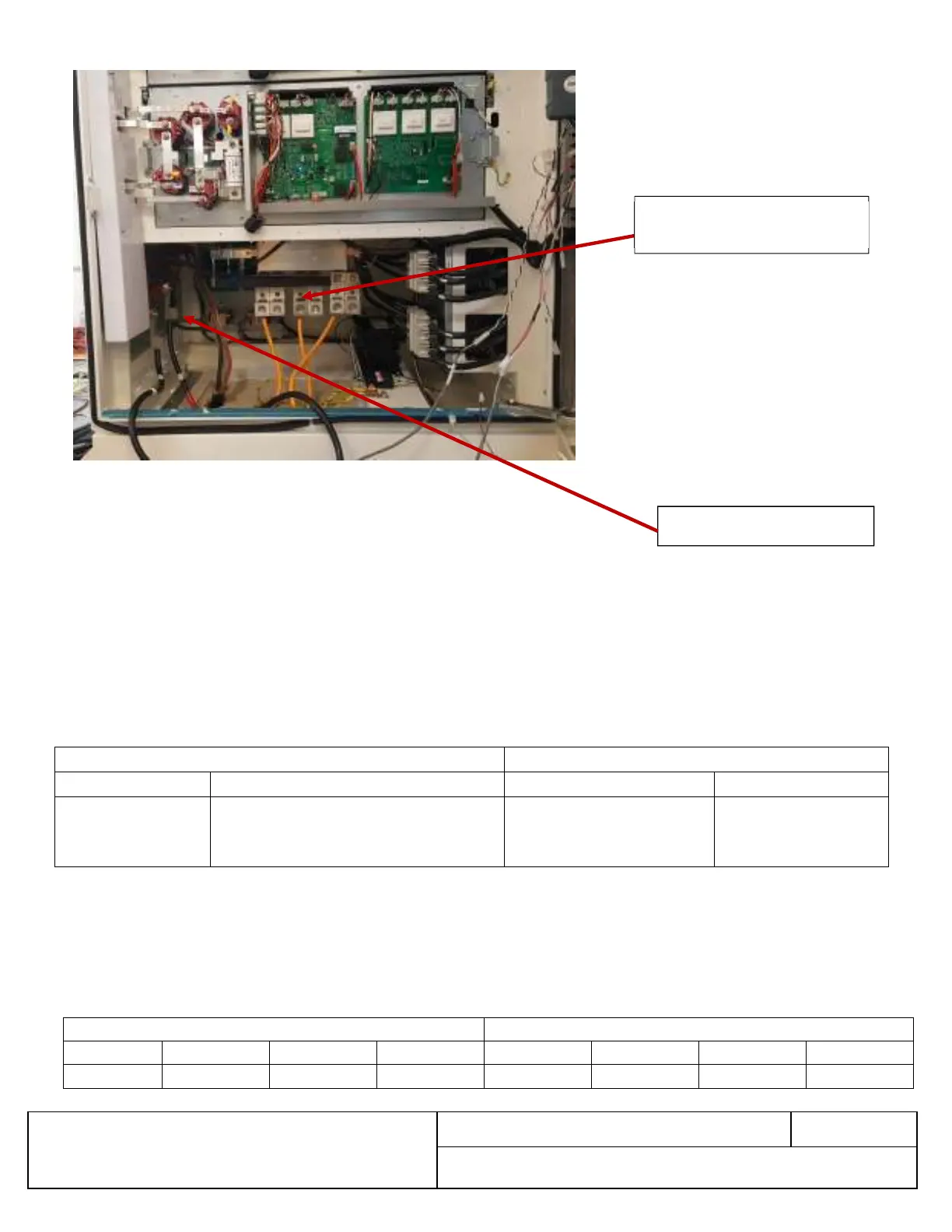

Fig. 1 AC Input
DC - Output terminal block (from converter to dispenser – single and dual high output
configuration):
From power stages
Wire range Openings per pole (terminal lug)
Terminal Lug NSI Ind. PN Torque requirement
1000-500 2 1000L2 550 LB-IN
DC Output Terminal Lugs, Channel A and B.
Torque requirement per UL E-file Mersen MPDB63153
Terminal block primary side (from converter) Terminal block secondary side (to dispenser)
Wire In lbs Wire In lbs Wire In lbs Wire In lbs
2/0-#6 120 #8-#14 50 2/0-#6 120 #8-#14 50
Output Connections
Input Connections
