BTCPower 350 KW EVSE Installation manual Draft
Page 13 of 23
Rating of all other components except H & S liquid
cooled cable are for continuous 500 Amp operation.
Minimum Current (In current mode) 5 Amps
DC power input voltage range 50-920 VDC
DC power input current range 5 Amps – 500 Amps
Outdoor enclosure NEMA 4, IP 54 equivalent
Chilled 50/50 ethylene glycol 20 C input Temperature, Flow rate = 10 l/min.
Weight 600 lbs.
350 / 50 KW Dispenser DC input terminal block and wire gage:
LINE SIDE PART NUMBER
WIRE RANGE OPENINGS PER POLE PART NUMBER AMPERE
RATING
Units MCM (Compression Lug)
1000-250 2 2-1000L2 545

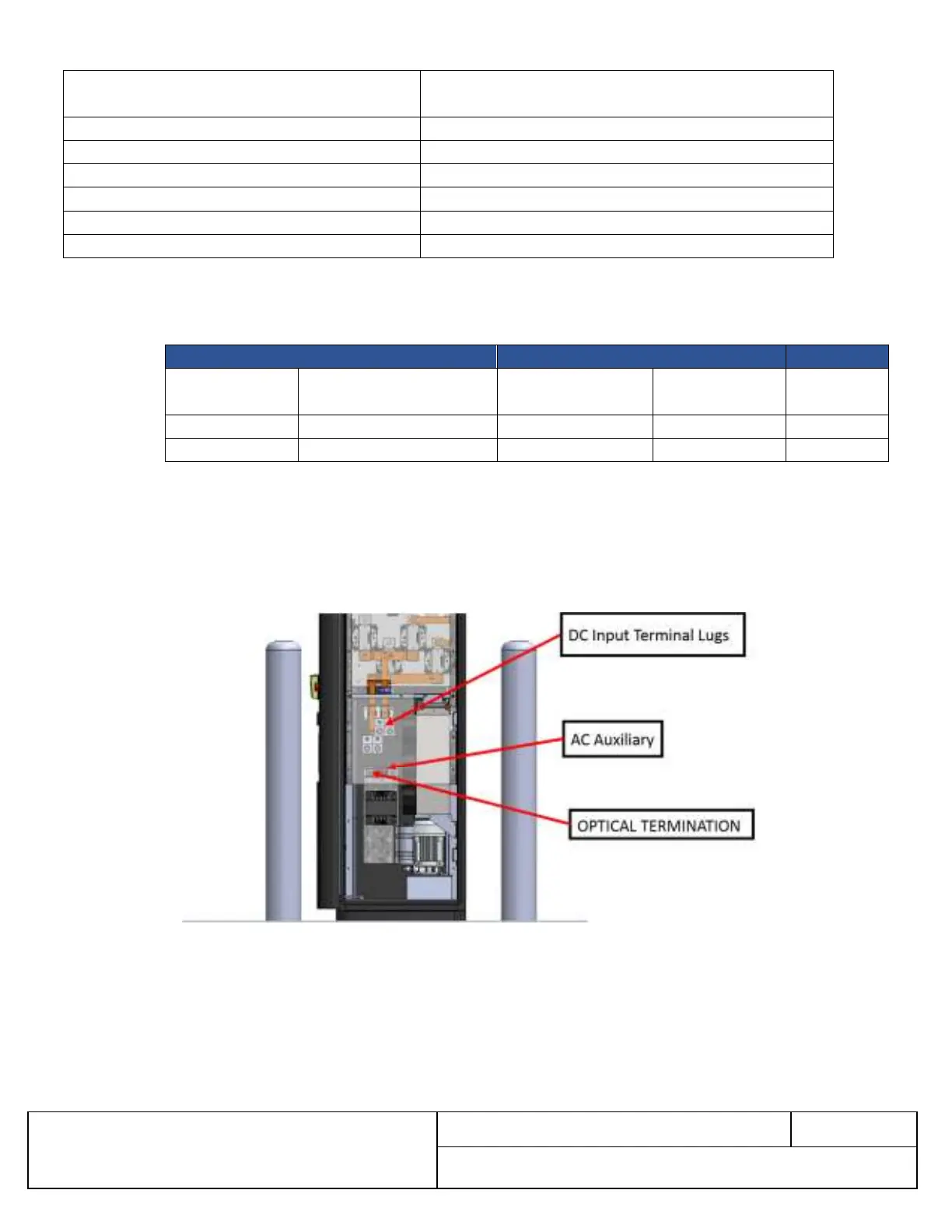

Fig.2DispenserDCInput,Auxiliary,OpticalConne
ction,Auxiliary
