2
343081
19/07/2016BT00880-b-
50 cm
140 cm
(105°)
160 cm
85 cm
(80 °)
160 –165 cm
135 –140 cm
EN
LINEA 3000
Colour video entrance panel with wide
angle camera

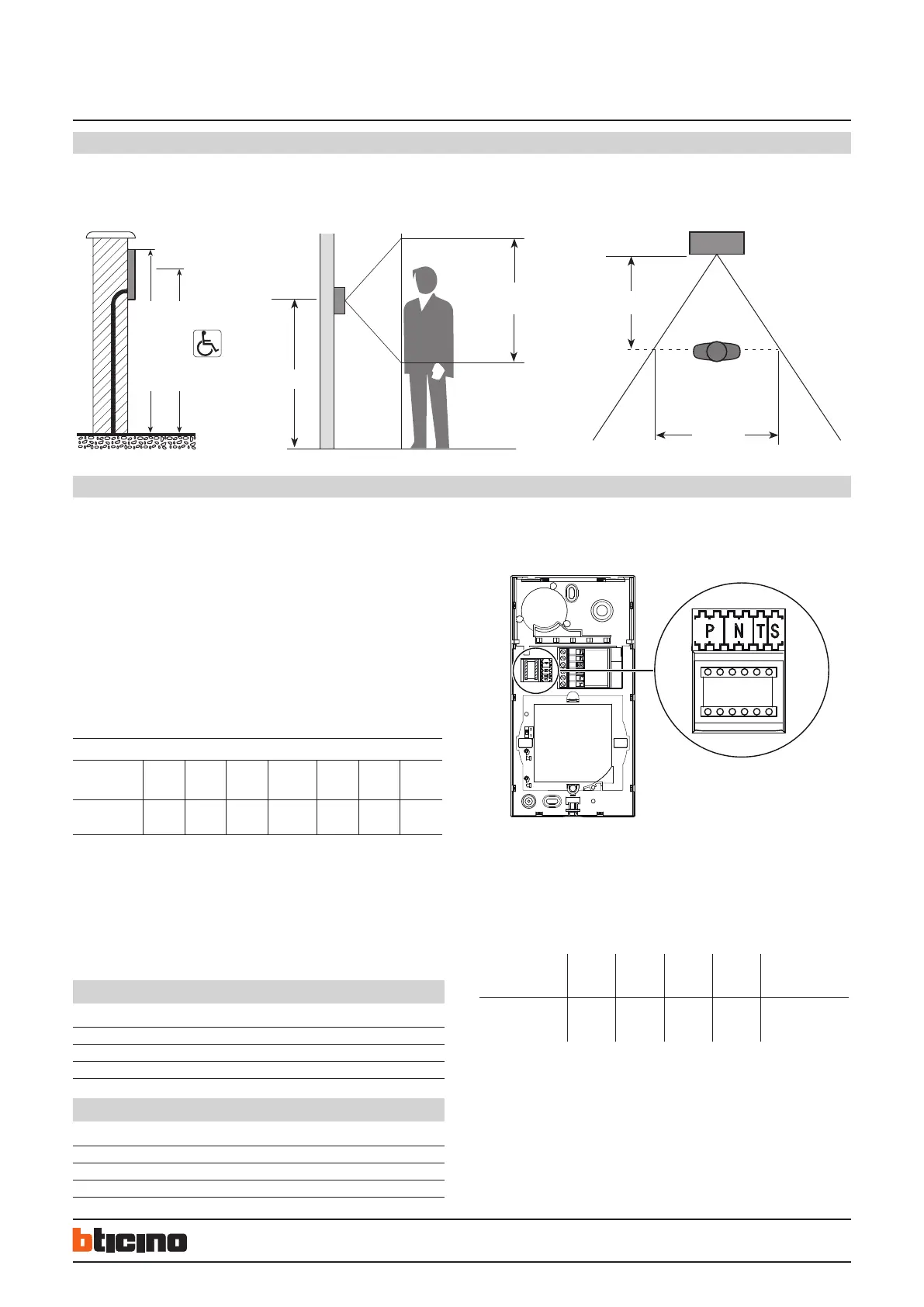

Configuration
The device must be (only physically) configured as follows:
P - entrance panel number
The configurator connected to the P housings of the speaker module assigns to the same
an identification number within the system.
The numbering of the entrance panels must always start from P=0.
The entrance panel configured with P=0 must be a common (or main) entrance panel.
N - call number
Assigns the correspondence between the entrance panel pushbuttons and the audio
handsets or video handsets. In the common entrance panels made with pushbutton
modules, 1 must be inserted in N of the speaker module. The number of the first riser
handset must be inserted in the local entrance panels in N.
S – type of call signal
S configuration sets the internal unit call tone and the enabling/disabling of the door
lock release notification tone generated by the entrance panel.
One can thus differentiate the calls from different entrance panels.
Configurator 0 1 2 3
Type of bell 2-tone 2-tone 2-tone One-tone
1200Hz 1200Hz 1200Hz 1200Hz
600Hz 0 Hz 2400Hz
Table (with door lock tone enabled) for Sprint L2 internal unit call signal
Configurator 4 5 6 7
Type of bell 2-tone 2-tone 2-tone One-tone
1200Hz 1200Hz 1200Hz 1200Hz
600Hz 0 Hz 2400Hz
Table (with door lock tone disabled) for Sprint L2 internal unit call signal
Configurator 0 1 2 3
Door lock tone
enabled
Configurator 4 5 6 7
Door lock tone
disabled
In one-family systems S= 9 (door lock tone enabled) or S= 8 (door lock tone disabled)
configure the General Call and make the internal unit ring, as with S= 0 or S= 4
For the Classe 100 and Classe 300 internal units, the S configurator associates the
entrance panel to the bell programmed in the internal unit.
* Operation as pushbutton for 10 sec. max, after which standby mode is activated.
To extend operation time over 10 seconds, use actuator 346210 configured with
MOD=5.
T - door lock relay timing
configurator number
0= No
configurator
1 2 3 4* 5 6 7
4 sec. 1 sec. 2 sec. 3 sec. pushbutt 6 sec. 8 sec. 10 sec.
Installation and camera shooting range
The camera must not be installed in front of large light sources, or in places where the subject viewed remains in deep shadow. In poor lighting conditions cameras with colour are less
sensitive than black/white cameras. An extra lighting source should be added in poorly lit rooms.
